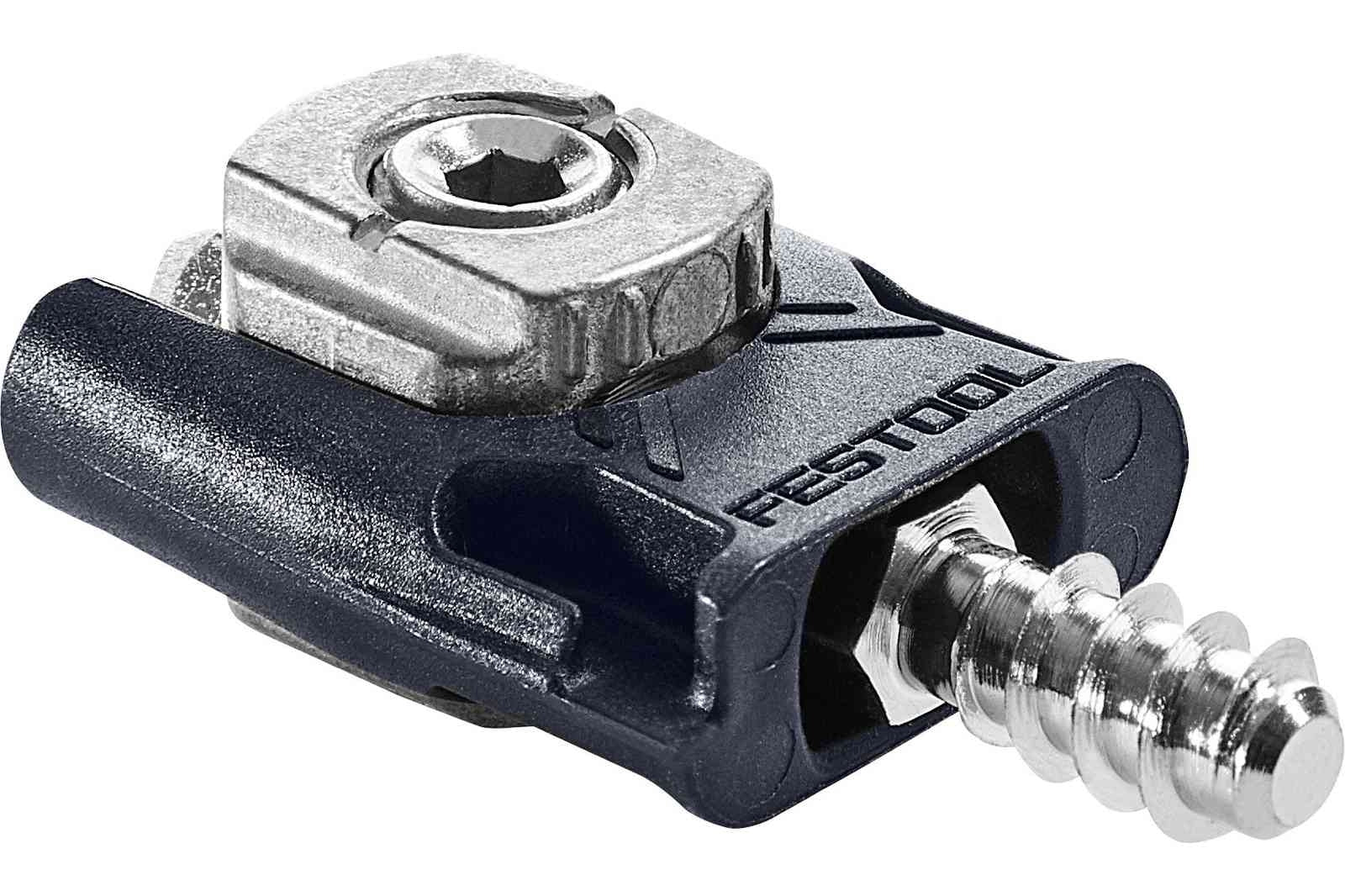

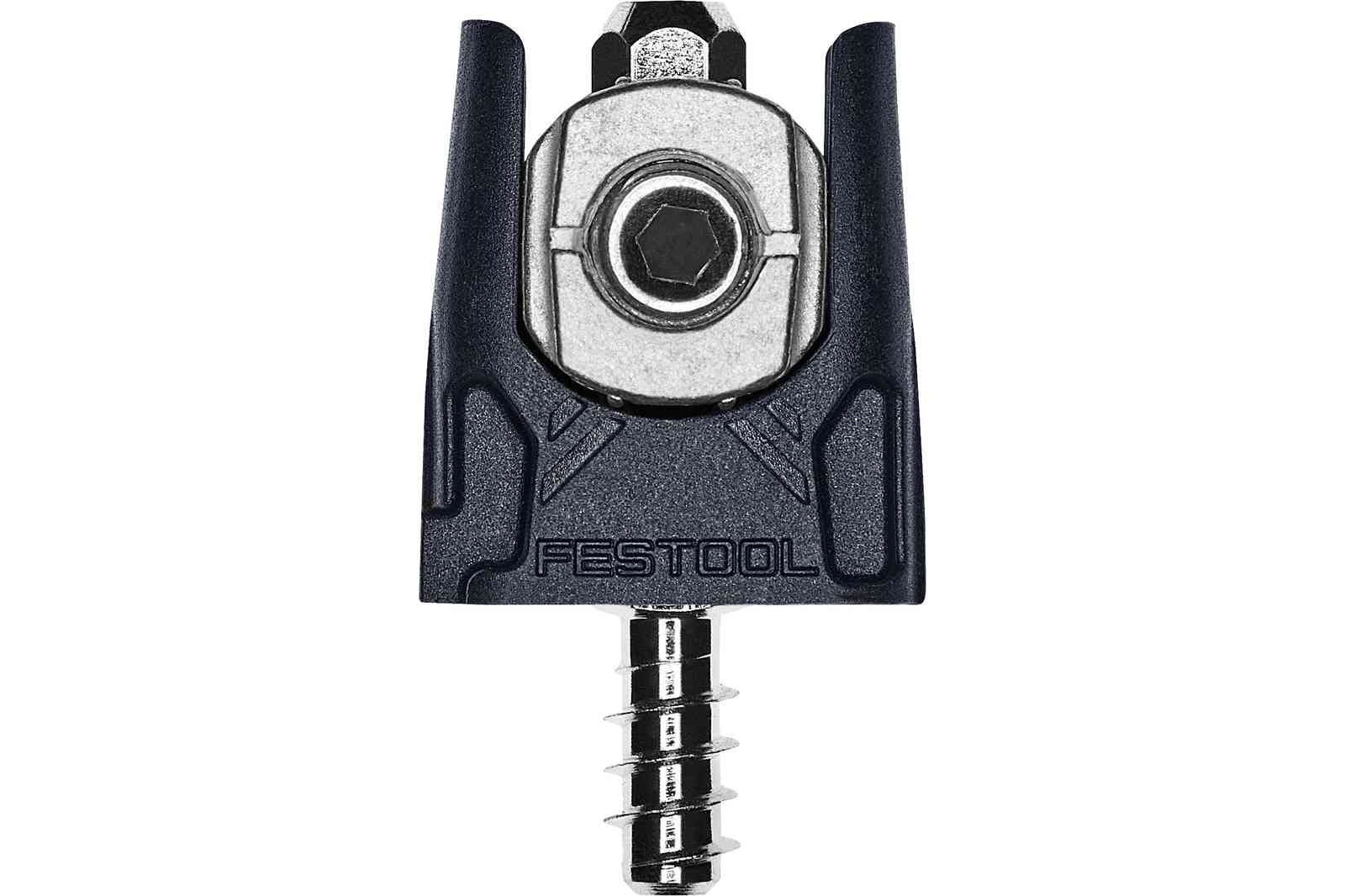

203168, Festool Corner connection KV-LR32 D8/50

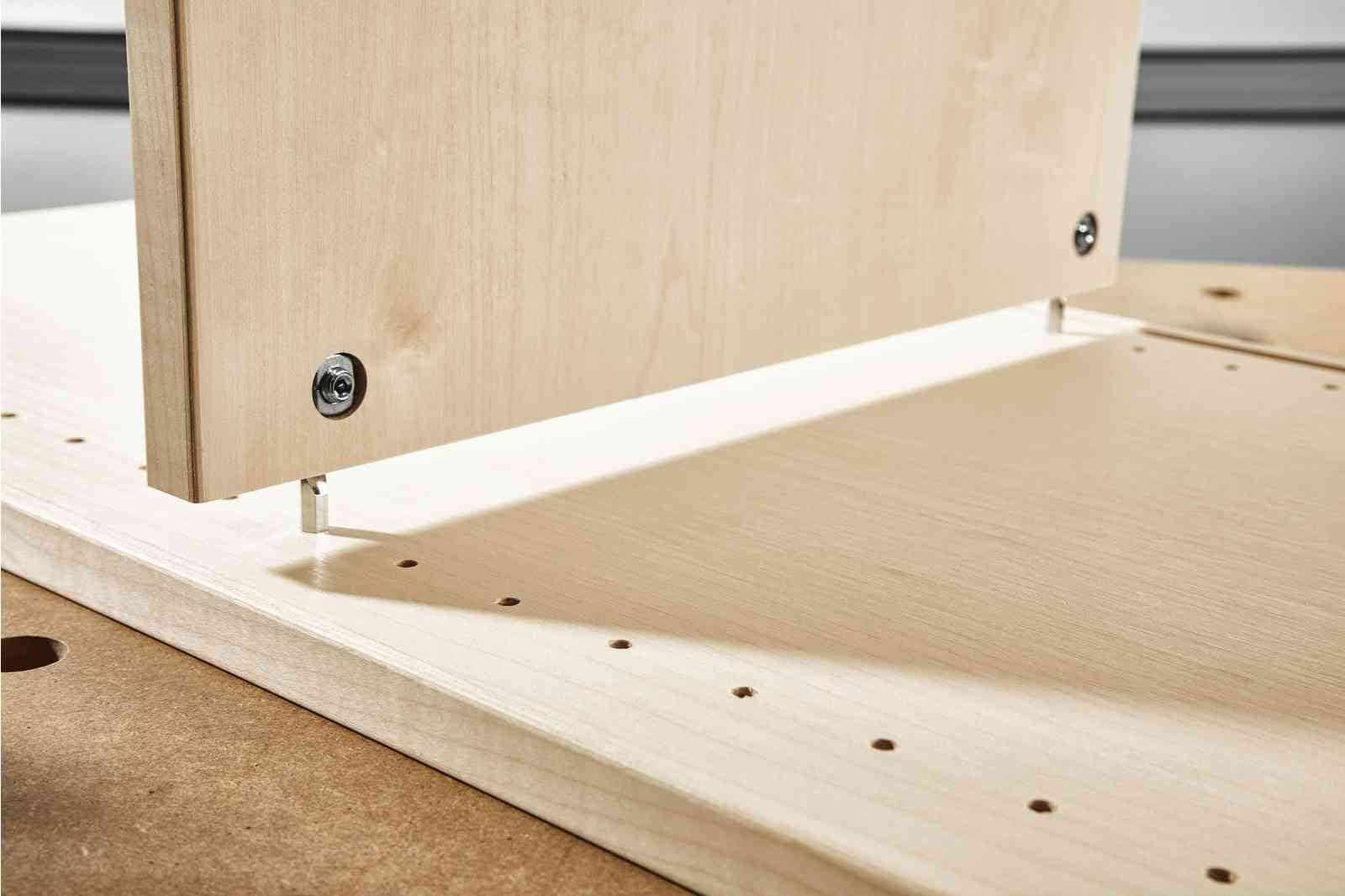

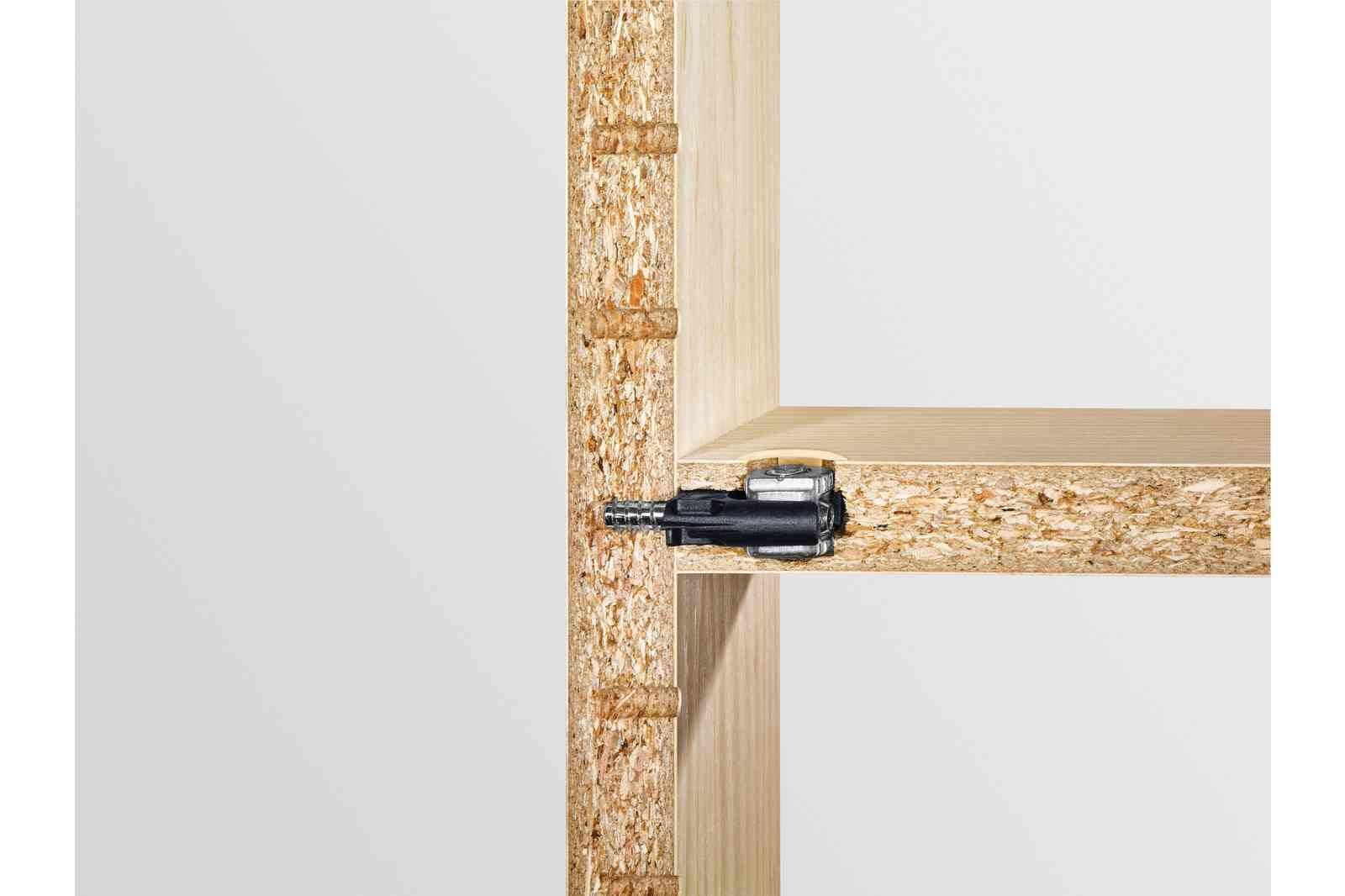

The DOMINO/LR 32 KV-LR 32 D8/50 connector is positioned both in the cupboard panel in a 5 mm hole in the series of holes and the base of the structure with the DOMINO jointer DF 500; for 50 corner joints with the DF 500 and drilling series of holes

Features:

• The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
• The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
• The flush-screwed fixture elements protect each furniture component from being scratched
• Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
• The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm
• for 50 corner joints with the DF 500 and drilling series of holes

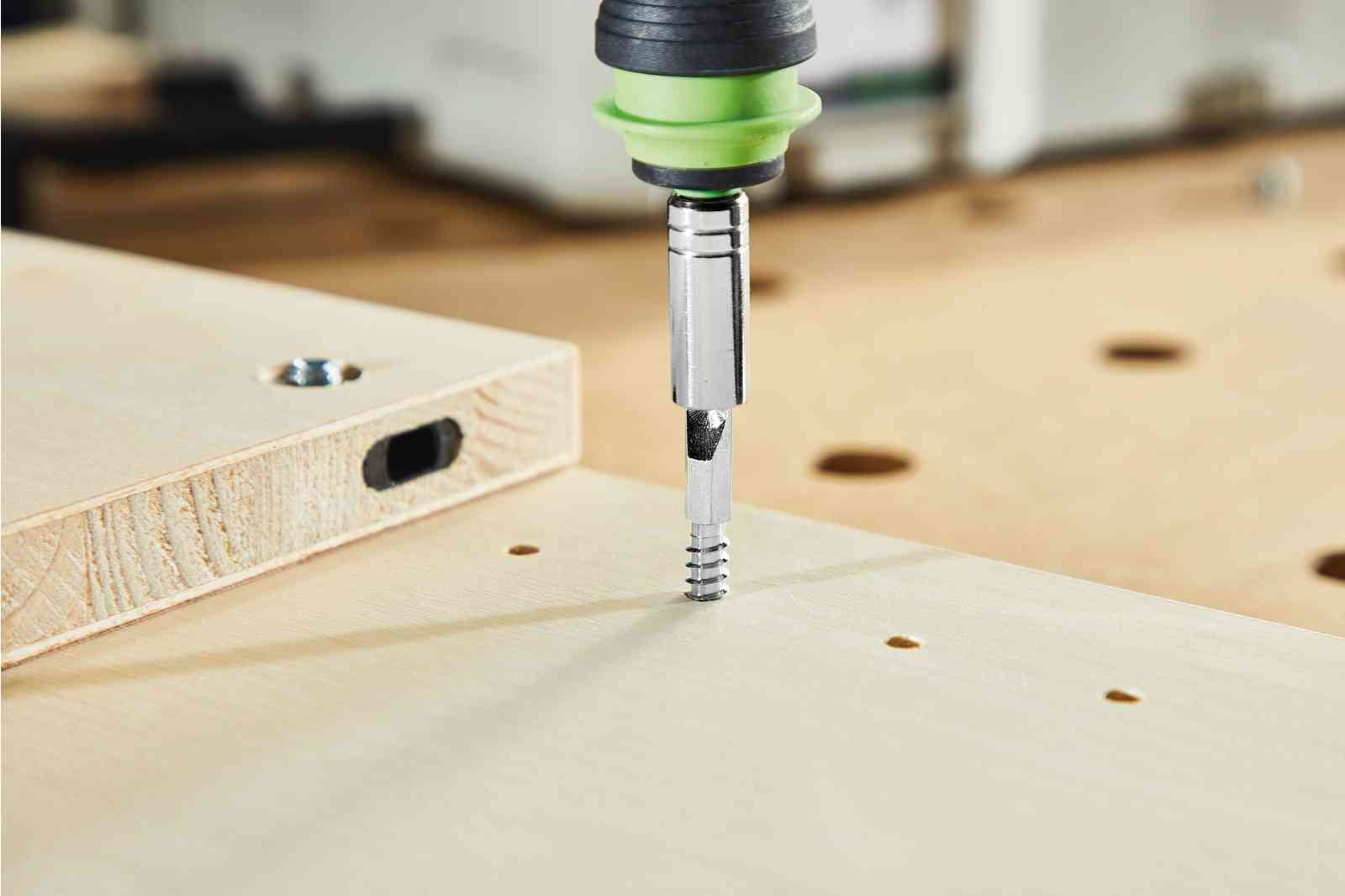

• the DOMINO/LR 32 KV-LR 32 D8/50 connector is positioned both in the cupboard panel in a 5 mm hole in the series of holes and the base of the structure with the DOMINO jointer DF 500

Specifications:

• Joint fixture (8 mm DOMINO dowel cross-cuts) D8
• Panel thickness 18 – 28 mm
• DOMINO routing depth for base part 28 mm
• Drilling diameter for Euro bolt 5 mm
• Drilling diameter in base part 15 mm

Includes:

• Split anchor
• 50x Bolt with Euro thread for drilling series of holes
• 50x Plastic trays
• 50x Cross anchor with threaded pin
• without cover caps
• in carton
