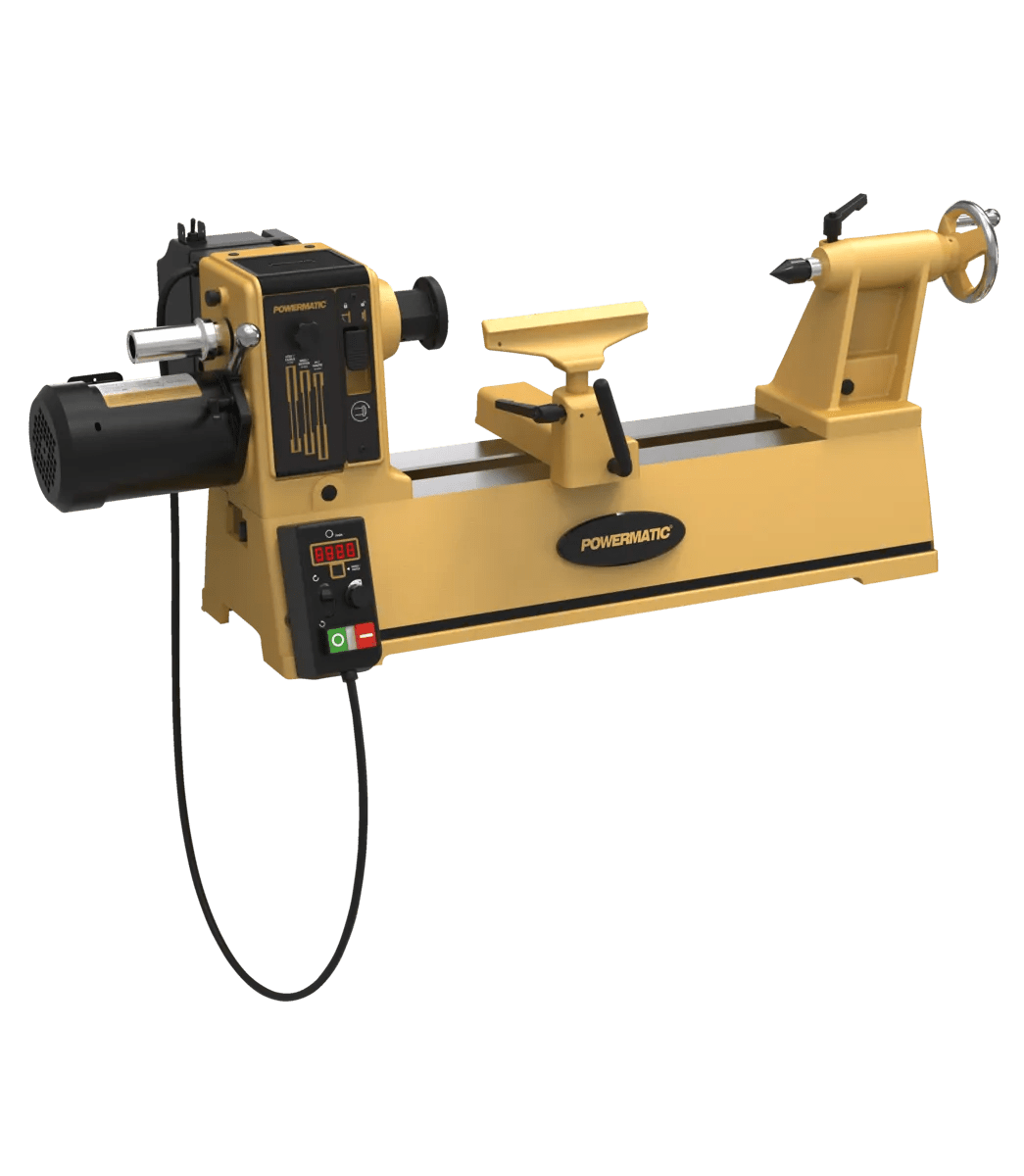

Powermatic PM2014 Lathe 1792014
Powermatic PM2014 Lathe 1792014
Couldn't load pickup availability
Details
Details
The Powermatic PM2014 benchtop lathe offers professional woodturning performance in a compact footprint. Using an inverter system, this lathe delivers 1 HP of smooth, variable-speed performance while operating from a standard 120V single-phase power source. It provides a 14-inch swing over the bed and 20 inches between centers, with expansion capability through an optional bed extension. The sliding headstock allows repositioning for improved access during outboard turning, while the cast iron bed helps dampen vibration when working with unbalanced stock. A magnetic, repositionable control box displays digital spindle speed and indexing information clearly, giving turners precise control throughout the turning process.

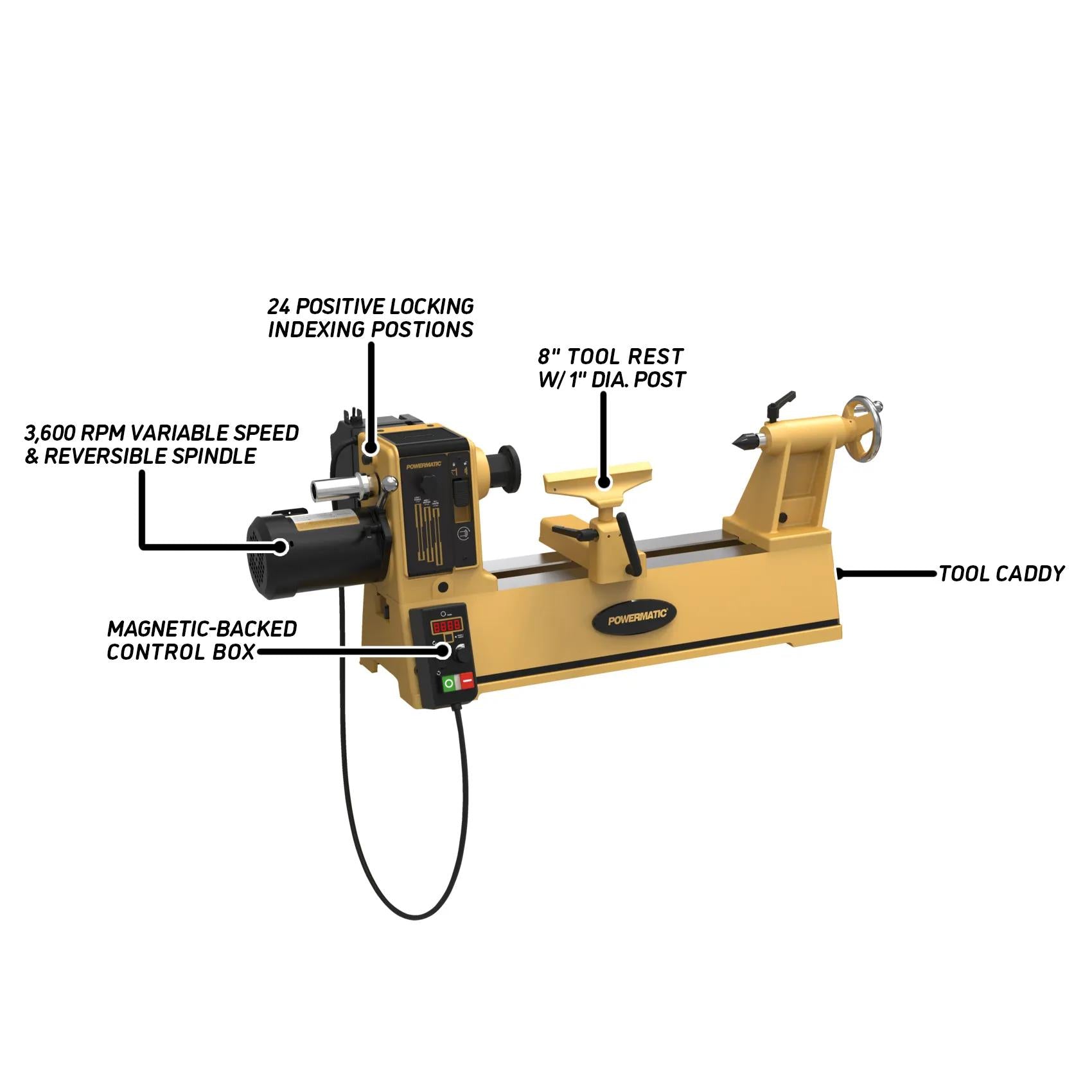

Features & Benefits
- Inverter-driven 1 HP motor delivers smooth variable-speed performance while operating from a standard 120V single-phase power source
- 14-inch swing over the bed and 20 inches between centers provide capacity for bowls, spindles, and a wide range of turning projects
- Variable speed range from 15 to 3,600 RPM allows precise speed selection for roughing, finishing, and delicate turning operations
- Sliding headstock can be repositioned along the bed to improve access and control when turning larger or outboard workpieces
- Cast iron bed construction helps dampen vibration, improving stability and surface control when turning unbalanced stock

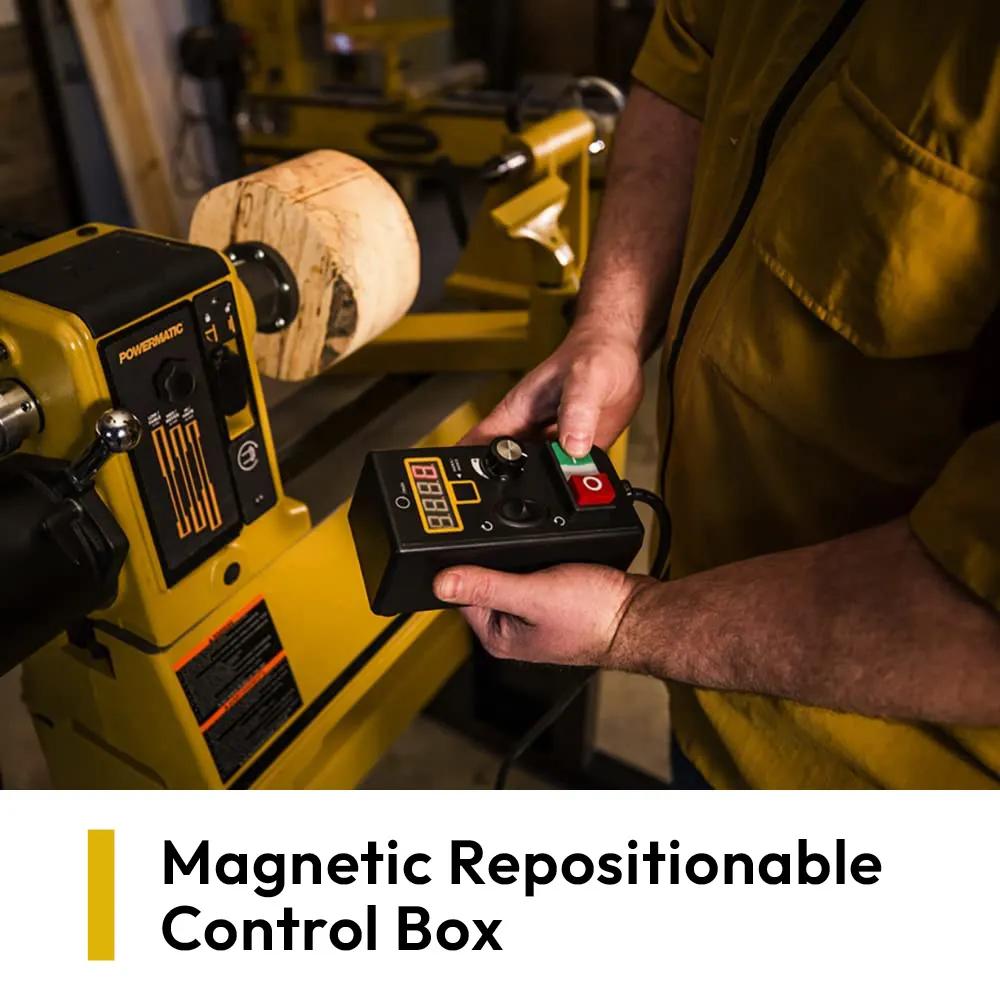

- Magnetic repositionable control box with digital display provides clear spindle speed and indexing readouts within easy reach

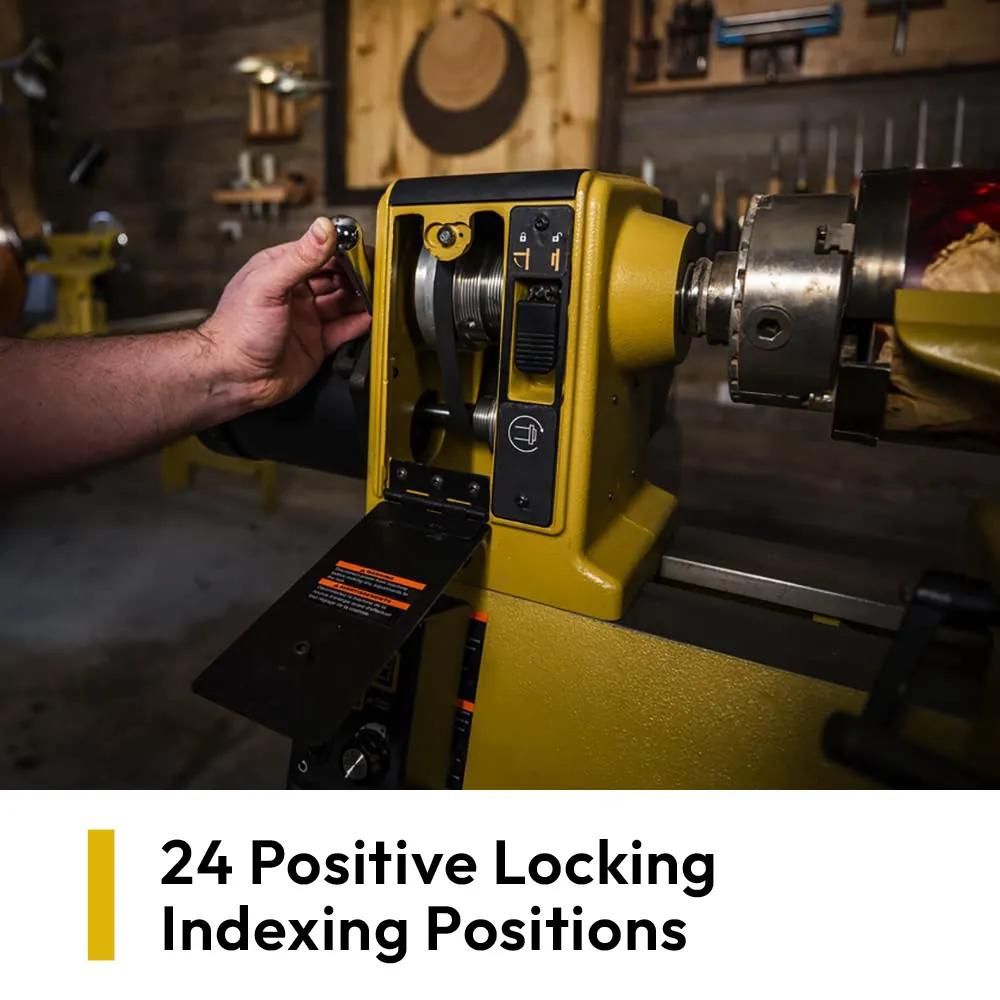

- 24-position positive locking spindle indexing supports repeatable layout work such as fluting or decorative detailing
- Ergonomic chrome-trimmed handwheels provide smooth, comfortable control when adjusting the tailstock or tool positioning

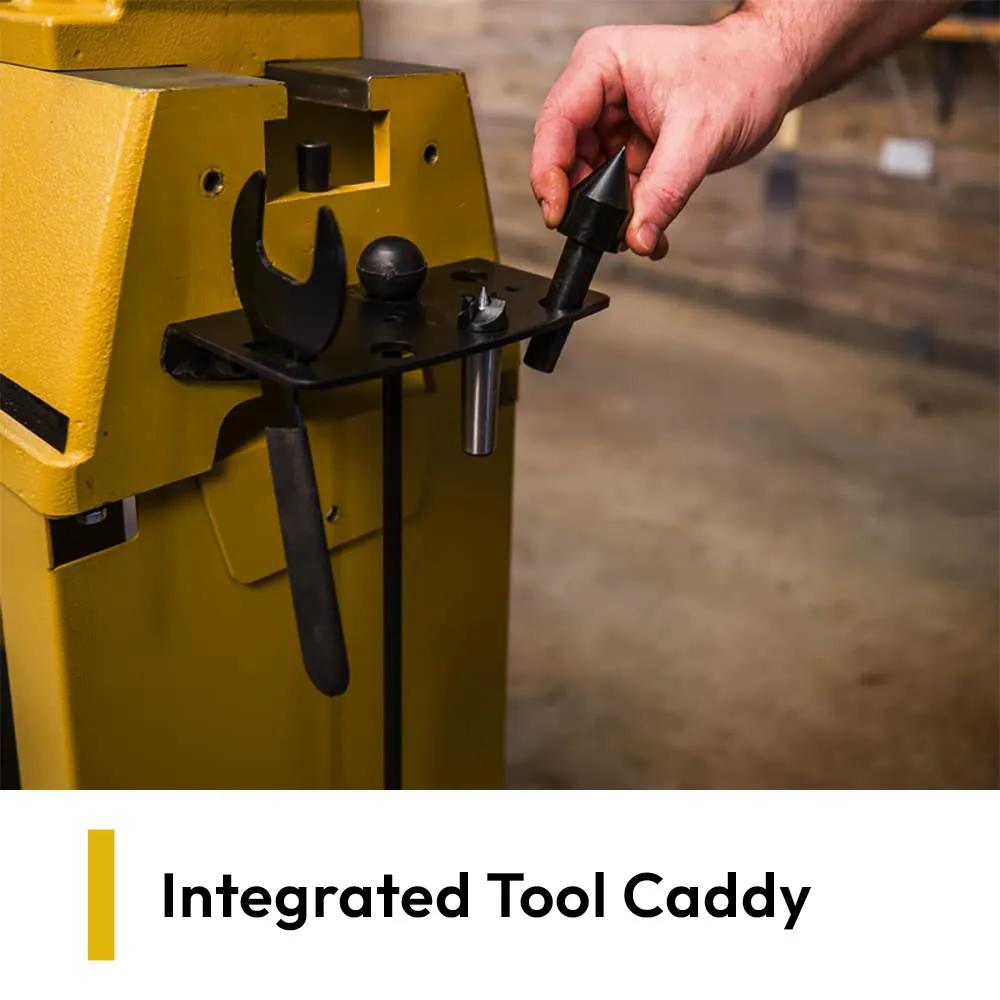

- Integrated tool caddy keeps centers, wrenches, and accessories organized and readily accessible during turning

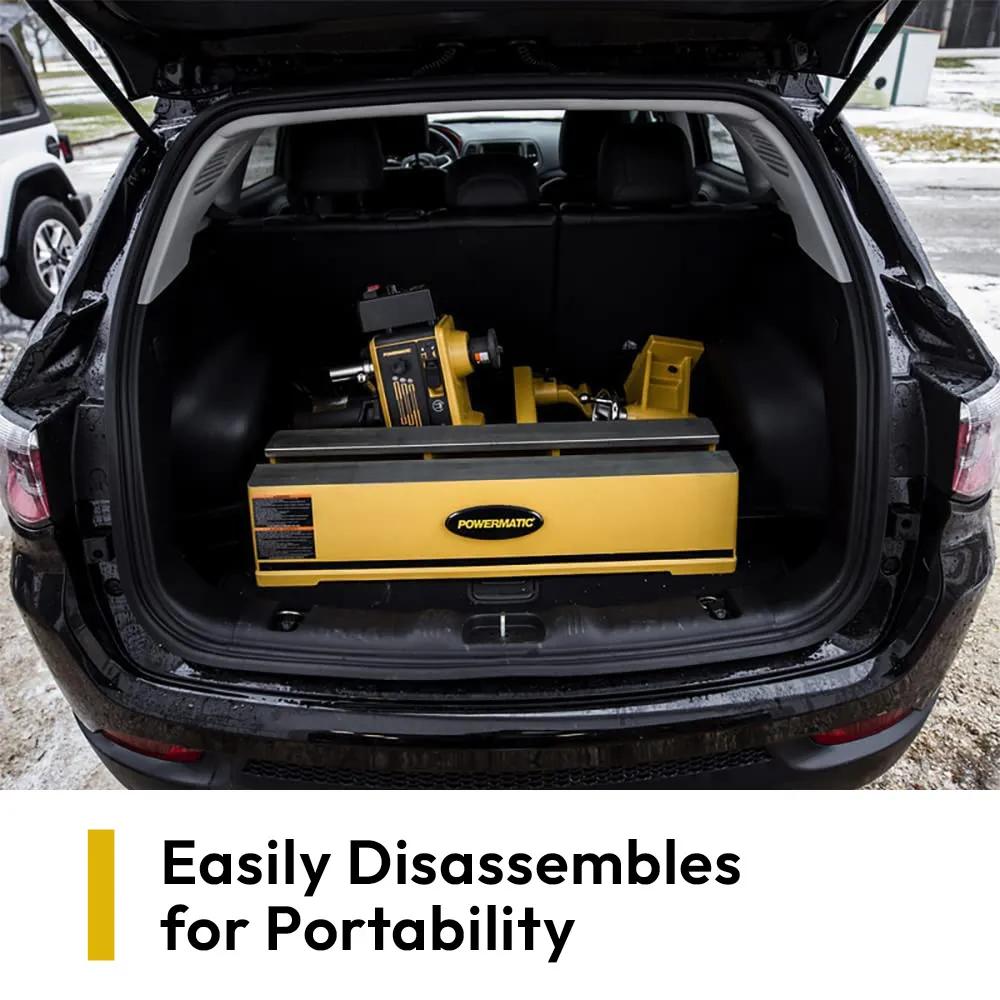

- Modular design allows the lathe to be disassembled easily for improved portability and flexible shop setup
Specifications
Specifications
| assembled dimensions | 52 in. x 24 in. x 18 in. |
| construction | Cast Iron |
| distance between centers | 19-1/4 in. |
| headstock movement | Sliding |
| horse power hp | 1 |
| input power | 220V Single Phase |
| motor amps | 3 |
| motor hp | 1 |
| motor phase | Three |
| motor voltage v | 230 |
| number of indexing positions | 24 |
| prewired voltage v | 220 |
| quill taper | MT-2 |

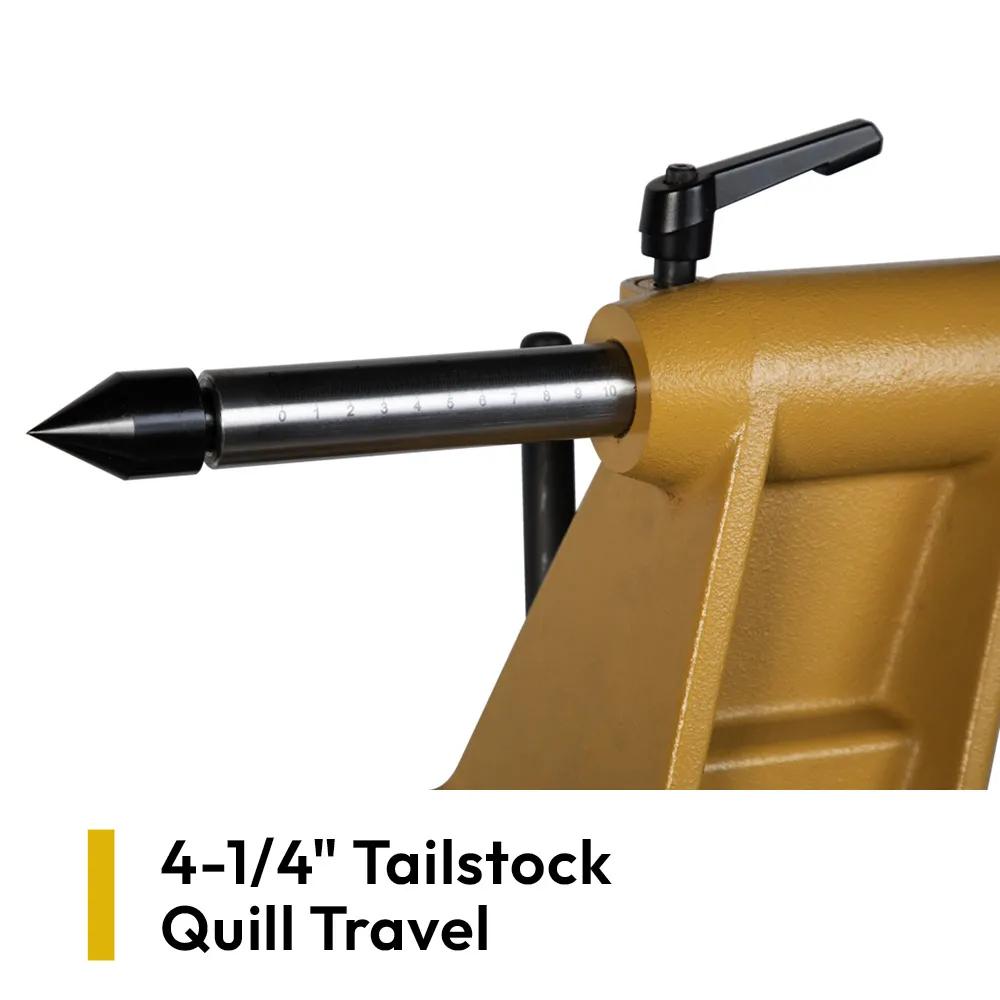

| quill travel in | 4-1/4 in. |
| recommended circuit size amps | 20 |
| speed range | 15-900; 30-1800; 60-3600 |
| spindle bore in | 3/8 in. |
| spindle speeds | 15-900; 30-1800; 60-3600 |
| spindle taper | MT-2 |
| spindle thread in tpi | 1-1/4 in. x 8 TPI |
| style type | Bench Top |
| swing over bed in | 14.25 in. |
| tool rest | 8 in. Wide - 1 in. Post |
| Gross Weight | 205.7 |
| Net Weight | 183 |
