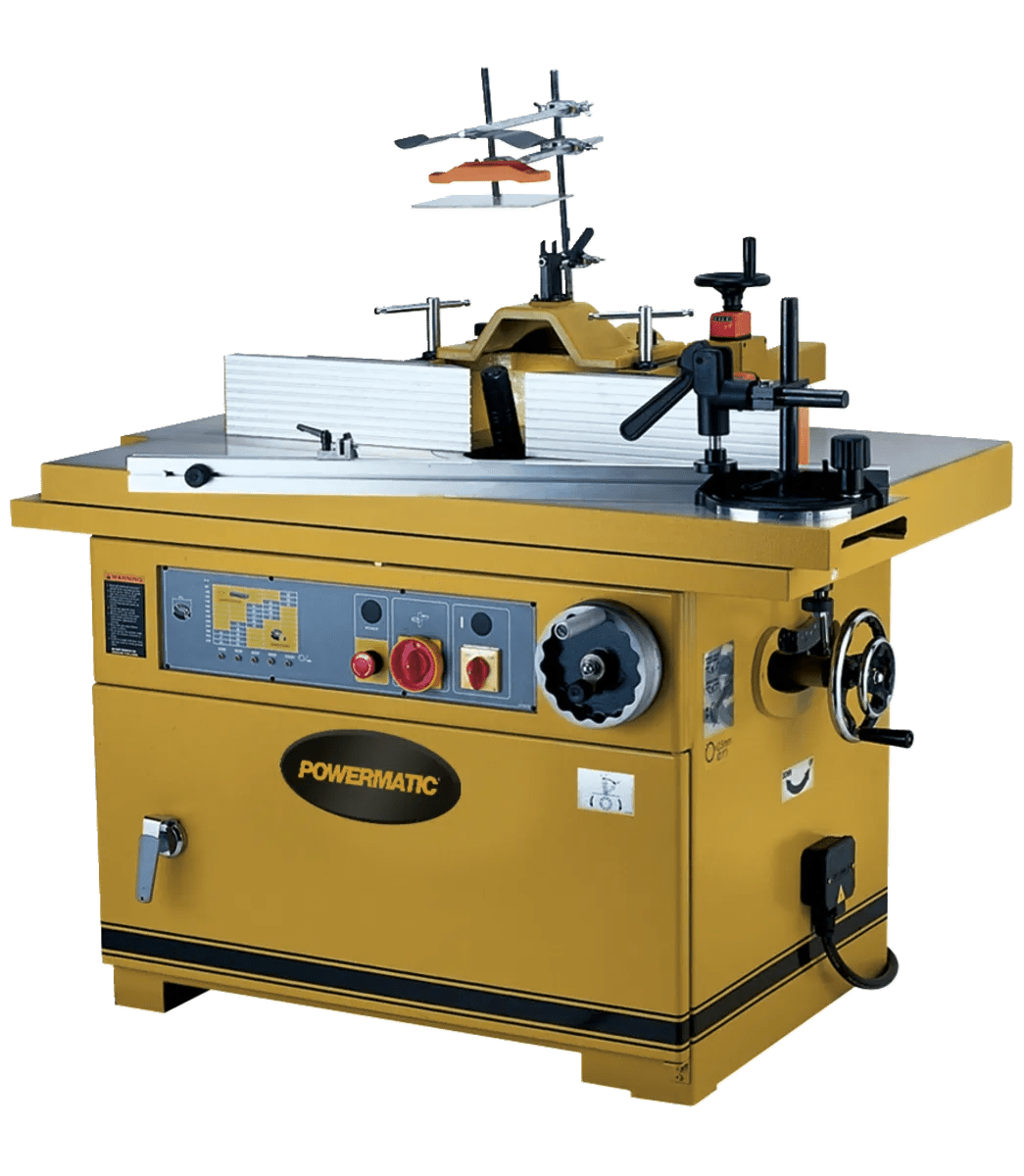

Powermatic TS29 Shaper with Sliding Table, 7.5HP, 3PH, 230/460V 1791284
Powermatic TS29 Shaper with Sliding Table, 7.5HP, 3PH, 230/460V 1791284
Couldn't load pickup availability
Details
Details
The Powermatic TS29 Shaper is built for professional woodworking operations that require increased power capacity, precision control, and material handling support for larger workpieces. Equipped with a 7.5 HP motor and an integrated sliding table, this shaper is well suited for shaping, profiling, and edge-forming applications where accuracy and repeatability are critical.
The sliding table provides smooth, controlled workpiece movement, helping improve safety and consistency during complex shaping operations. A rigid machine platform and precision-machined components support stable operation and reliable results throughout extended production runs. Operating on 230V power, the TS29 Shaper is designed for professional shops that need higher output performance without sacrificing control or finish quality.
Designed for commercial workshops and production facilities across North America, the Powermatic TS29 Shaper delivers dependable performance for demanding woodworking applications. For product information, availability, or ordering assistance, contact Powermatic at 855-657-GOLD.
Features & Benefits

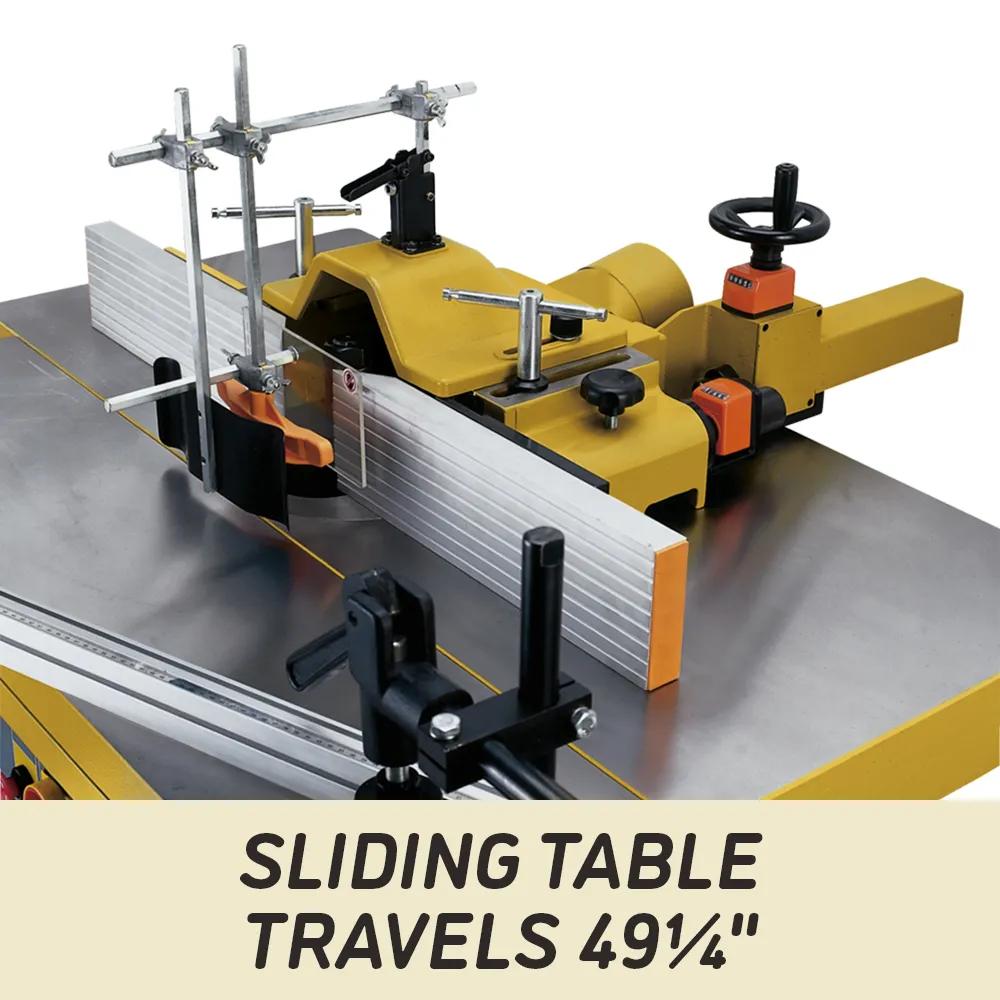

- Integrated sliding table supports controlled material handling for larger workpieces
- 7.5 HP motor provides increased power for heavy shaping and profiling applications
- Stable machine platform helps maintain accuracy during extended operation
- Smooth table travel supports consistent feed and improved finish quality
- Precision components promote repeatable results across production workflows
- Designed for professional shops and high-capacity woodworking environments
Specifications
Specifications

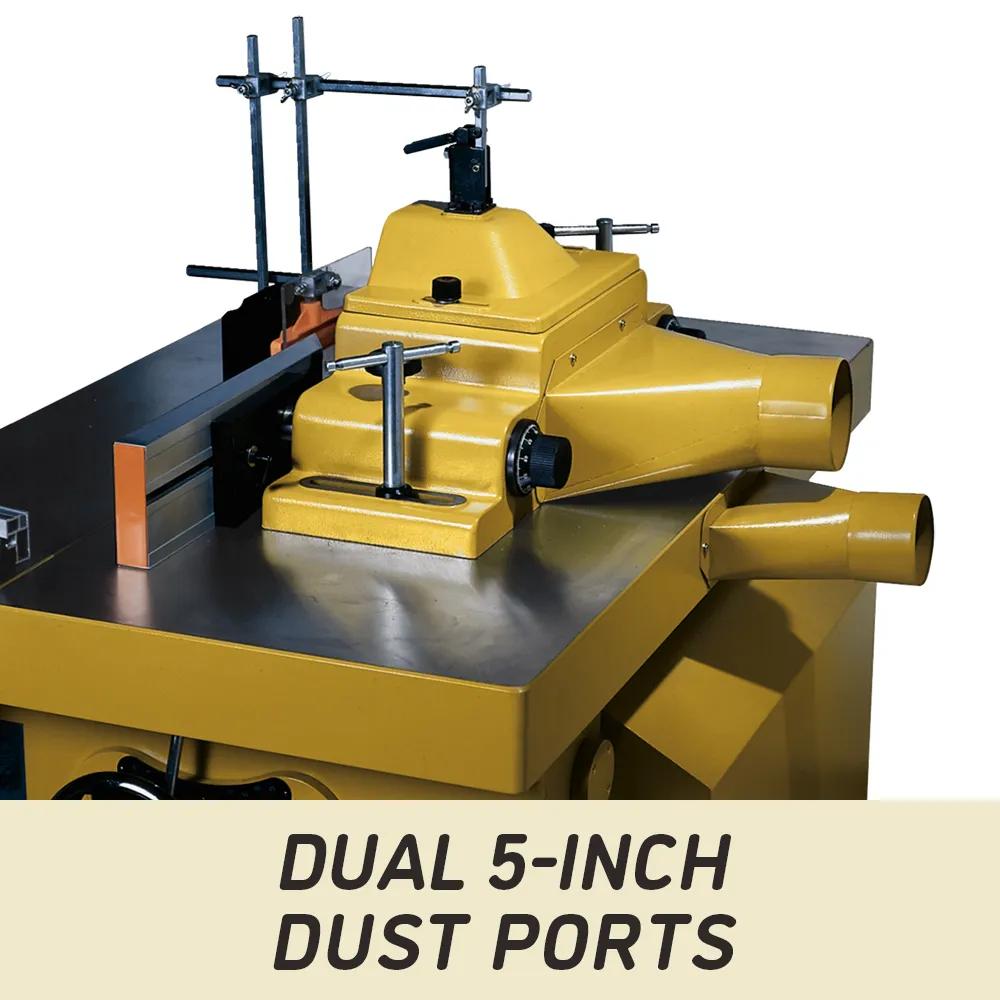

| dust port outside diameter in | 5 in. |

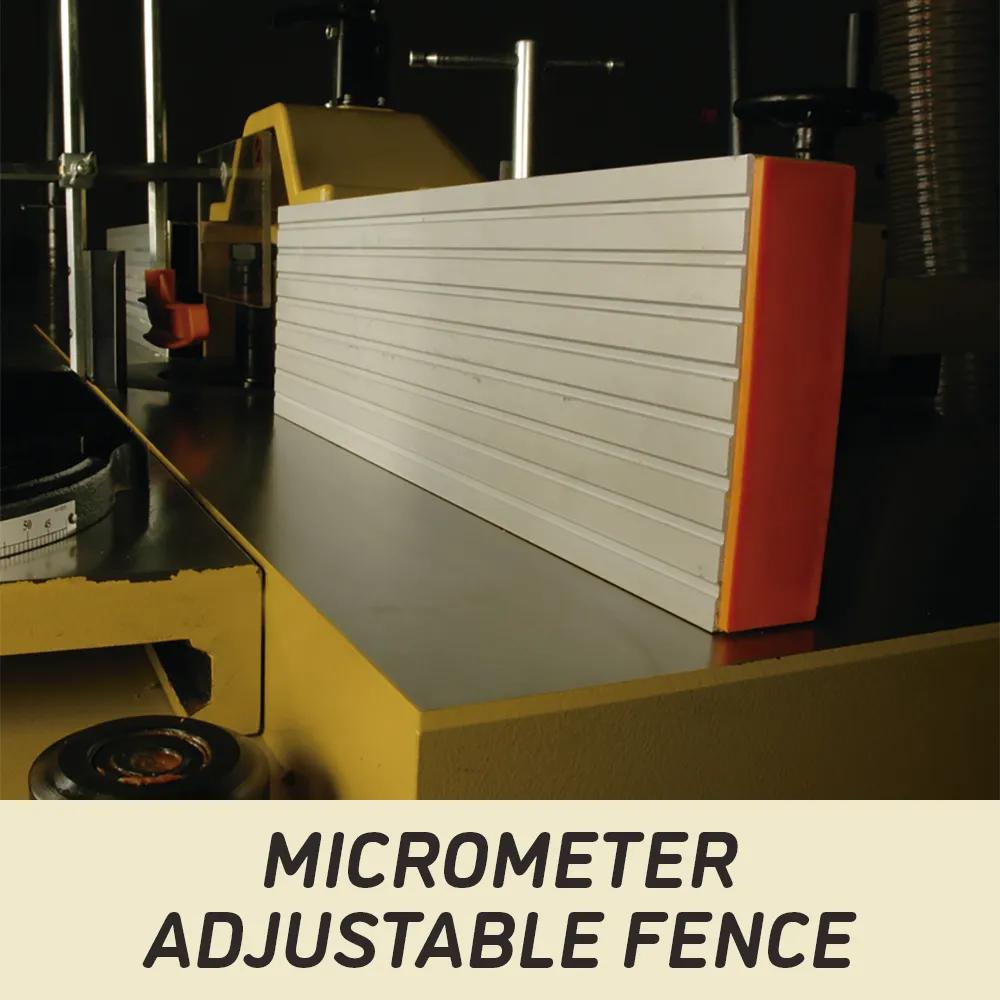

| fence size l x h in | 46 in. x 5 in. |
| horse power hp | 7.5 |
| maximum diameter cutter above table | 12 in. |
| maximum diameter cutter below table | 9 in. |

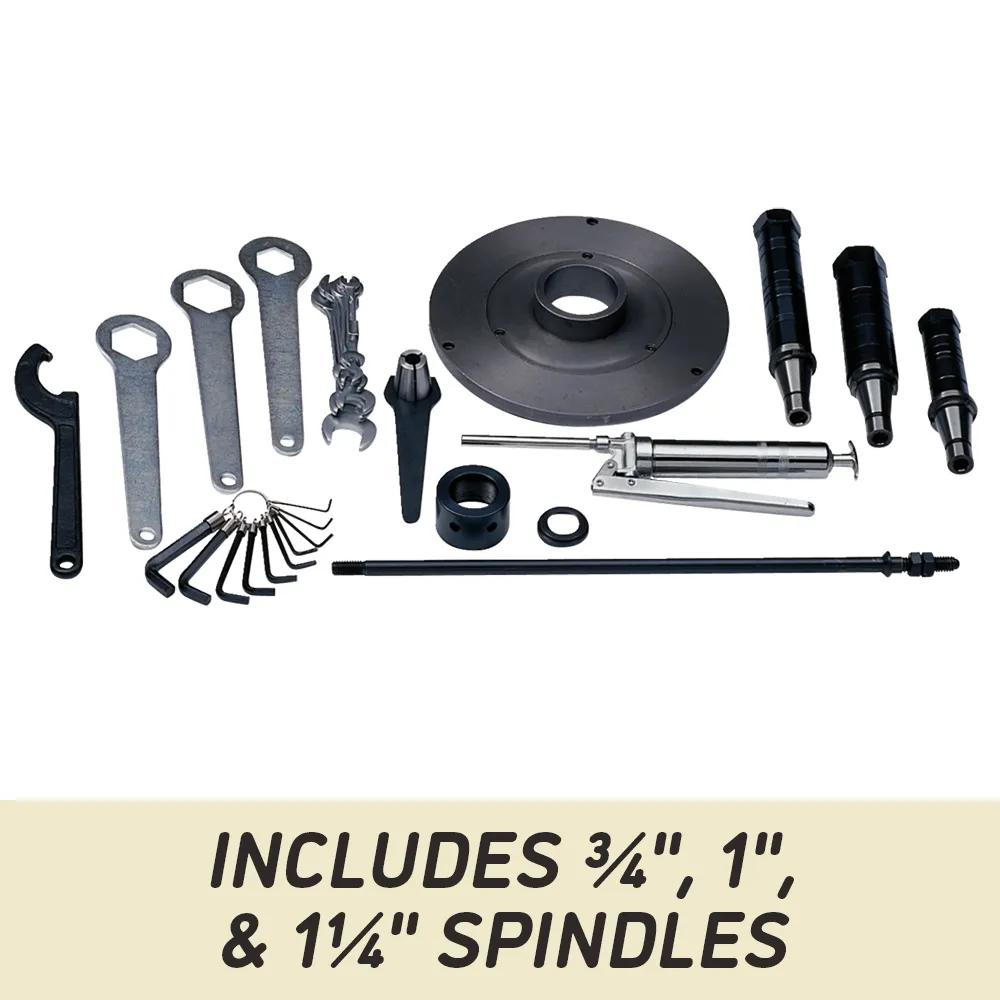

| maximum spindle diameter in | 1-1/4 |
| input power | 230V Three Phase |
| motor hp | 7.5 |
| motor phase | Three |
| motor voltage v | 230 |
| prewired voltage v | 230 |
| recommended circuit size amps | 30/15 |
| dust collection minimum cfm required cfm | 800 |

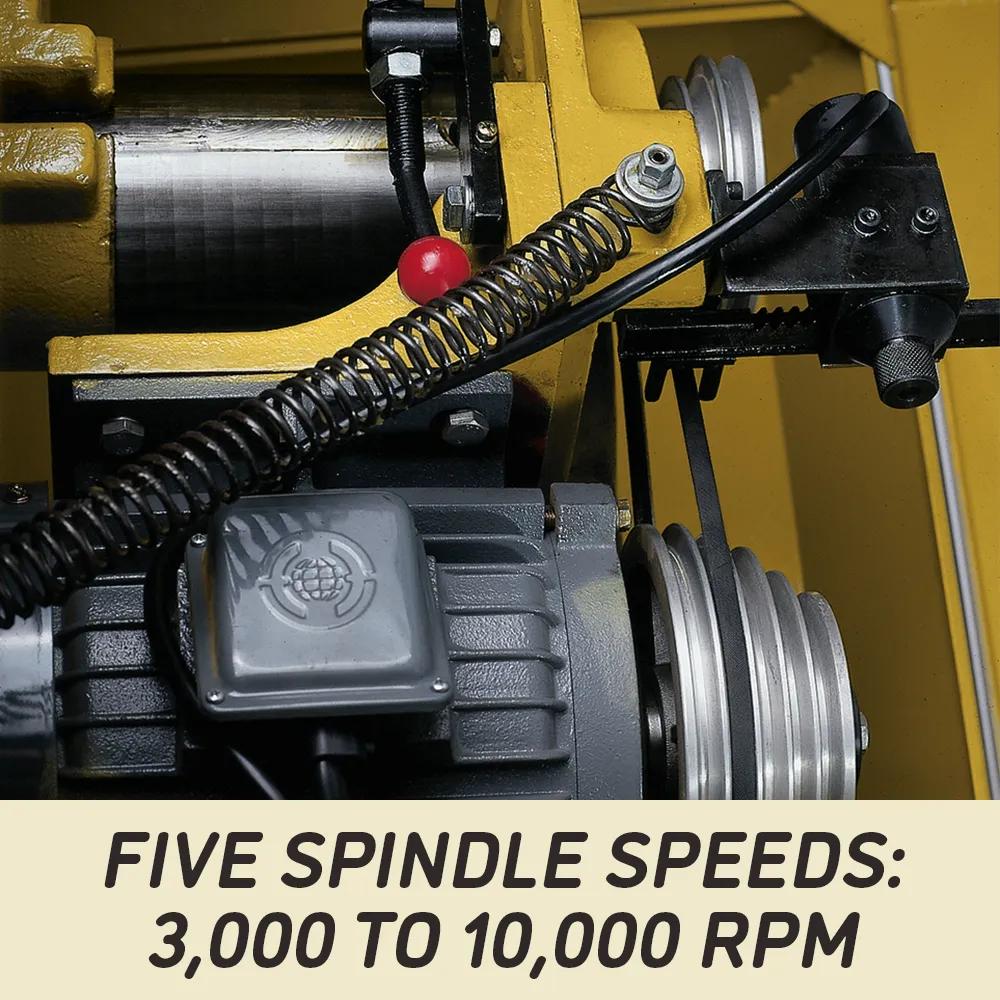

| spindle speed rpm | 3000, 4000, 6000, 8000, 10000 |
| spindle travel in | 7 in. |
| style type | Floor Standing |
| table inserts | 3 - 2.5, 5.5, Oval Slotted |
| table size l x w in | 51.5 in. x 33.5 in. |
| Gross Weight | 1280 |
| Net Weight | 1100 |
