Powermatic PJ-882 8 in. Parallelogram Jointer, 2HP, 1PH, 230V 1610079
Powermatic PJ-882 8 in. Parallelogram Jointer, 2HP, 1PH, 230V 1610079
Couldn't load pickup availability
Details
Details

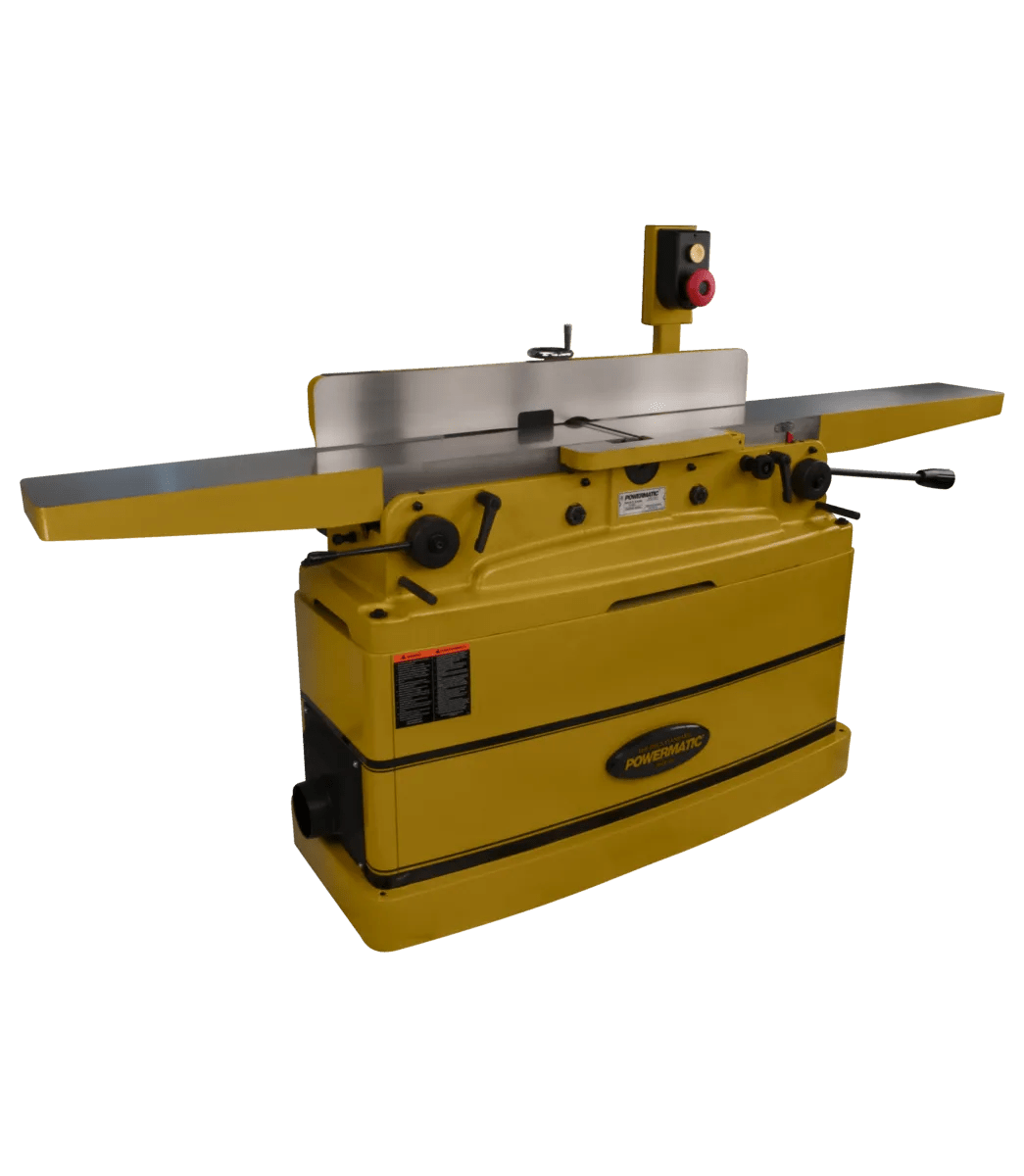

The Powermatic PJ882 8-inch parallelogram jointer is built for shops that require stability, accuracy, and consistent performance. Powered by a 2 HP motor, this jointer features a straight-knife cutterhead housed within a parallelogram table system that allows quick depth adjustments while maintaining precise alignment. The extended 82-inch bed improves material support, and the center-mounted fence tilts easily using a single handwheel with positive stops at common angles. Heavy cast iron construction and a fully enclosed steel stand provide rigidity and vibration control during demanding jointing tasks.
Features & Benefits

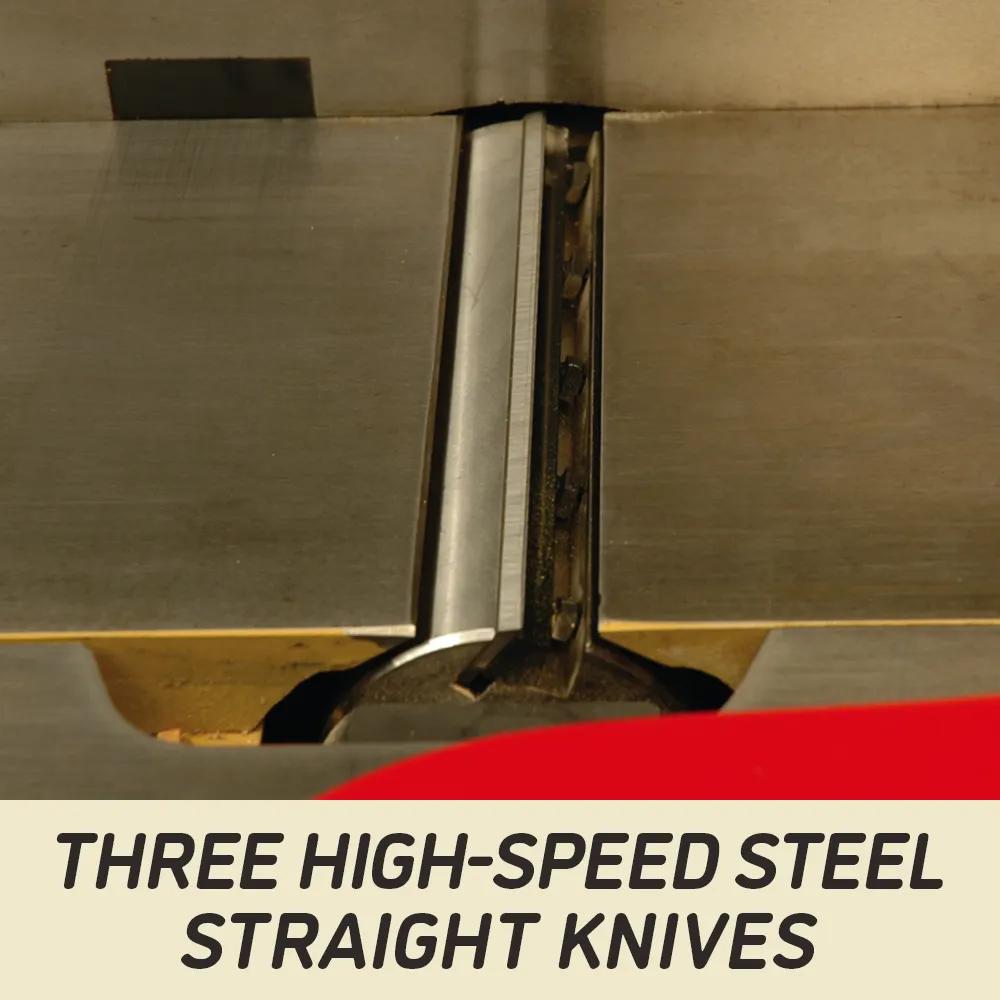

- Straight-knife cutterhead with three high-speed steel knives delivers clean, accurate jointing results
- 2 HP single-phase motor provides steady cutting power for jointing hardwoods and longer stock
- Extra-long 82-inch precision-ground cast iron tables improve material support and overall jointing accuracy

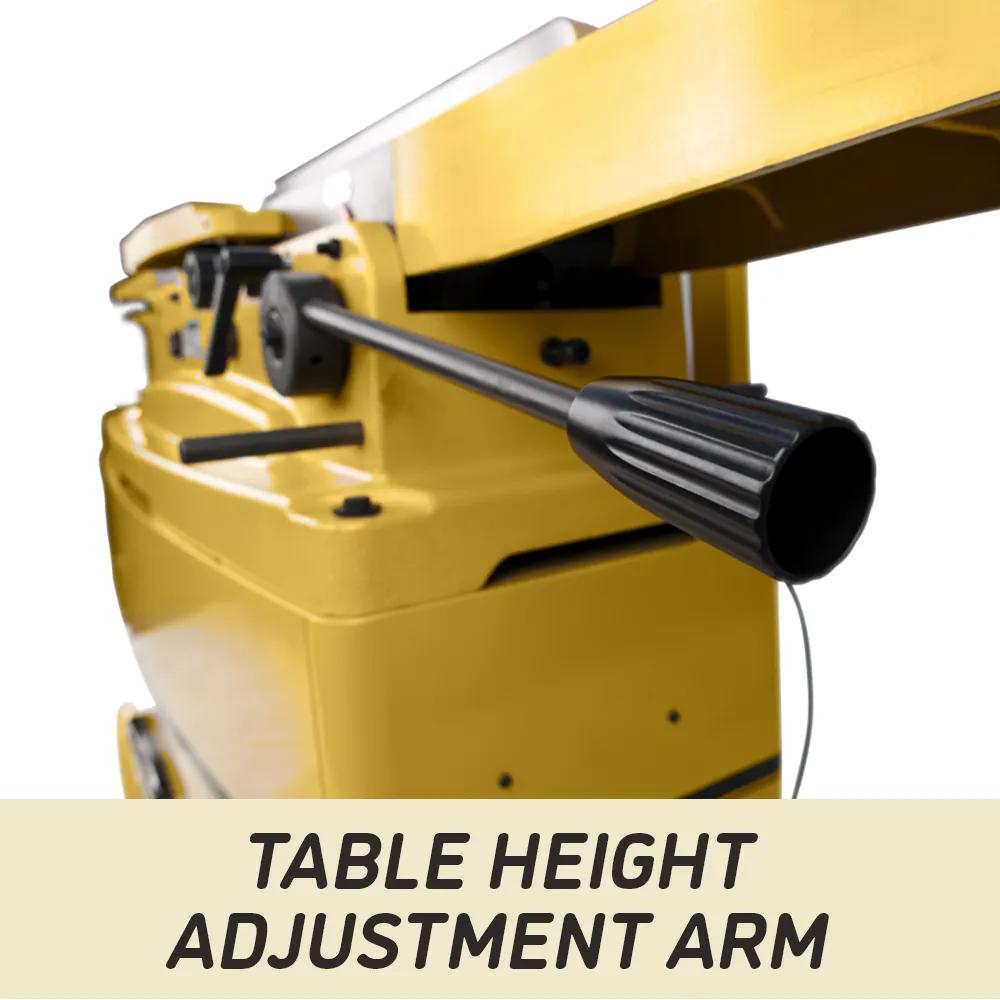

- Parallelogram table system keeps tables close to the cutterhead for better finish quality and fast depth adjustments
- Single handwheel fence adjustment with worm gear drive allows smooth, precise fence tilting and angle control

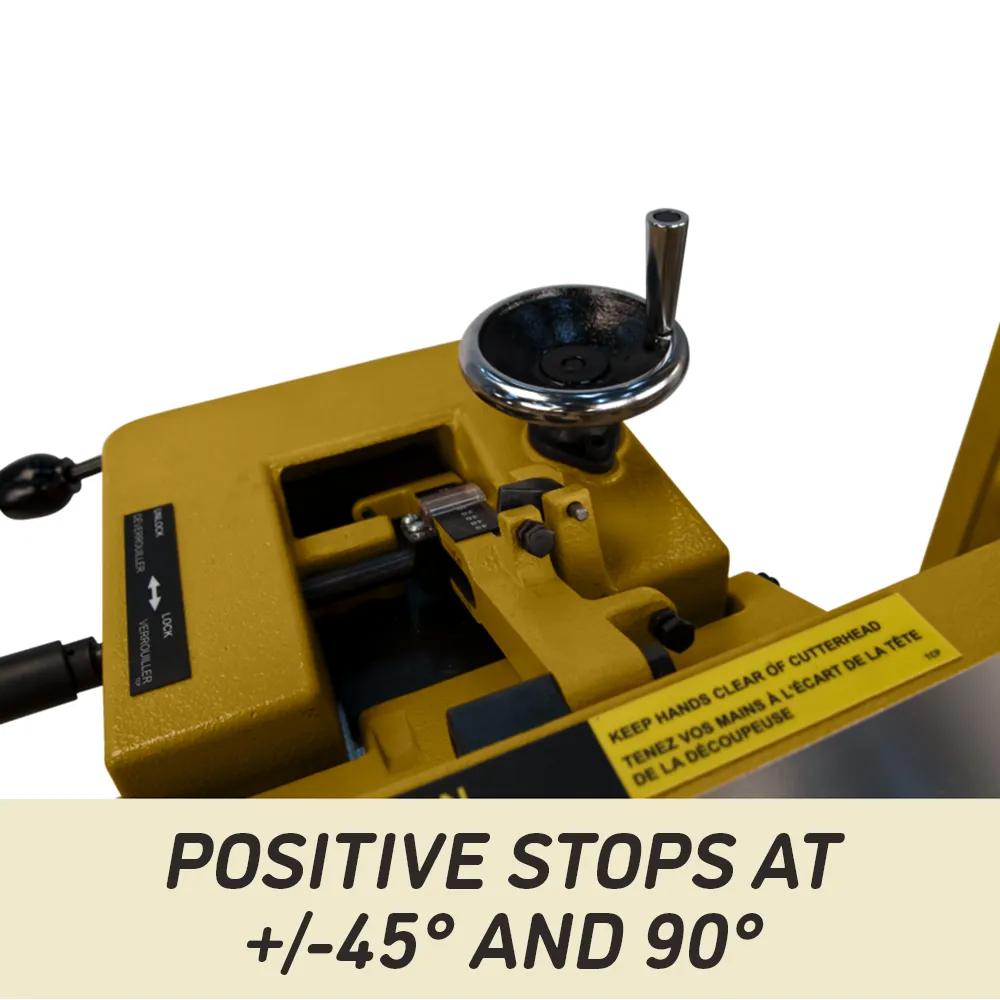

- Center-mounted cast iron fence includes positive stops for repeatable 45° and 90° jointing setups
- Heavy cast iron construction and enclosed steel stand reduce vibration for more consistent results

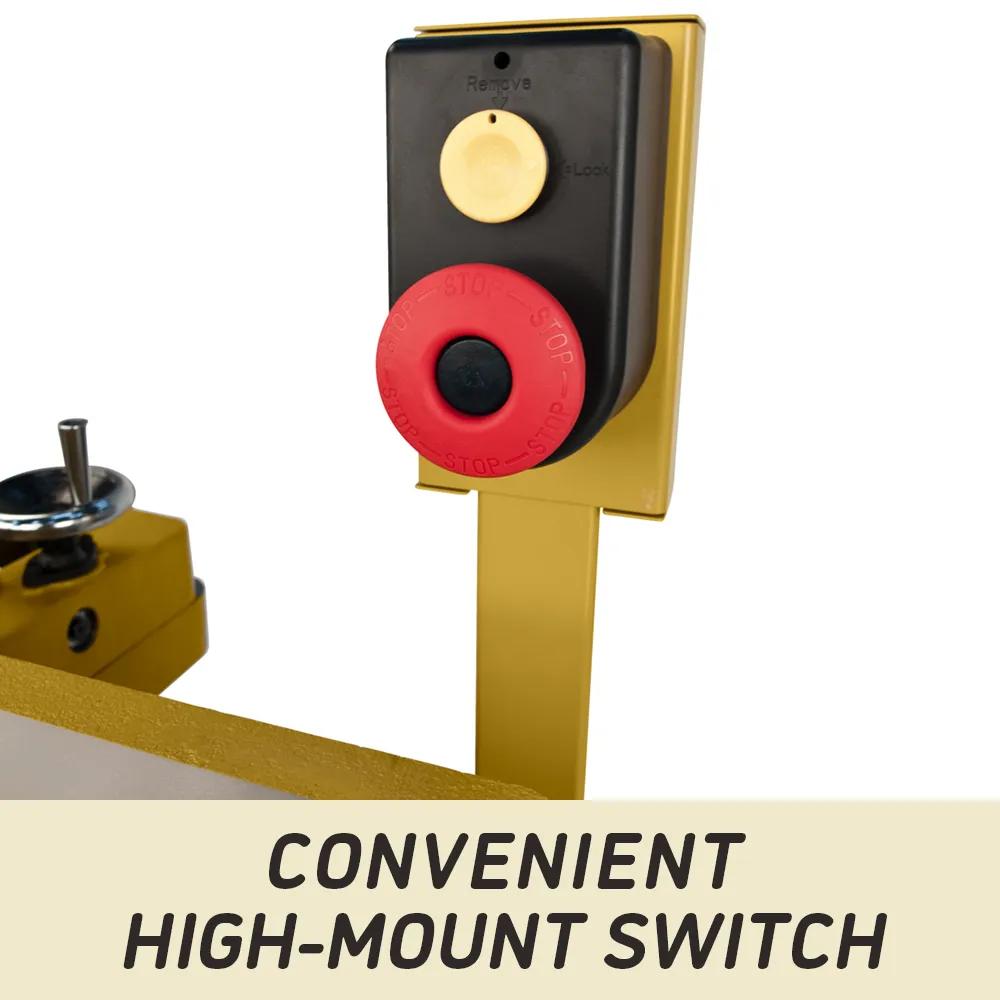

- High-mounted power switch improves visibility and operator access during setup and operation

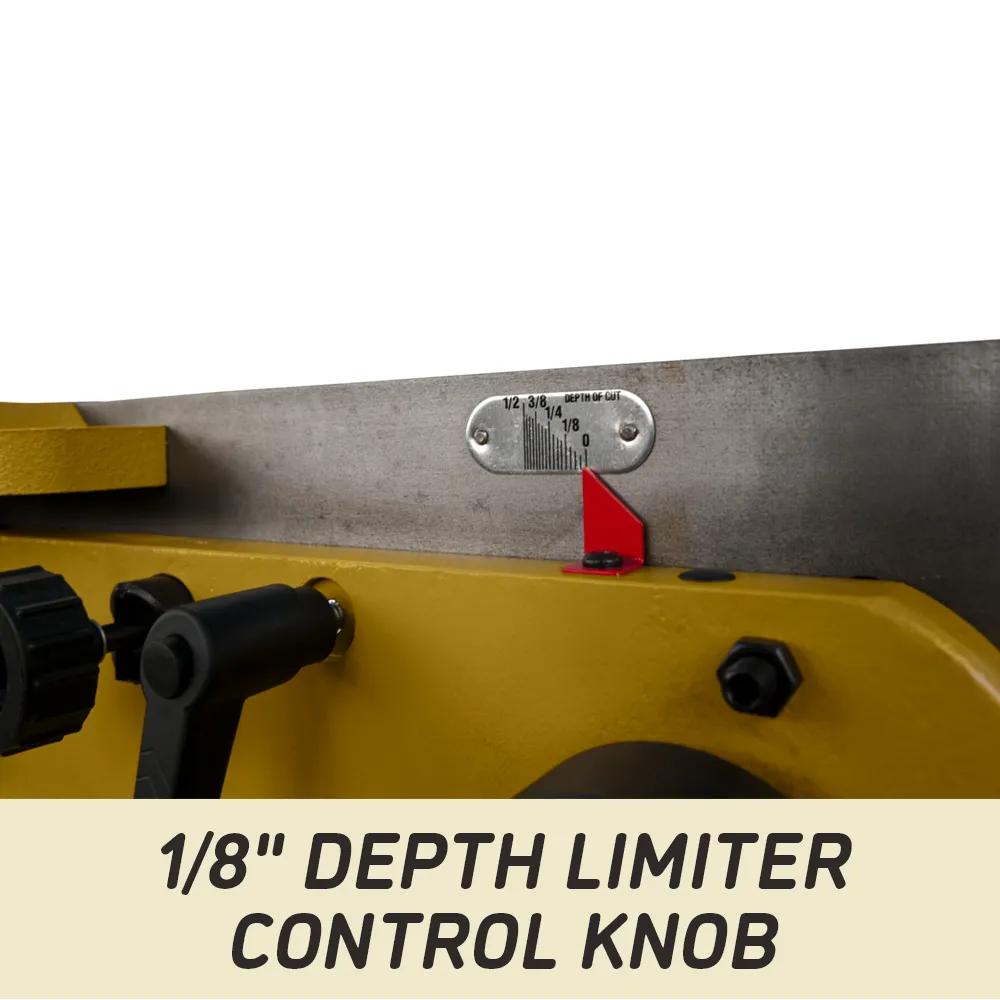

- Recommended maximum cutting depth of 1/8 inch supports controlled passes and improved surface finish
Specifications
Specifications
| coating | None |
| cuts per minute | 21000 |
| cutterhead diameter in | 3-1/16 in. |
| cutterhead speed rpm | 7000 |
| cutting capacity width in | 8 in. |
| dust port outside diameter in | 4 in. |
| fence size l x h in | 38 in. x 4-3/4 in. |
| fence tilt deg | -45 to +45 |
| horse power hp | 2 |
| infeed table length | 41-1/2 |
| maximum depth of cut in | 1/8 in. |
| input power | 230V Single Phase |
| motor amps | 9 |
| motor hp | 2 |
| motor phase | Single |
| motor voltage v | 230 |
| number of knives | 3 |
| prewired voltage v | 230 |

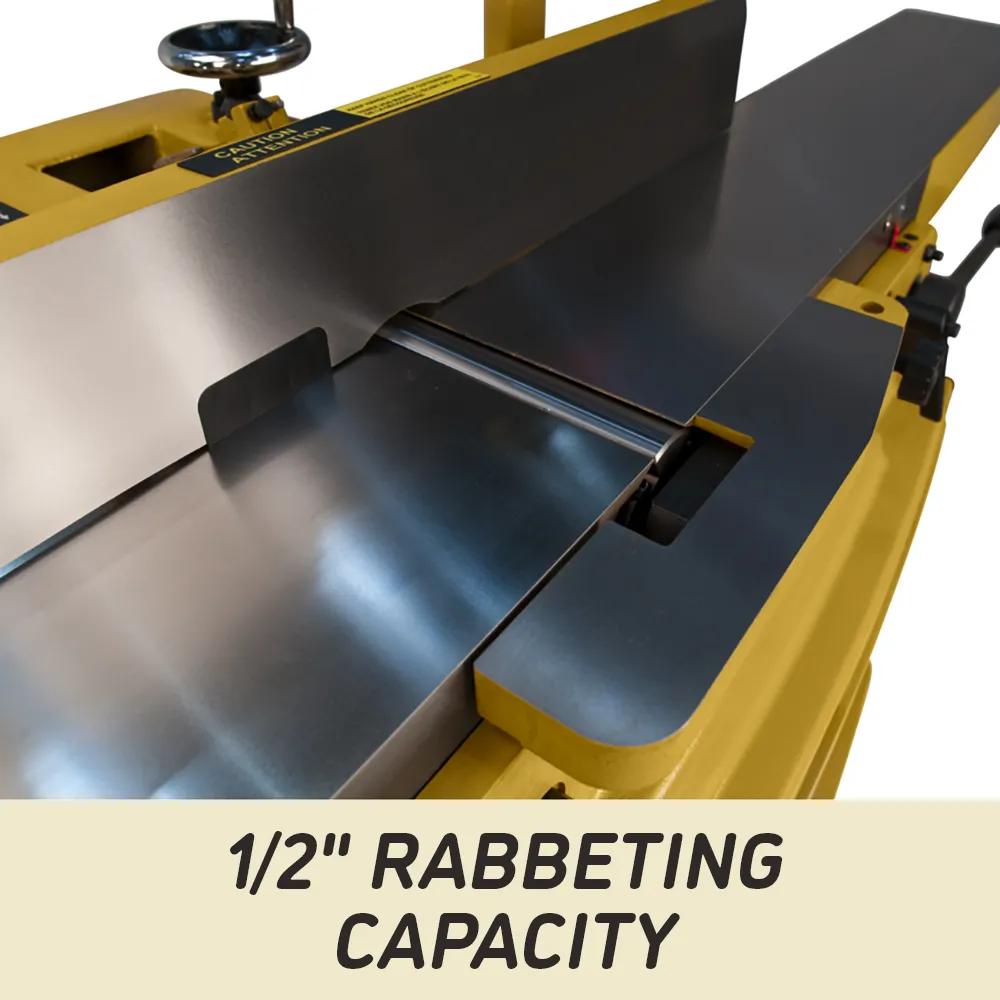

| rabbeting capacity in | 1/2 in. |
| recommended circuit size amps | 20 |
| dust collection minimum cfm required cfm | 600 |
| table size l x w in | 83 in. x 8 in. |
| type of cutterhead | Straight Knife |
| Gross Weight | 744 |
| Net Weight | 610 |
