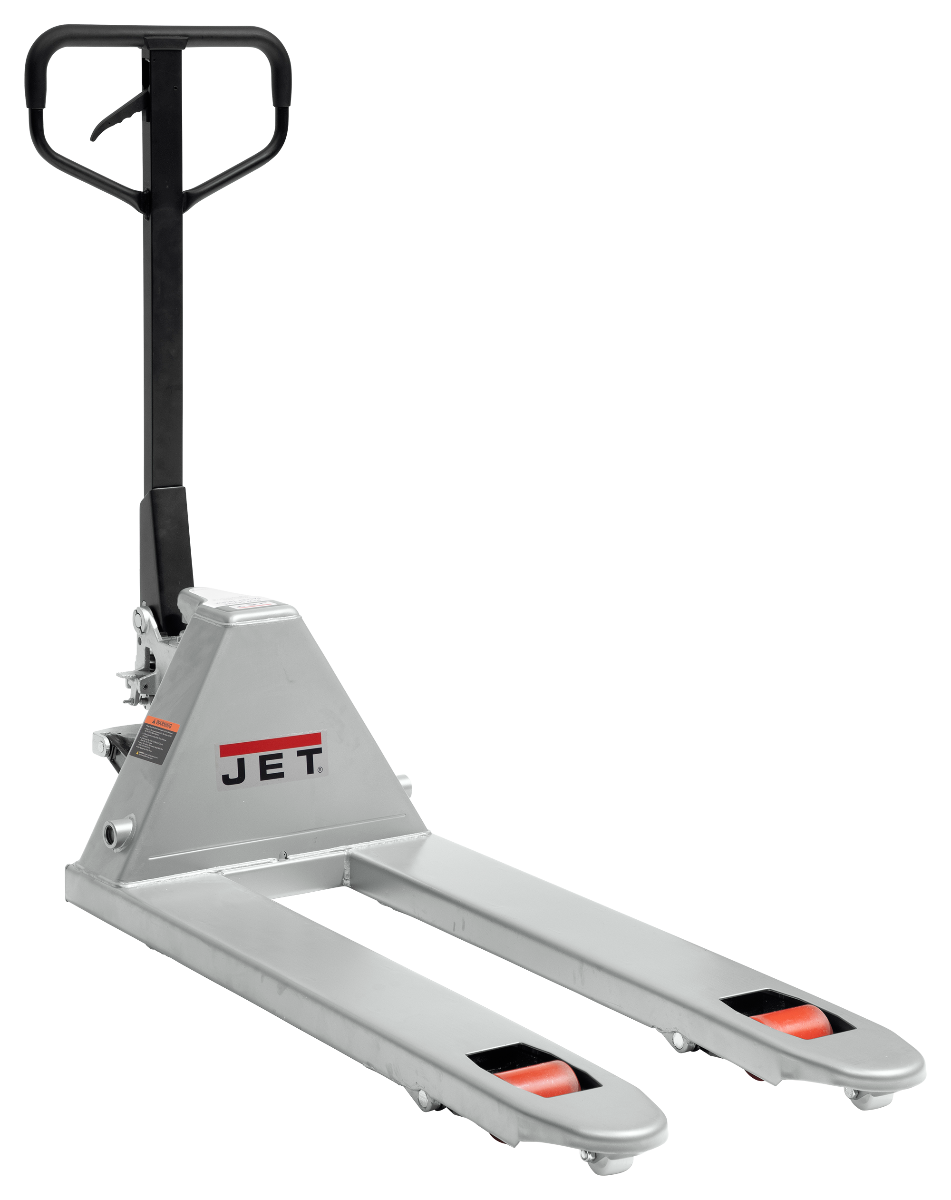

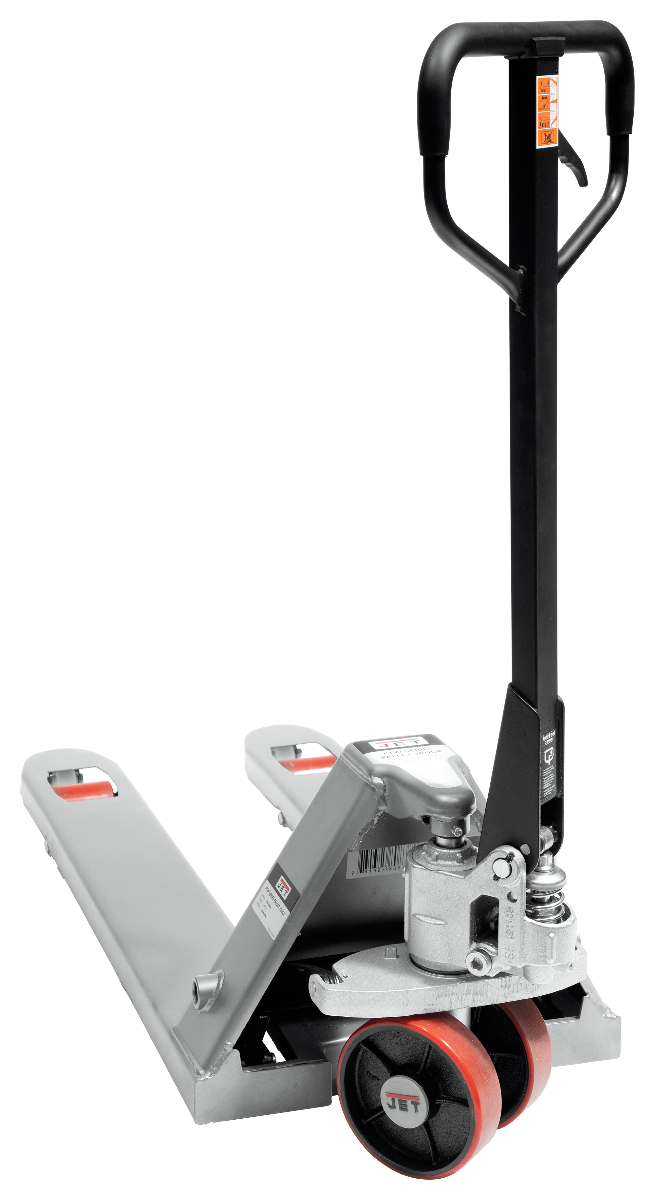

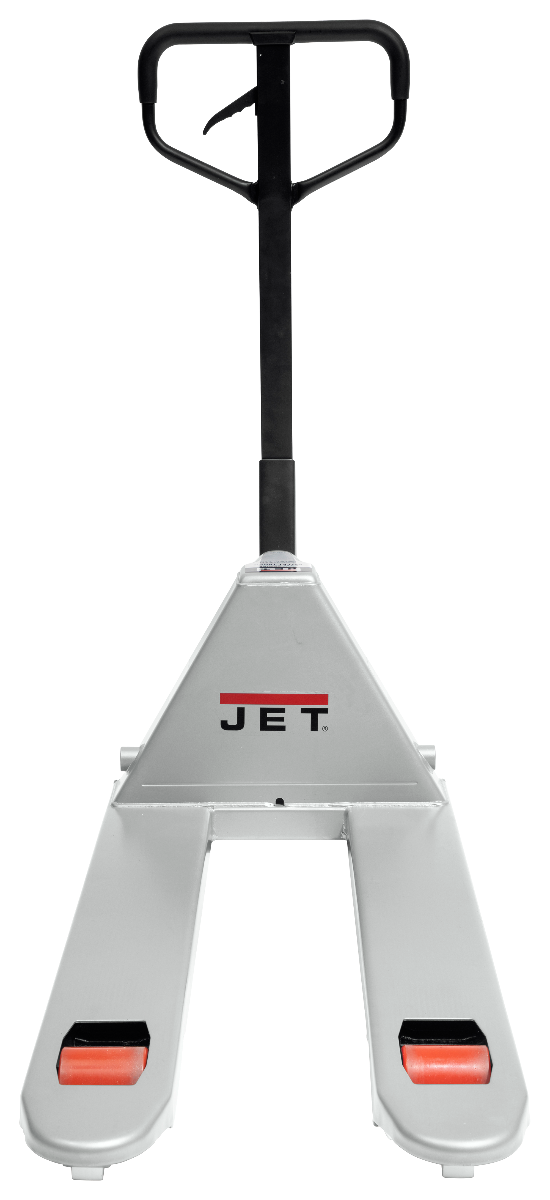

141171 Jet PTW-2042, 20in x 42in 6600-lb. Capacity Pallet Truck

JET® PTW Series Pallet Trucks are available in 5 different configurations. Each JET PTW Pallet Truck has a low profile of 2-7/8 inches, varying widths of 20 to 27 inches, and different lengths from 36 to 48 inches. High quality welded steel construction gives the PTW series a capacity of 6,600 pounds. The 200 degree turning radius increases maneuverability and the easy-to-use fingertip controls permit single handed operation. JET PTW Series Pallet Trucks are built to handle heavy lifting.

Features:

• Capacity: 6,600 pounds
• Turning Radius: 200 degrees
• Overload Protection prevents lifting loads past maximum capacity
• Lower material in a controlled decent with either hand or foot control for operator convenience

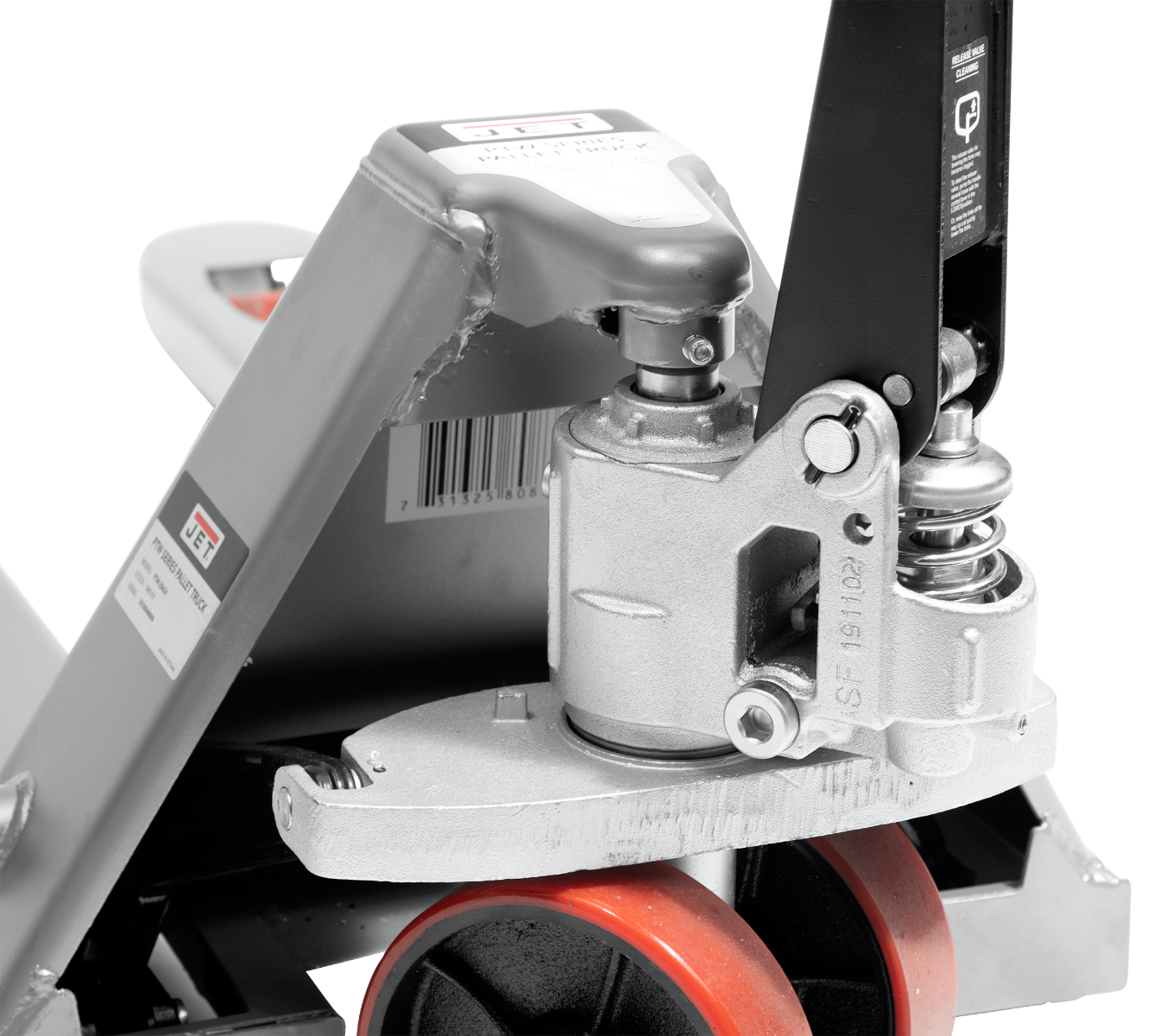

• Pump designed so that cylinder will not extend beyond maximum height
• Pumps designed for any industrial environment

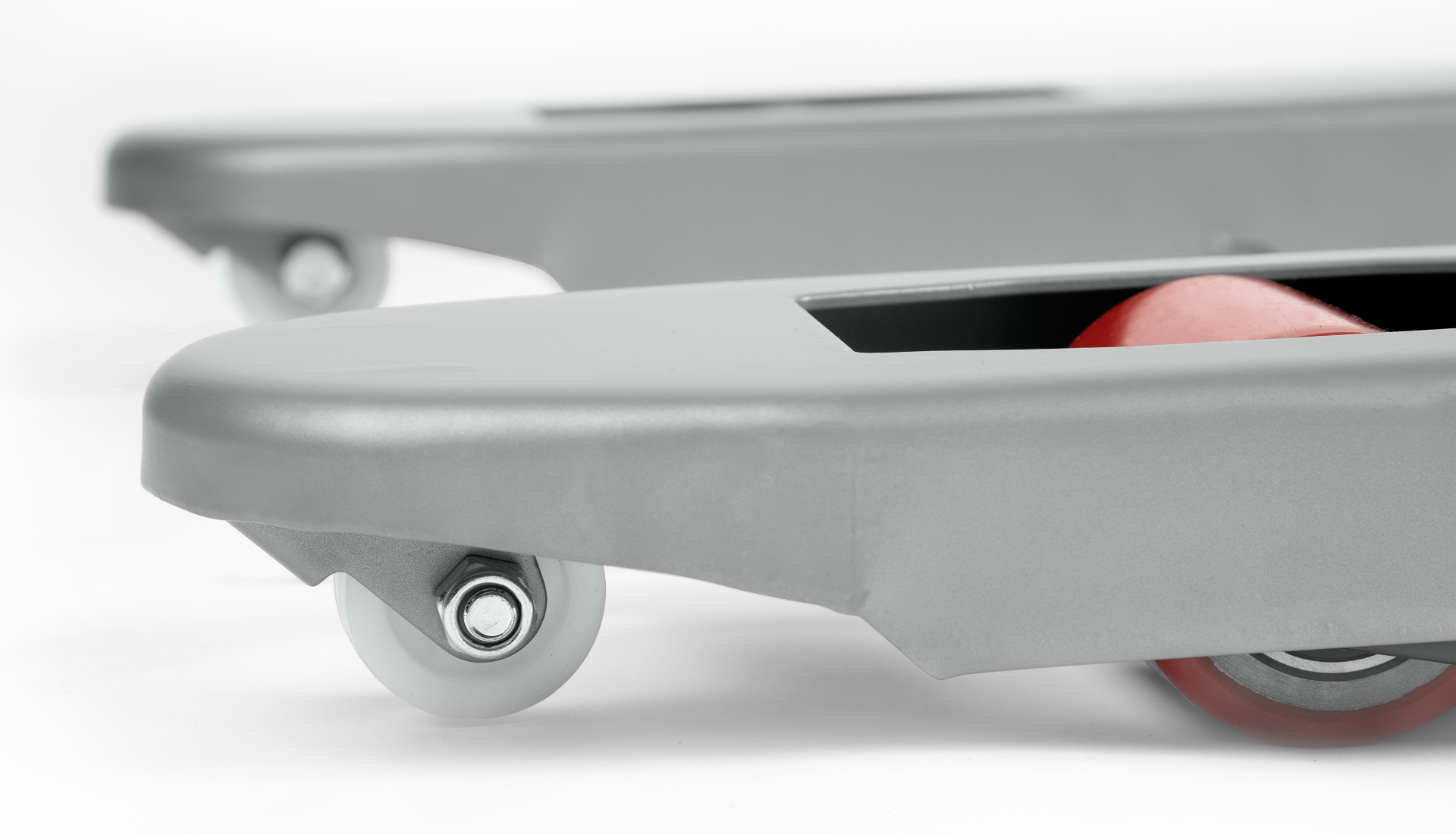

• Polyurethane 6-1/4 x 2 inch steer wheels for non marking of floors and quieter rolling

Specifications:

• Overall Dimensions (L x W x H) (In.) 57 x 50-1/2 x 48
• Capacity (Lbs.) 6600
• Overall Fork Dimensions (L x W) (In.) 42 x 20-1/2
• Steer Wheel Size (In.) 6-1/4 x 2
• Fork Width (In.) 6-1/4
• Load Wheel Size (OD x W) (In.) 2-7/8 x 3-11/16
• Maximum Height (In.) 7-1/2
• Lowered Height (In.) 2.95
• W1 Fork Width (In) 6-1/4
• W2 Overall Width (In) 20-1/2
• L1 Fork Length (In) 42
• L2 Overall Length (In) 57
• H1 Max. Raised Height (In) 7-1/2
• H2 Min. Raised Height (In) 2-19/20
• A Steer Wheel Dimensions (In) 6-1/4 x 2
• B Fork Wheel Dimensions (In) 2-7/8 x 3-11/16
• C Overall Height (In) 48
• Weight (Lbs) 132
• Turning Radius (Deg) 200
• Force Required to Pump @ Maximum Load (Lbs) 88
• Force Required to Move Maximum Load (Lbs) 150
• Number of Strokes to Reach Maximum Height 13

Red Assurance 2-year Warranty:

JET Tools warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET or Wilton tools.
