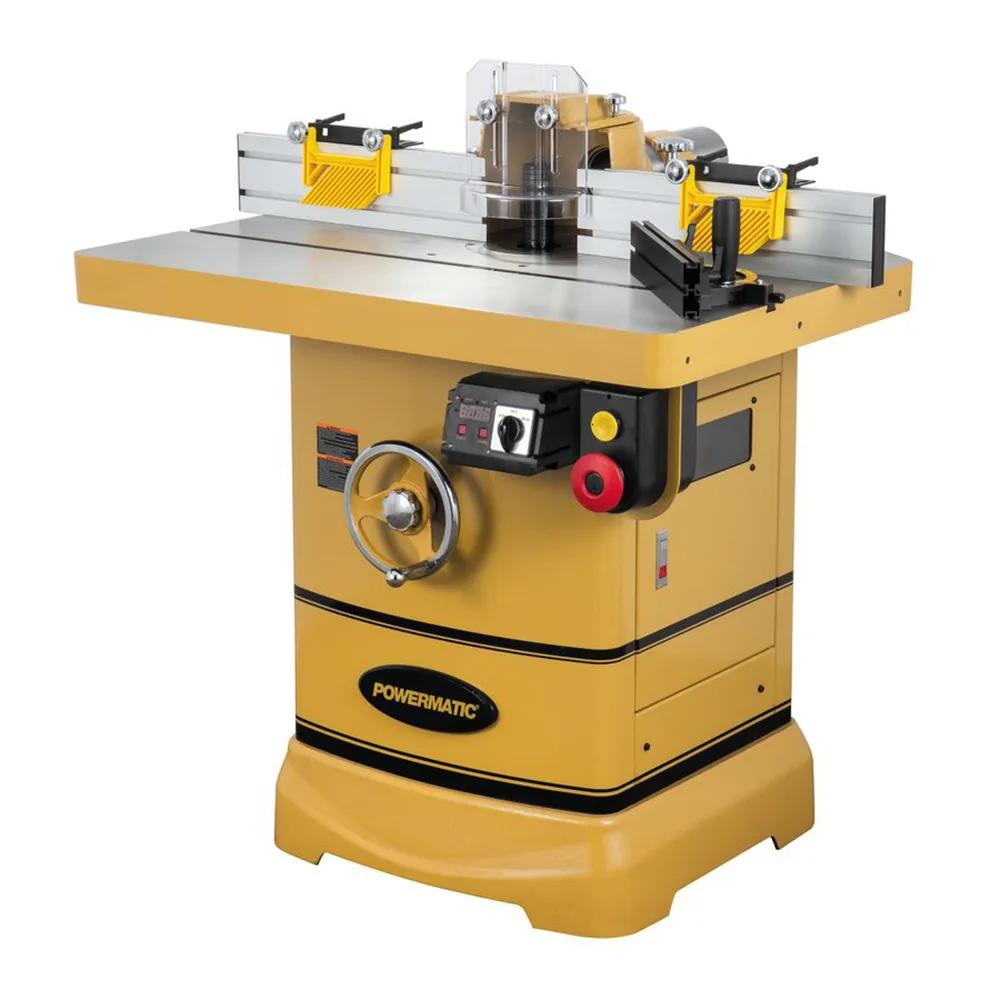

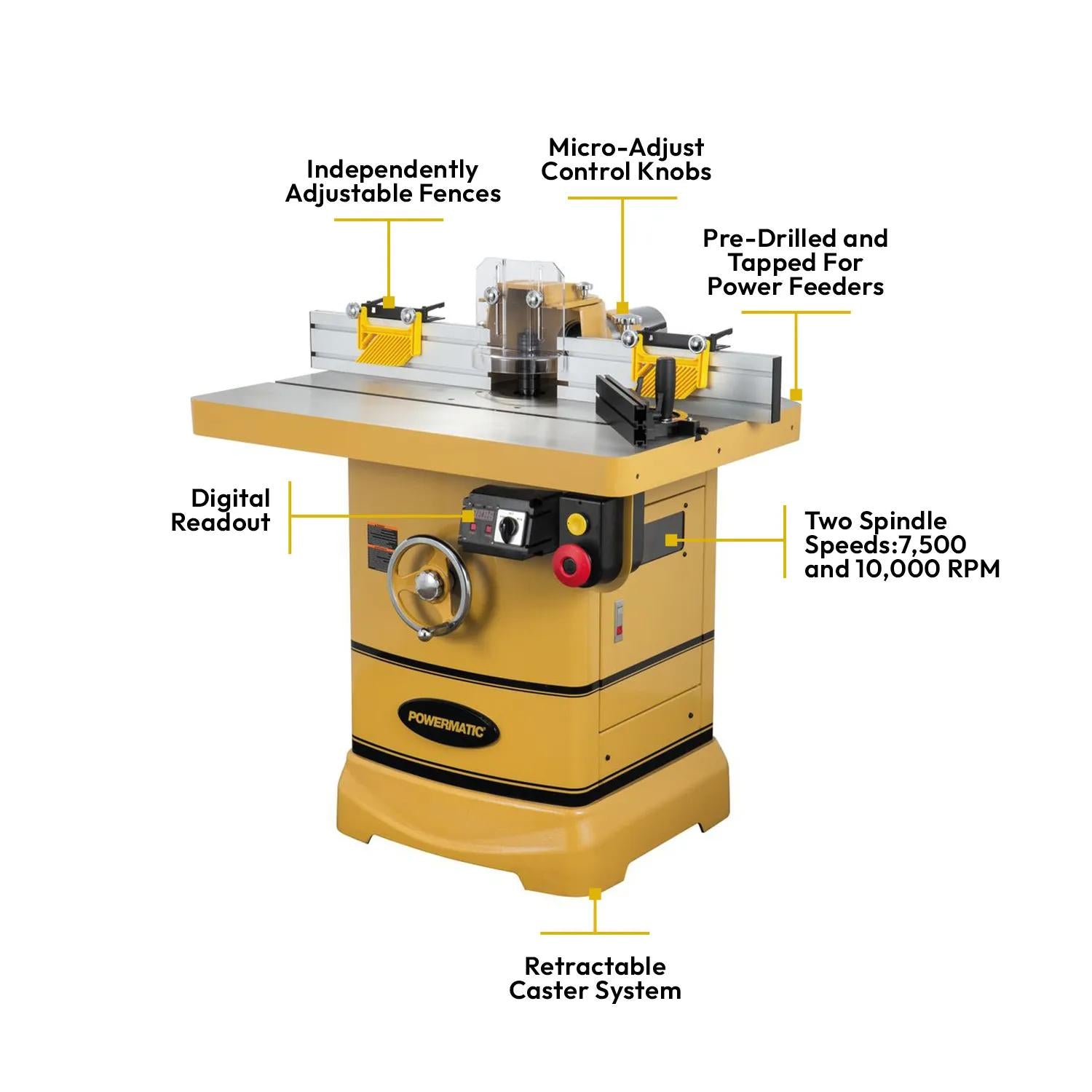

Powermatic PM2700 Shaper with DRO & Casters, 5HP, 1PH, 230V 1280101C
Powermatic PM2700 Shaper with DRO & Casters, 5HP, 1PH, 230V 1280101C
Couldn't load pickup availability
Details
Details
The Powermatic PM2700 Shaper is designed for professional woodworking shops and production environments that demand precision, durability, and consistent performance. Built with heavy-duty construction and precision-machined components, this shaper delivers smooth, accurate results for shaping, profiling, and edge-forming applications across a wide range of materials.
A large cast iron work surface provides excellent stability and vibration control, supporting accuracy during extended operation. The industrial-duty motor is engineered for continuous use, making the PM2700 well-suited for commercial shops, manufacturing facilities, and educational environments. User-focused controls and integrated safety features help improve workflow efficiency while maintaining operator confidence.
Designed to perform reliably in workshops across North America, the PM2700 Shaper reflects Powermatic’s commitment to long-term reliability and professional-grade craftsmanship. For product information, availability, or ordering assistance, contact Powermatic at 855-657-GOLD.
Features & Benefits
- Heavy-duty cast iron construction enhances stability and reduces vibration
- Precision-machined components support accurate and repeatable shaping results
- Industrial-duty motor provides consistent power for demanding applications
- Large work surface supports a wide range of shaping and profiling tasks
- Smooth operation improves finish quality and productivity
- Designed for professional shops, production facilities, and educational environments
Specifications
Specifications
| dust port outside diameter in | 4 in. |

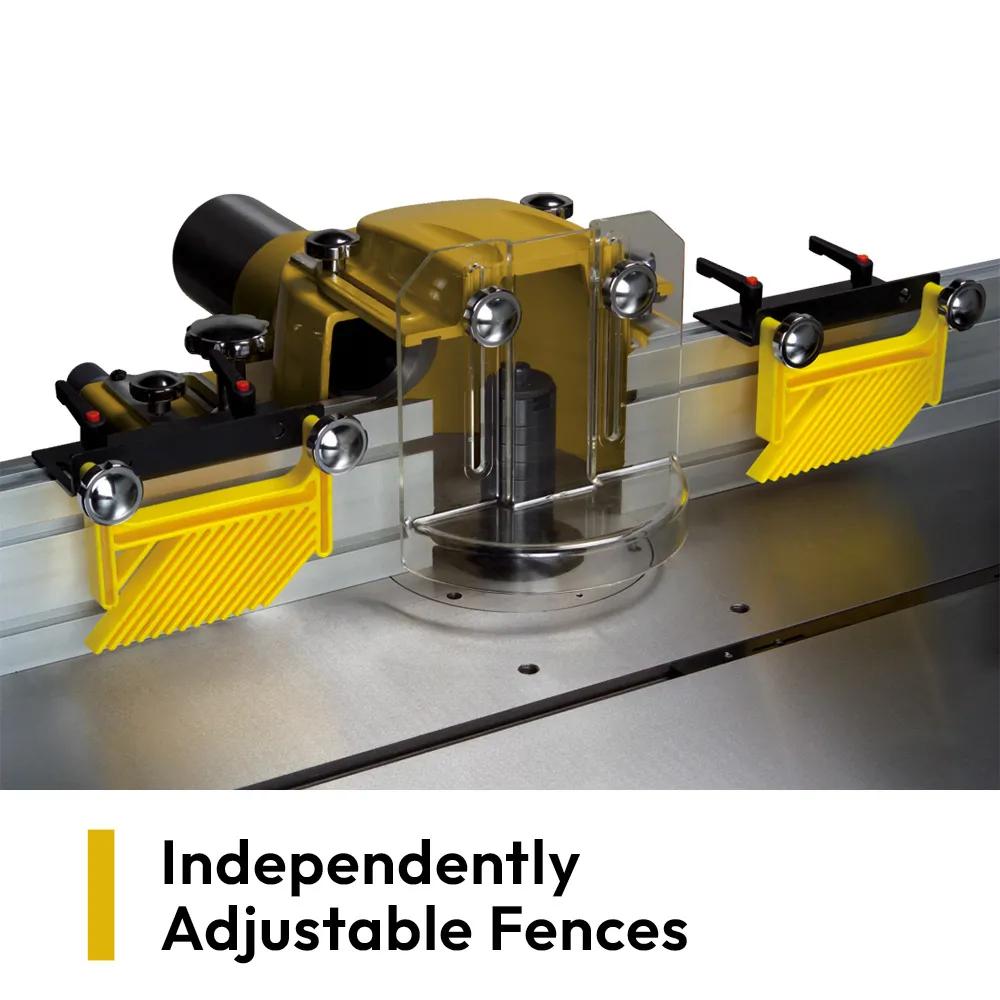

| fence size l x h in | 4-7/8 in. x 18-3/4 in. (2) |
| horse power hp | 5 |
| maximum spindle diameter in | 1-1/4 |
| input power | 230V Single Phase |
| motor amps | 22 |
| motor hp | 5 |
| motor phase | Single |
| motor voltage v | 230 |
| prewired voltage v | 230 |
| recommended circuit size amps | 40 |
| dust collection minimum cfm required cfm | 600 |

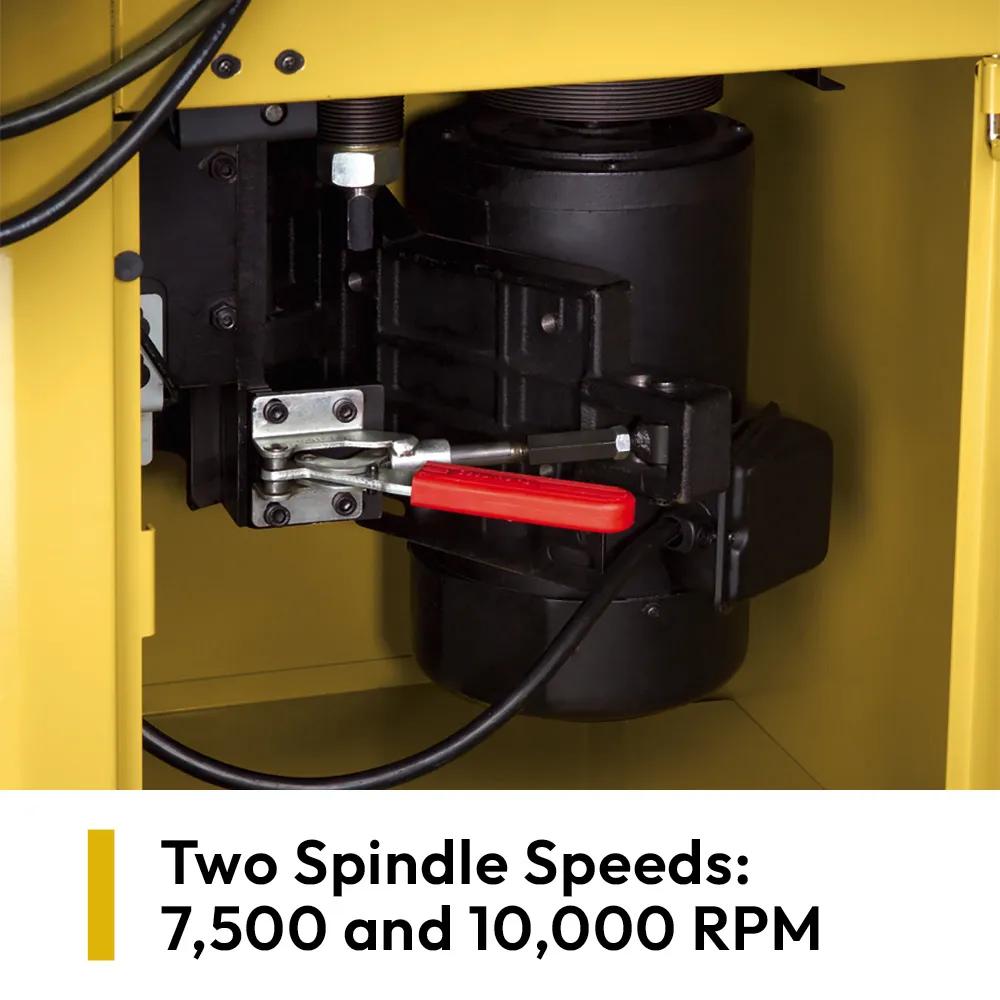

| spindle speed rpm | 7500, 10000 |
| spindle travel in | 4 in. |
| style type | Floor Standing |
| table height from floor in | 35-1/2 |
| table inserts | 3 - 2.55, 4.16, 5.75 |
| table opening diameter in | 7.33 |
| table size l x w in | 40 in. x 30 in. |
| Gross Weight | 769 |
| Net Weight | 769 |
