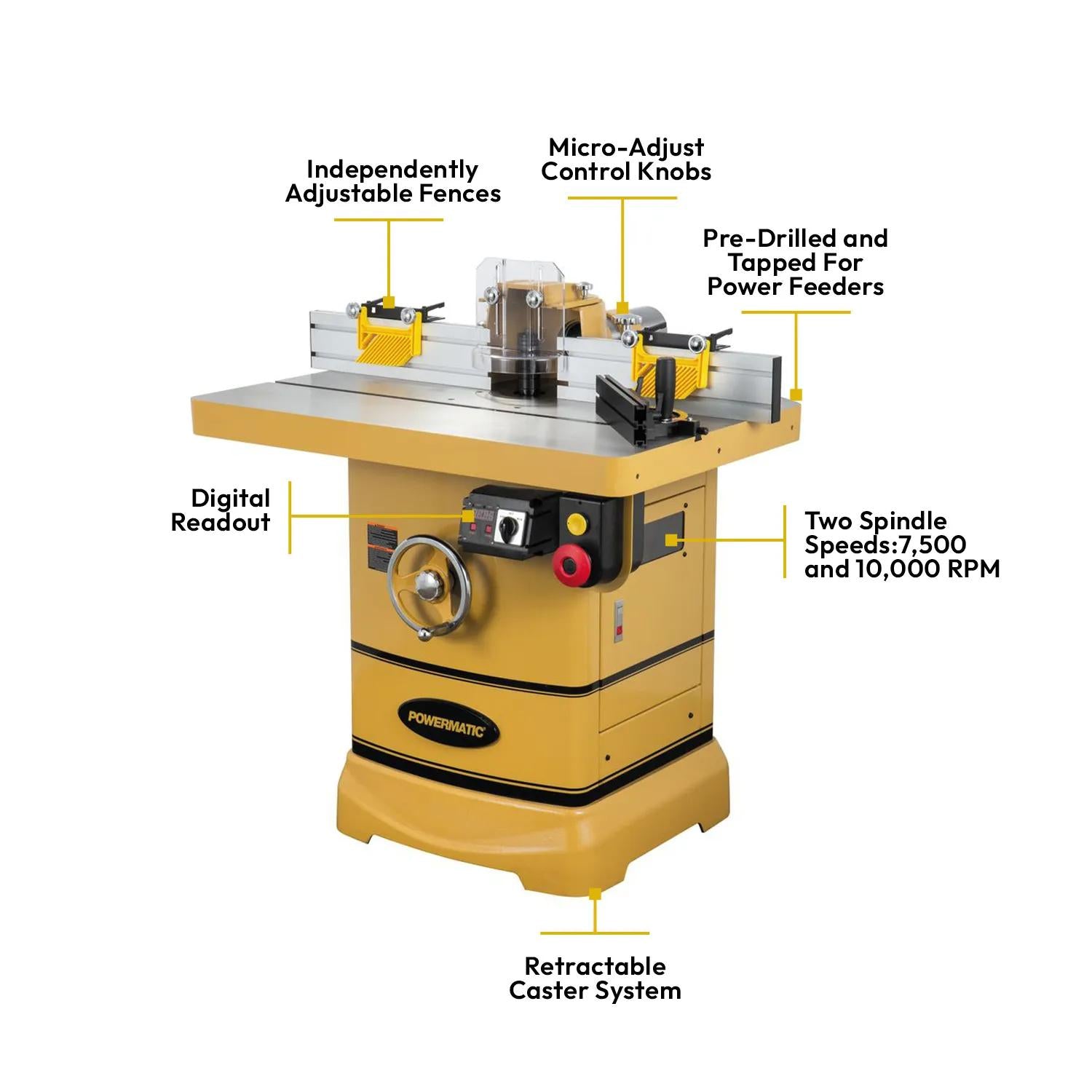

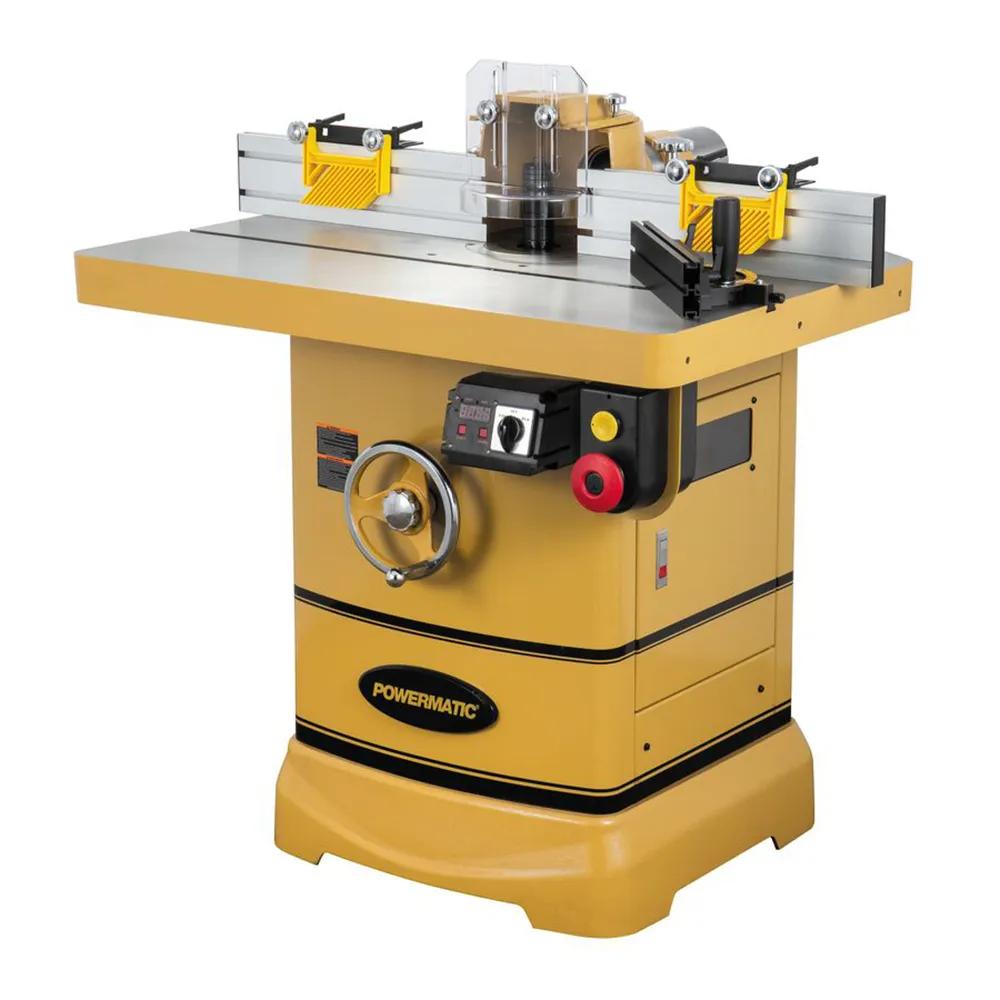

Powermatic PM2700 Shaper with DRO & Casters, 3HP, 1PH, 230V 1280100C
Powermatic PM2700 Shaper with DRO & Casters, 3HP, 1PH, 230V 1280100C
Couldn't load pickup availability
Details
Details
The Powermatic PM2700 Shaper is engineered for professional woodworking shops and production environments that require consistent performance, precision, and durability. Built with heavy-duty materials and precision-machined components, this shaper delivers smooth, accurate results for shaping, profiling, and edge-forming applications across a wide range of wood species and composite materials.
A large cast iron work surface provides exceptional stability and vibration control, helping maintain accuracy during extended operation. The industrial-duty motor is designed for continuous use, making the PM2700 well suited for commercial shops, manufacturing facilities, and educational environments. Intuitive controls and integrated safety features support efficient workflow while maintaining operator confidence on the shop floor.
Designed to perform reliably in workshops across North America, the PM2700 Shaper reflects Powermatic’s commitment to long-term reliability and professional-grade craftsmanship. For product information, availability, or ordering assistance, contact Powermatic at 855-657-GOLD.
Features & Benefits
- Heavy-duty cast iron construction improves stability and reduces vibration during operation
- Precision-machined components support accurate and repeatable shaping results
- Industrial-duty motor delivers consistent power for demanding applications
- Large work surface accommodates a variety of shaping and profiling tasks
- Smooth operation enhances finish quality and overall productivity
- Designed for professional shops, production facilities, and educational environments
Related Products
- PM1280101C - 5-HP Spindle Shaper, 30" x 40" Table, 230V 1Ph (PM2700)
Specifications
Specifications
| dust port outside diameter in | 4 in. |

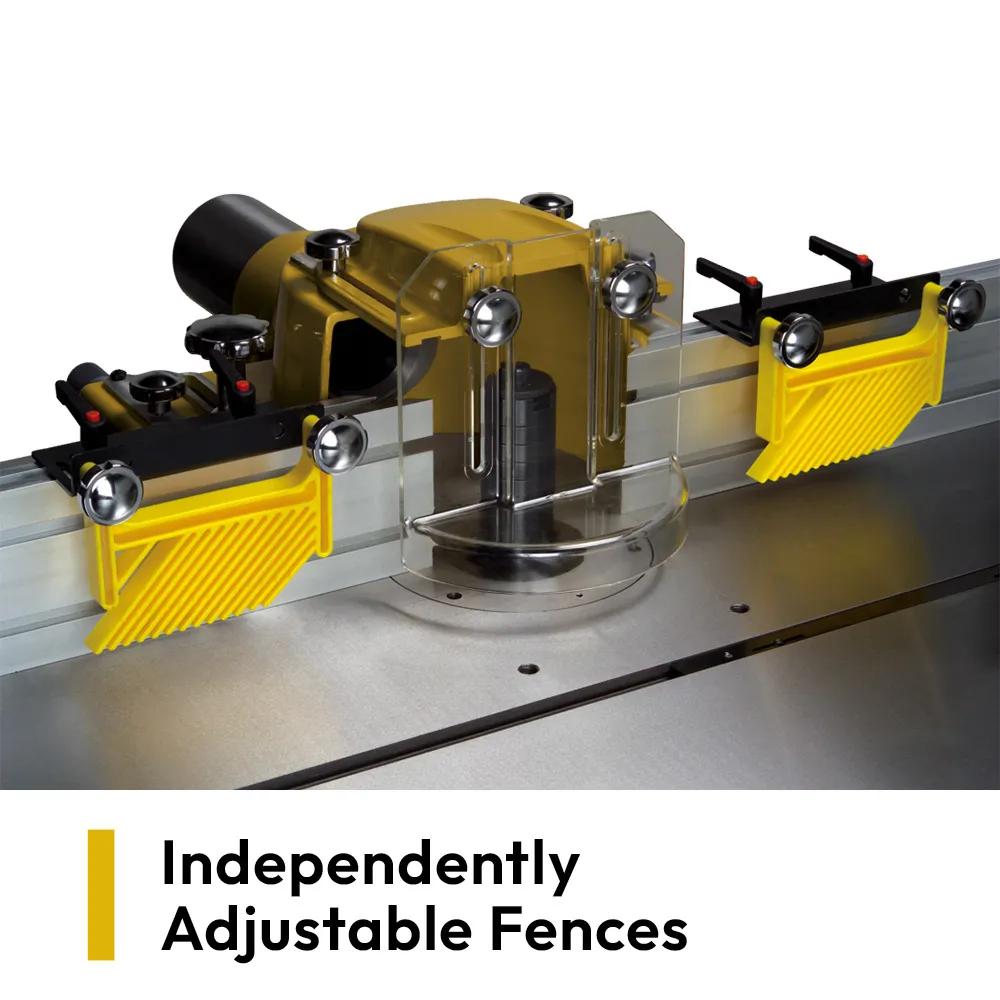

| fence size l x h in | 4-7/8 in. x 18-3/4 in. (2) |
| horse power hp | 3 |
| maximum spindle diameter in | 1-1/4 |
| input power | 230V Single Phase |
| motor amps | 14 |
| motor hp | 3 |
| motor phase | Single |
| motor voltage v | 230 |
| prewired voltage v | 230 |
| recommended circuit size amps | 30 |
| dust collection minimum cfm required cfm | 600 |

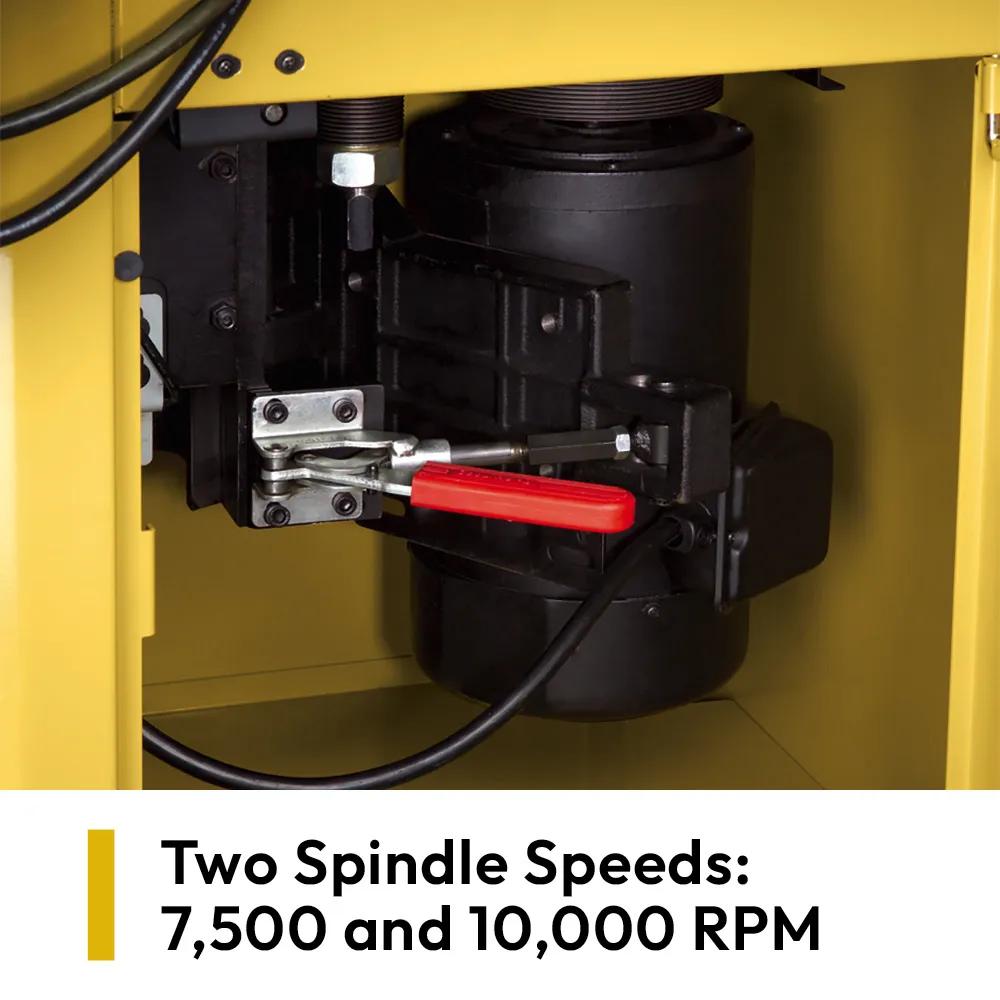

| spindle speed rpm | 7500, 10000 |
| spindle travel in | 4 in. |
| style type | Floor Standing |
| table height from floor in | 35-1/2 |
| table inserts | 3 - 2.55, 4.16, 5.75 |
| table opening diameter in | 7.33 |
| table size l x w in | 40 in. x 30 in. |
| Gross Weight | 690 |
| Net Weight | 664 |
