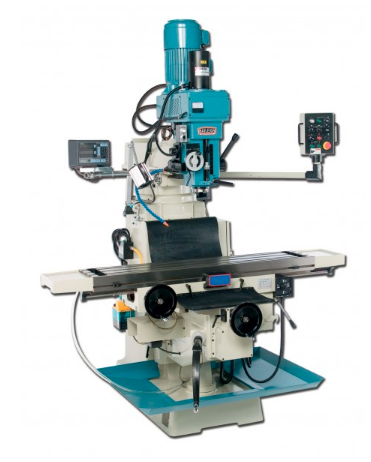

Baileigh VM-1258-3; 12" x 58" EVS Variable Speed Vertical Milling Machine NST 40 Spindle Powered X,Y & Z moverment, Mitutoyo DRO & Air Drawbar 5HP, 220V 3Phase 1008169
Baileigh VM-1258-3; 12" x 58" EVS Variable Speed Vertical Milling Machine NST 40 Spindle Powered X,Y & Z moverment, Mitutoyo DRO & Air Drawbar 5HP, 220V 3Phase 1008169
Couldn't load pickup availability
Details
Details
1008169, Baileigh VM-1258-3, 220V 3Ph VS Vertical Mill
When you need a vertical mill to do a large job, a small wimpy mill won’t do. You need to step up to the VM-1258 knee milling machine from Baileigh Industrial. The VM-1258 vertical mill features a whopping 12” x 58” table, one of the largest you will find on any manual mill. This large oversized table isn’t just mounted on a wimpy machine either. The whole machine has been built to reflect the size and weight that this table brings.
In order to build a machine this big, rigidity has to come into the equation. Baileigh industrial uses only best castings as the starting point for their mills. The stronger you make he platform the better the cutting is. From there we selected one of the best spindle packages available, with an NST 40 spindle. A larger spindle is stronger and has tighter tolerances over a longer period of time. In order to spin a heavy duty spindle like that we decide to go with a Yaskawa® inverter powered by a 5hp 220 volt three phase motor. The inverter lets the operator chose his RPM from 80 to 3800 rpm. Being able to choose the correct rpm will make for longer lasting tooling and better cuts.
Movement on the three axis are powered to make it easier to operate. The X and Y axis also has a Mitutoyo® digital read out as a standard feature. No need to install it yourself, it is already done at the factory. The X and Y axis also have square slide ways with covers and ball screws for the best movement available. A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1258.
Specifications:
- Item Number VM-1258-3
- Table Size 58" x 12"
- Spindle Center To Column Min Max 5.11" – 21.65"
- Spindle Diameter 3.93"
- Spindle Feed Per Rev .0035"/.07"/.14"
- Spindle Head Swivel 45° (F&R) 90° (R&L)
- Motor Spindle 5 hp
- Travel Auto X Axis 36.22"
- Travel Auto Y Axis 14.96"
- Travel Auto Z Axis 17.71"
- Travel Manual X Axis 36.61"
- Travel Manual Y Axis 15.74"
- Travel Manual Z Axis 17.71"
- Spindle Nose To Table Min Max 1.37" – 19.09"
- Spindle Speed 80 – 3800 rpm
- Spindle Taper NT 40
- Table Load Capacity 770 lbs.
- T Slots .625"
- Motor Coolant 1/8 hp
- Cross Travel Of Ram 16.53"
- Power 220V / 3-phase
- Shipping Weight 4300lbs
- Spindle Travel 5.51"
- Shipping Dimensions (Inches) 73x66x83
* specifications subject to change without notice.
Specifications
Specifications
| Baileigh VM-1258-3; 12" x 58" EVS Variable Speed Vertical Milling Machine NST 40 Spindle Powered X,Y & Z moverment, Mitutoyo DRO & Air Drawbar 5HP, 220V 3Phase 1008169 | |
| APPLICATION | Metal Working |
| BRAND COMPATIBILITY | Baileigh |
| Brand | Baileigh |
| HORSEPOWER | 5 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL TYPE | Milling Machines |
| VARIABLE SPEED | Yes |
| VOLTAGE | 208V-240V 3Ph |
