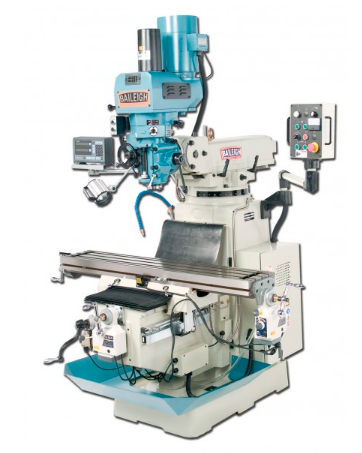

Baileigh VM-1054-3; 10" x 54" EVS Variable Speed Vertical Milling Machine NT40 Spindle with X, Y & Z Powerfeeds, DRO & Air Power Drawbar 3HP, 220V 3Phase 1008136
Baileigh VM-1054-3; 10" x 54" EVS Variable Speed Vertical Milling Machine NT40 Spindle with X, Y & Z Powerfeeds, DRO & Air Power Drawbar 3HP, 220V 3Phase 1008136
Couldn't load pickup availability
Details
Details
1008136, Baileigh VM-1054-3, 220V 3Ph VS Vertical Mill
Table size is very important when deciding which milling machine to buy. The VM-1054 from Baileigh Industrial has a 10” x 54” table that has been hardened, ground, polished, and coated with a special coating called Turcite® B to extend life and help eliminate corrosion.
The VM-1054 is a variable speed milling machine that is powered by a Yaskawa® inverter. This inverter is powered by 220 volts of three phase power. Inverters are great for milling machines because of their ability to be adjusted to any speed desired between 80 and 3800 rpm. By selecting the right speed tooling life is lengthened and cut quality improves, both of which save money. Baileigh Industrial selected an NT 40 taper for its spindle to help improve performance as well. A larger spindle is stronger and has tighter tolerances over a longer period of time. Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame. The stronger you make he platform the better the cutting is.
All three axis are powered on the VM-1054 making it easy on the operator. Another nice feature of the VM-1054 milling machine is the two axis digital readout that comes standard. This Mitutoyo® digital readout is accurate to 1/10 of 1 thousandth of an inch. A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054.
Specifications:
- Item Number VM-1054-3
- Table Size 54" x 10"
- Spindle Center To Column Min Max 7.87" – 26.77"
- Spindle Diameter 3.93"
- Spindle Feed Per Rev .0015"/.003"/.005"
- Spindle Head Swivel 45° (F&R) 90° (R&L)
- Motor Spindle 3 hp
- Travel Auto X Axis 32.25"
- Travel Auto Y Axis 15.75"
- Travel Auto Z Axis 16"
- Travel Manual X Axis 35.43"
- Travel Manual Y Axis 15.75"
- Travel Manual Z Axis 16"
- Spindle Nose To Table Min Max 1.57" – 17.55"
- Spindle Speed 80 – 3800 rpm
- Spindle Taper NT 40
- Table Load Capacity 550 lbs.
- T Slots .625"
- Motor Coolant 1/8 hp
- Cross Travel Of Ram 18.89"
- Power 220V / 3-phase
- Shipping Weight 3000lbs
- Spindle Travel 5"
- Shipping Dimensions (Inches) 68x72x75
* specifications subject to change without notice.
Specifications
Specifications
| Baileigh VM-1054-3; 10" x 54" EVS Variable Speed Vertical Milling Machine NT40 Spindle with X, Y & Z Powerfeeds, DRO & Air Power Drawbar 3HP, 220V 3Phase 1008136 | |
| APPLICATION | Metal Working |
| BRAND COMPATIBILITY | Baileigh |
| Brand | Baileigh |
| HORSEPOWER | 3 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL TYPE | Milling Machines |
| VARIABLE SPEED | Yes |
| VOLTAGE | 208V-240V 3Ph |
