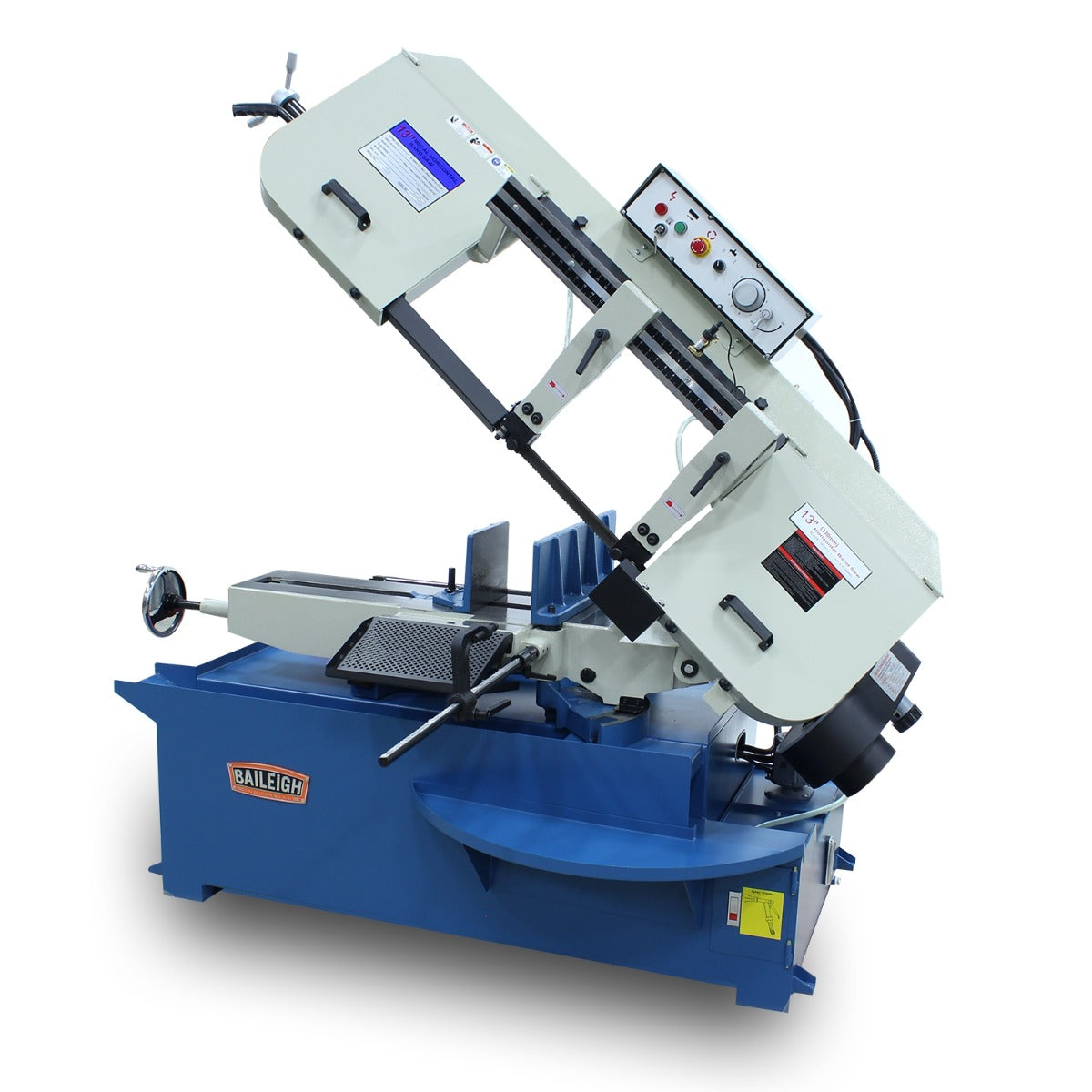

1001517, Baileigh BS-330M-Metal Cutting Band Saw
In 2005, Baileigh introduced the BS-330M manual mitering band saw. With steel frames and smooth hydraulic descent, these saws have given shops trouble-free productivity for 10+ years.
Features:
- Maximum capacity of 13” OD round at 90°.
- Accepts a large 1.25” blade.

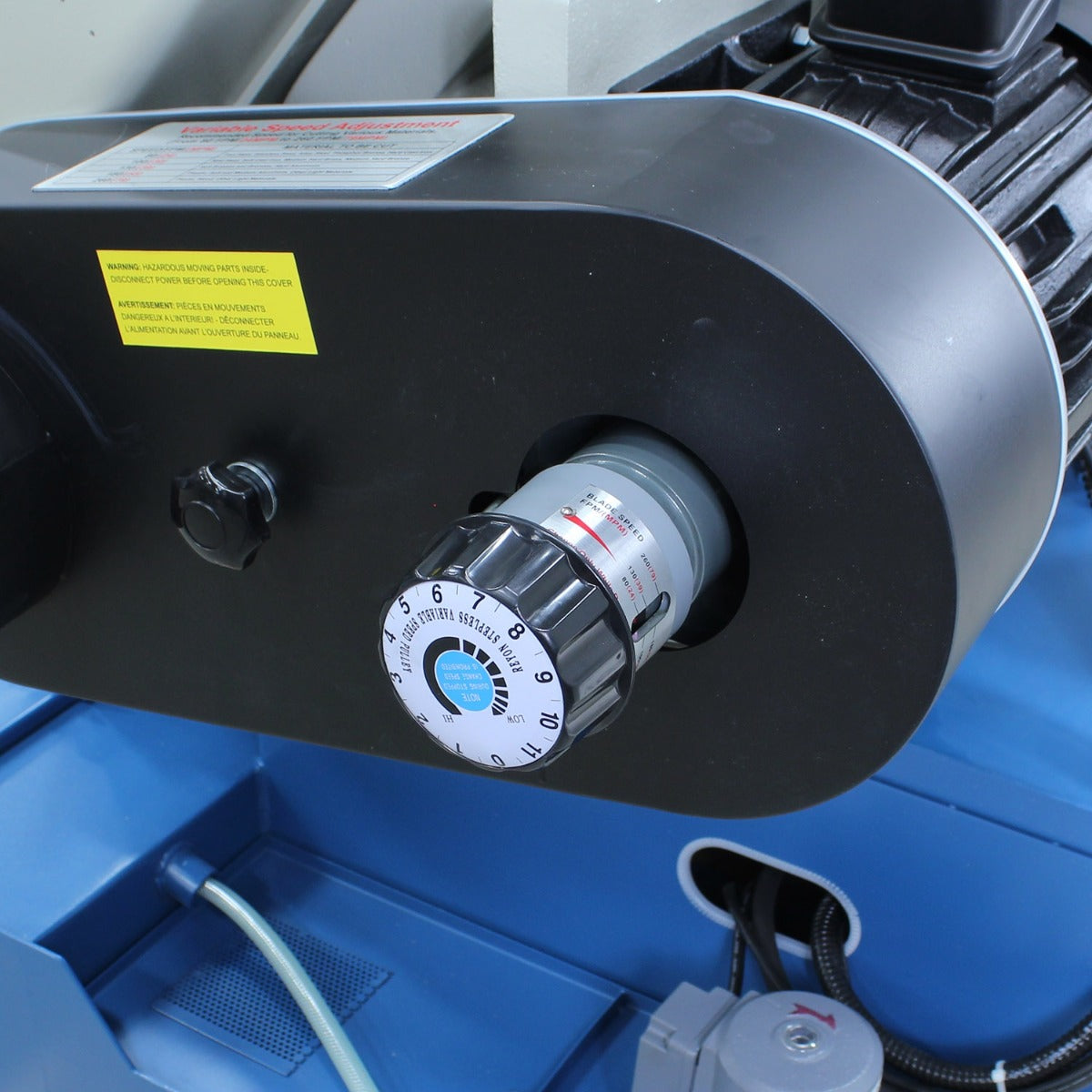

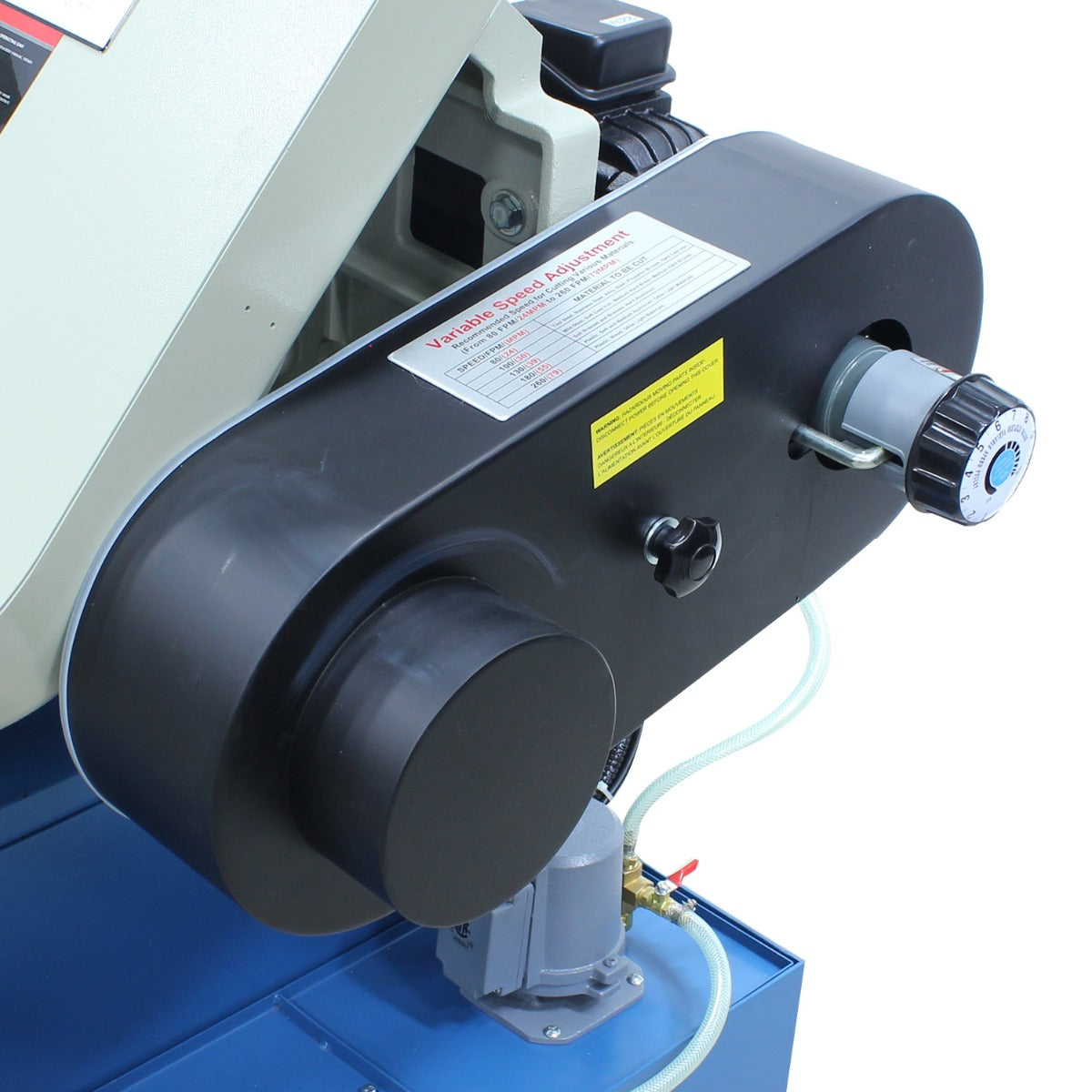

- Variable blade speed from 82 to 270 fpm lets you choose the right speed for metal, plastic, and wood.
- 3 hp motor runs on 220-volt triple-phase power, more reliable and efficient than single-phase.

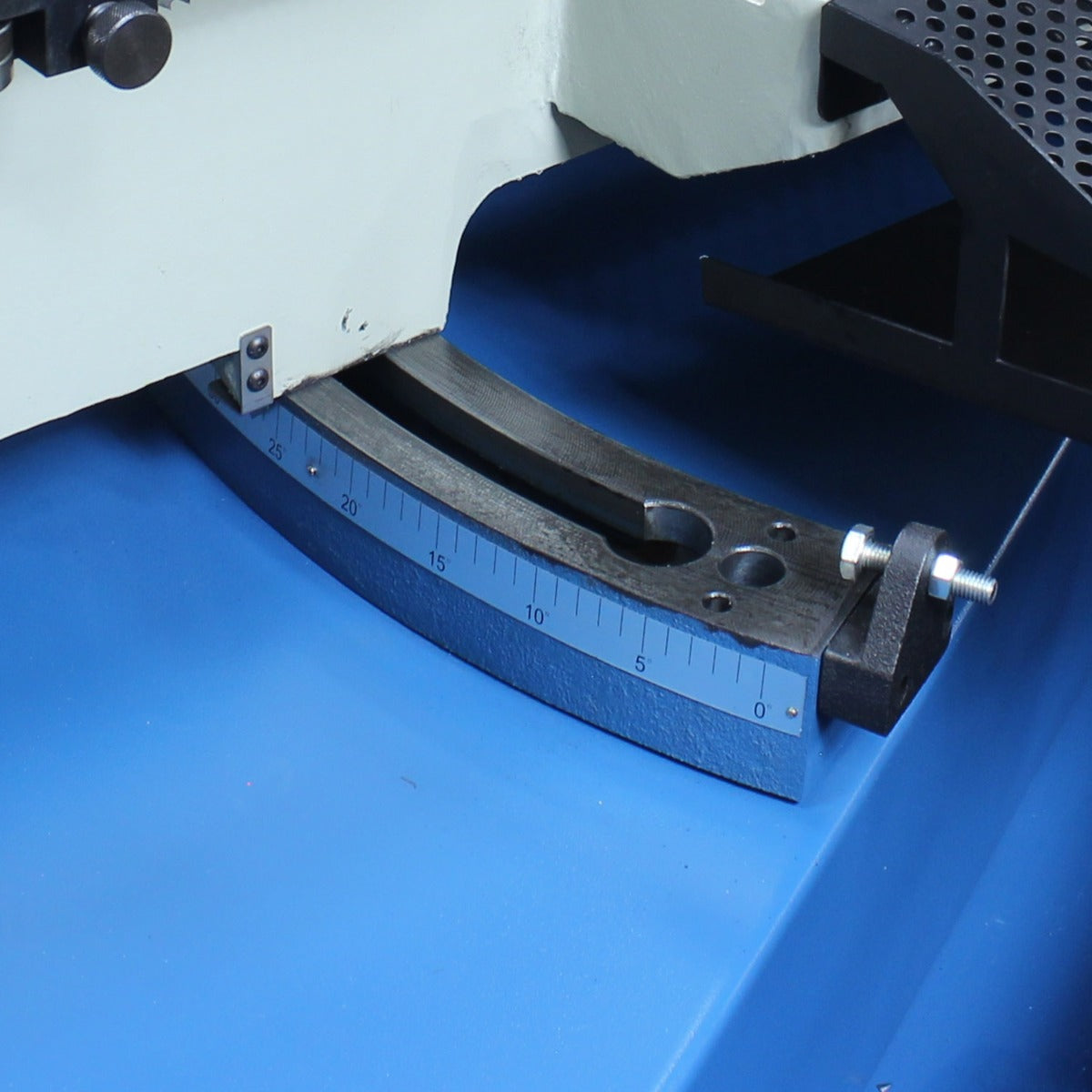

- Saw head miters up to 45°.
- Heavy cast iron head and bow reduce vibrations while cutting.

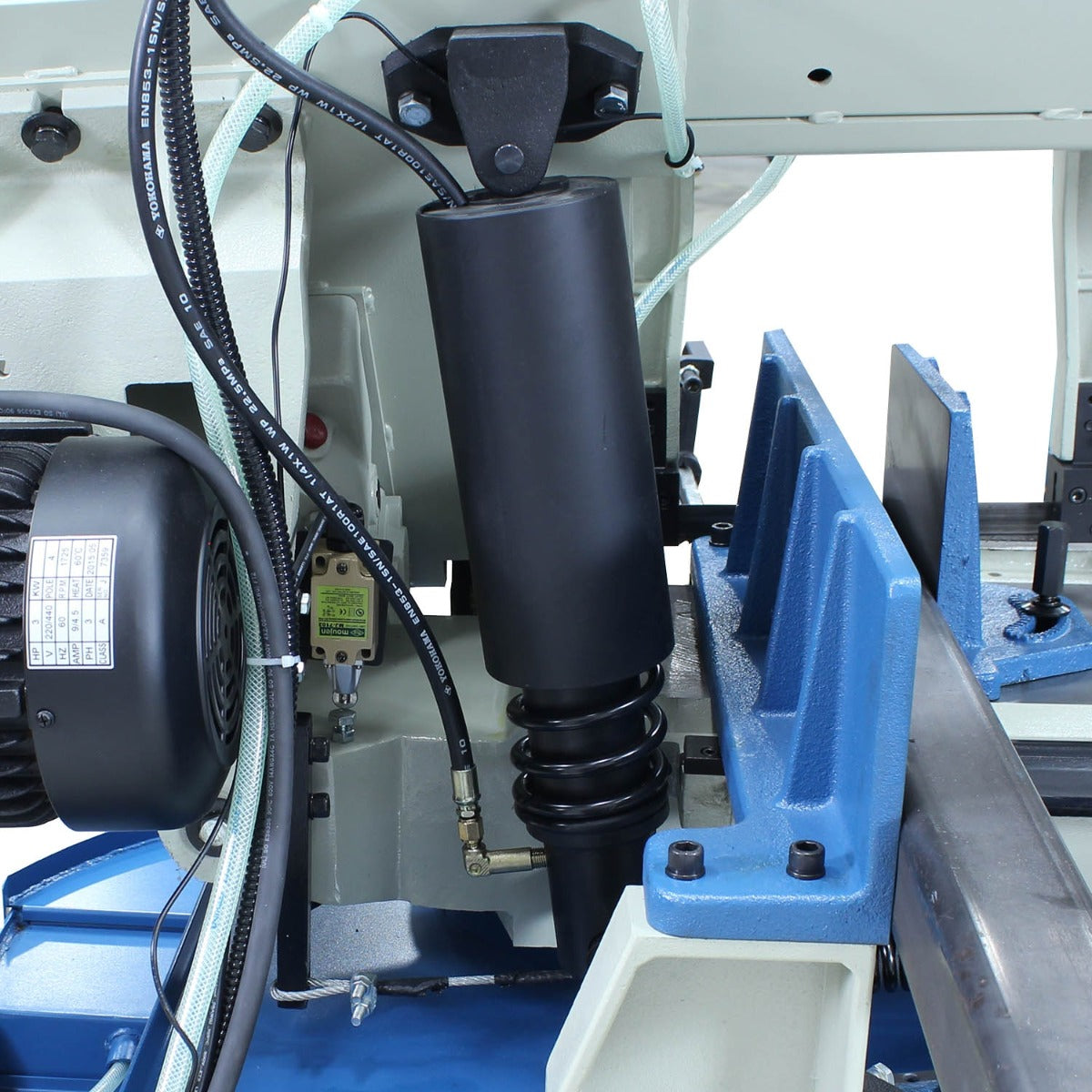

- Hydraulic descent makes production runs more efficient, increases blade life, and reduces operator fatigue.
- Tungsten carbide blade guides get as close as possible to the material to allow for more precise cuts.
- Laser guide helps you see where your cut will be and line it up.
- Durable steel flywheels drive the blade.

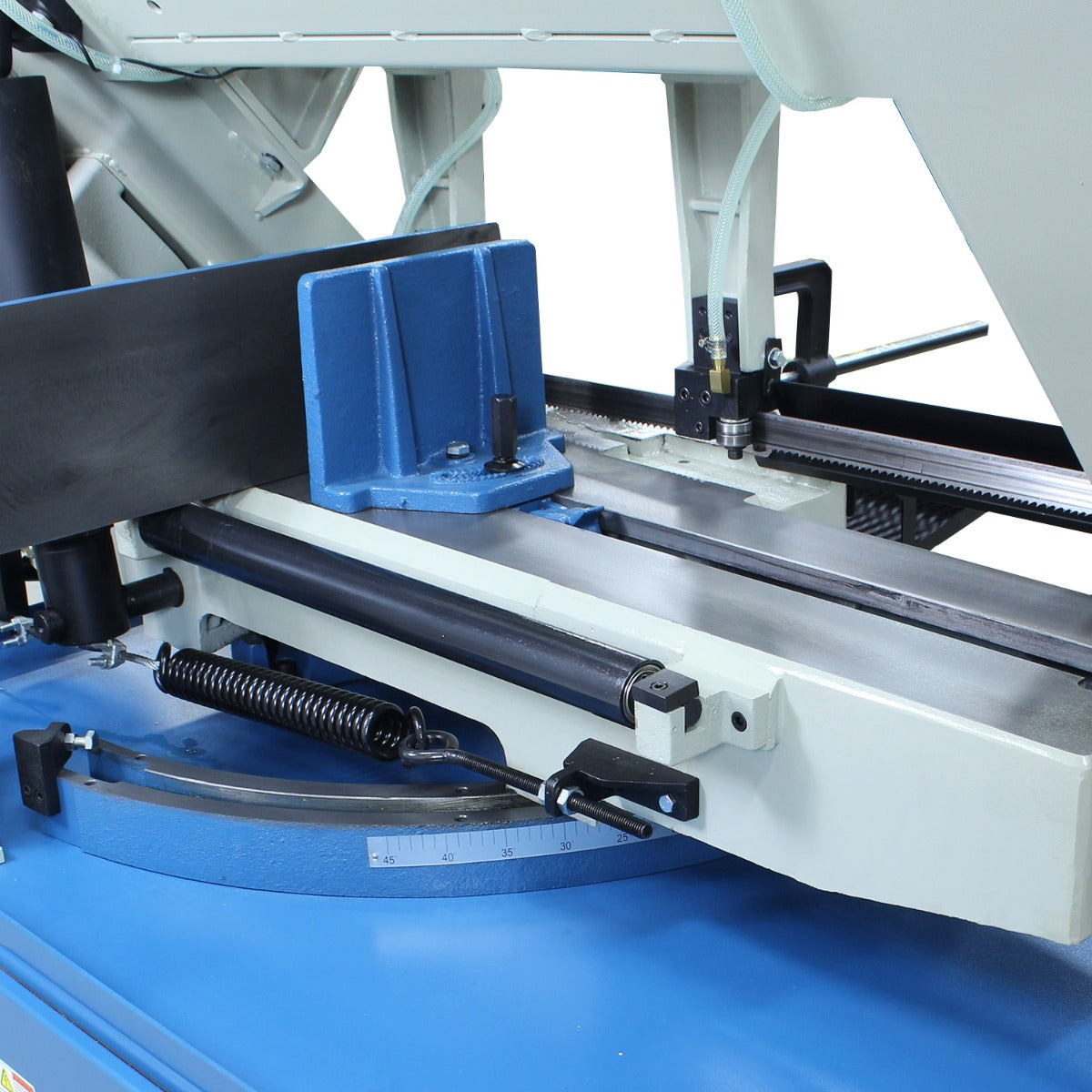

- Adjustable vise can move back and forth. A quick cam lock system holds it in place.

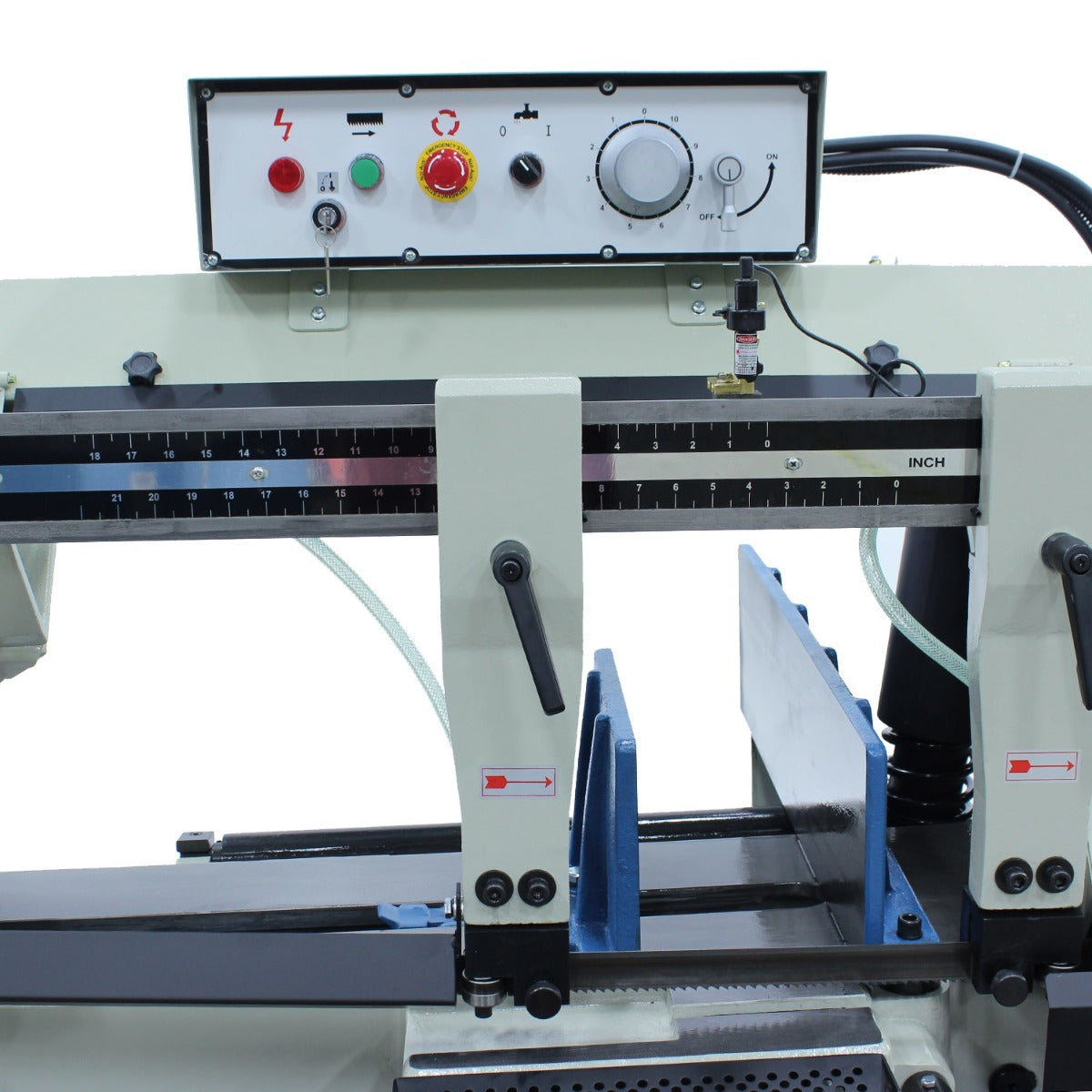

- Control panel has large start and emergency stop buttons and a dial for adjusting the speed.
- Swing-away material stop enables you to easily make repeatable cuts.

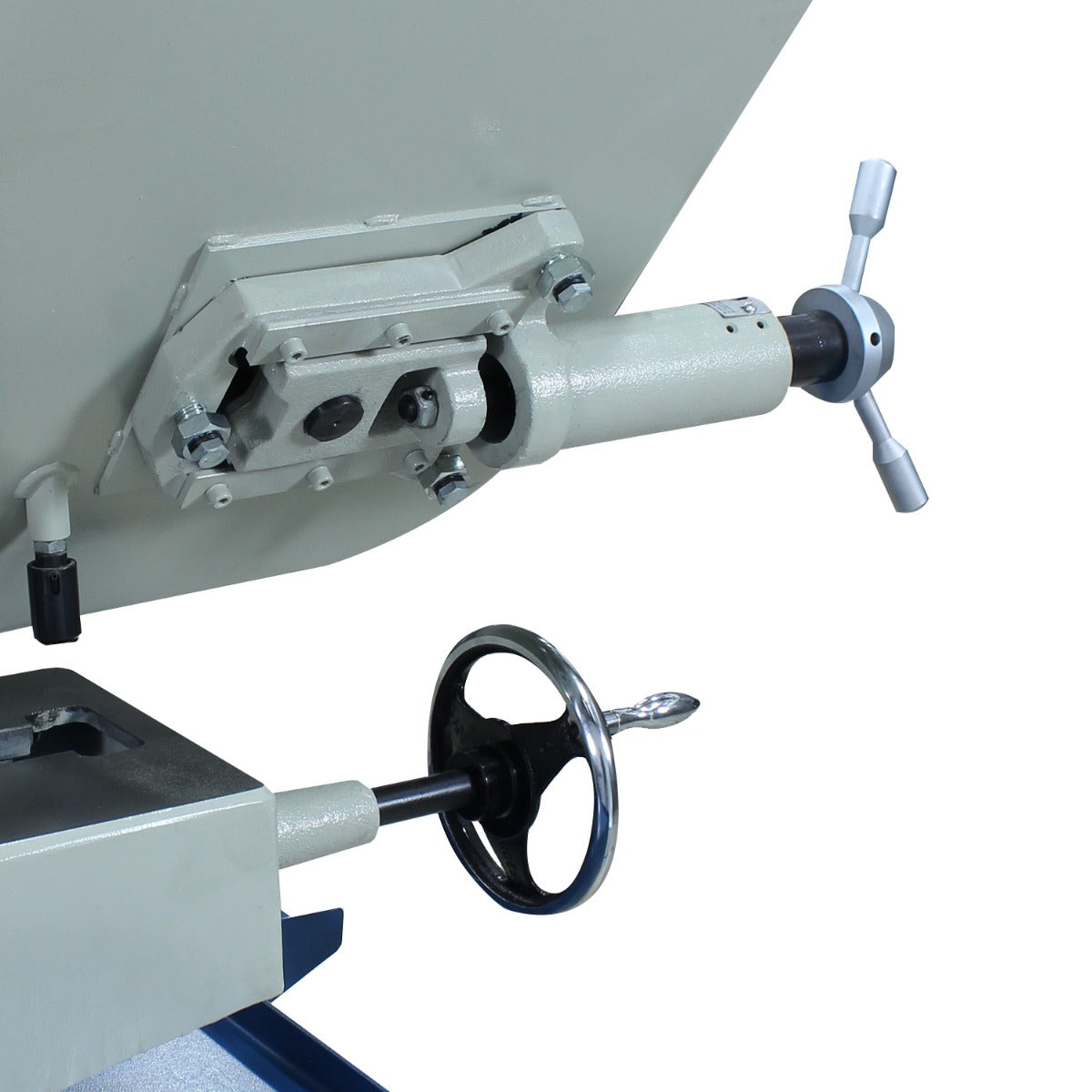

- Baileigh’s patented blade tension gauge takes the effort out of getting the tension right. Just line the arrow pointer up with the green zone and you’re good to go.

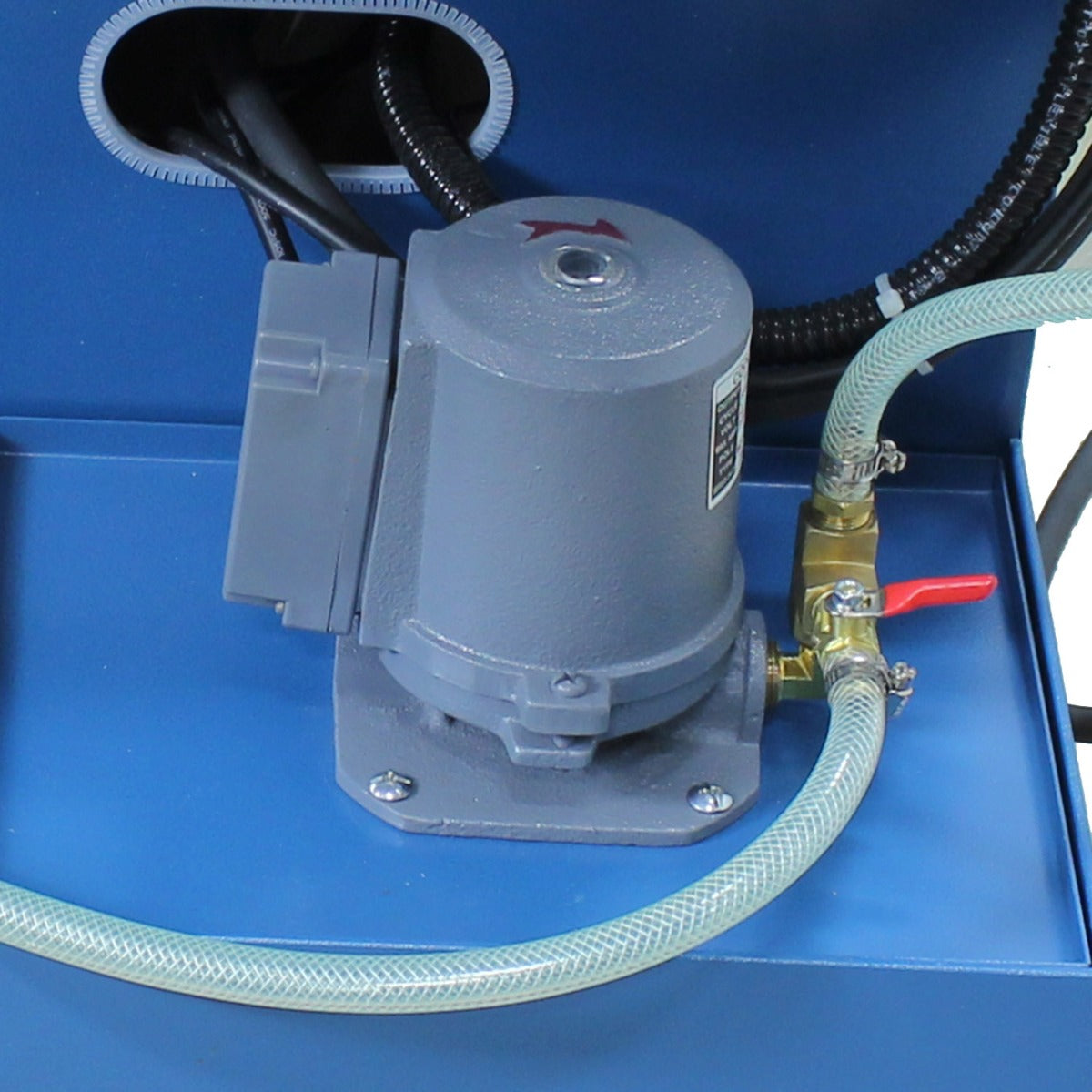

- Comes standard with a flood coolant system that will wash away metal shavings and prolong blade life.
- Heavy electro-welded steel construction minimizes vibrations to keep cuts accurate.
- Weighs over 1,800 lbs.
- Automatic shut-off safety feature stops the blade from running when the saw gets to the bottom of the cut.
- This metal band saw and its replacement parts are almost always in stock for quick deliveries.
- Covered by a 1-year parts warranty.
- You can count on lifetime technical support by phone from our team of reps, all with hands-on machine experience.
Specifications:
- Item Number: BS-330M
- Return: Manual
- Miter Adjustment: Swivel Head and Vise
- Miter Angle: 0 – 45°
- Motor: 3 hp
- Capacity Rectangular 90° x 45°: 13" x 18.9" / 11" x 10.04"
- Capacity Round 90° x 45°: 13" x 8.86"
- Capacity Square 90° x 45°: 13" x 8.86"
- Table Height: 30.5"
- Blade Guide: Carbide x Roller
- Blade Size: 1.3" x .043" x 161.4"
- Blade Speed (fpm): 82–270
- Descent Control: Hydraulic
- Drive: Belt x Pulley
- Power: 220V / 3-phase
- Shipping Weight: 1830lbs
- Shipping Dimensions (Inches): 90x37x63
Specifications
Specifications
| Baileigh BS-330M; 13" Variable Speed Bandsaw 3HP, 220v, 3 Phase 1001517 | |
| APPLICATION | Metal Working |
| Brand | Baileigh |
| HORSEPOWER | 3.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Band Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 208V-240V 3Ph |
