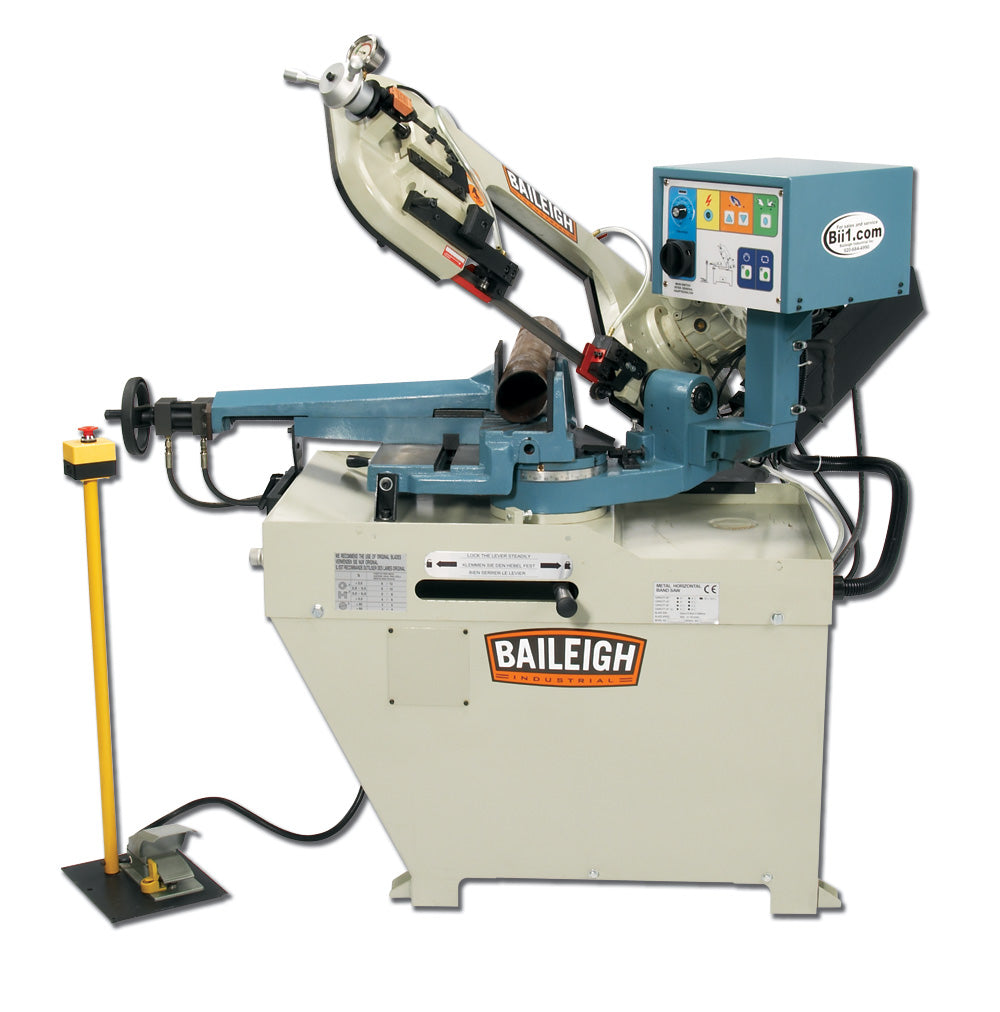

Baileigh BS-260SA; 8.66" Variable Speed Dual Mitering Semi-Automatic Bandsaw 1-1/2 220 Volt Single Phase 1001438
Baileigh BS-260SA; 8.66" Variable Speed Dual Mitering Semi-Automatic Bandsaw 1-1/2 220 Volt Single Phase 1001438
Couldn't load pickup availability
Details
Details
1001438, Baileigh BS-260SA-Dual Mitering Semi-Auto Bandsaw
Similar to our BS-260M, the BS-260SA semi-automatic bandsaw manages faster turnaround times. We designed this model with foot pedal controls for production runs.
Features:
- Maximum capacity of 8.93” round at 90°.
- Dual-angle head cuts at up to 60° right and up to 45° left, making it one of the most versatile mitering band saws on the market.
- Quick-release head lock allows you to change the miter angle in seconds.
- Industrial-grade hydraulic system runs on 220-volt single-phase power.
- Foot pedal controls the clamping of material as well as the raising a lowering of the saw head (both automatic).
- AC inverter controls the speed of the 1.5 hp motor—a big improvement over the old DC driver board set-up. Inverters are more reliable and last longer.
- Adjust the variable speed from 66 to 280 fpm to fit the material and the application and extend blade life.
- Cast iron bow and pivot head plus a heavy-duty reinforced sheet metal base provide a rigid platform to ensure the straightest cuts.
- Hydraulic blade break switch automatically shuts the machine down if the blade should break.
- Comes standard with a coolant system, which will extend the machine’s lifetime of use.
- Baileigh covers this horizontal band saw with a 1-year parts warranty.
- We typically keep this metal-cutting band saw and its replacement parts in stock for fast deliveries.
- Includes lifetime technical support by phone. Call up our team of reps, all of whom have hands-on machine experience, whenever you need help with the saw.
Specifications:
- Item Number: BS-260SA
- Motor Hp: 1.5
- Return Hydraulic
- Miter Adjustment Dual Swivel Head
- Miter Angle 0 – 60°, 45°L
- MotorHigh Torque: 1.1Kw (AC)
- Capacity Square 90 x 45 x 60 x 45L: 8.26” x 8.26” / 5.51” x 5.51” / 3.3” x 3.3” / 4.25” x 4.25”
- Capacity Round 90 x 45 x 60 x 45L: 8.66" / 5.9" / 3.54" / 4.33"
- Capacity Rectangular 90 X 45 X 45L: 10.23" x 4.25" / 5.7" x 4.92" / 6.3" x 1.77"
- Table Height: 33.34"
- Blade Guide: Carbide x Roller
- Blade Size: 1" x .035" x 96.85"
- Blade Speed (fpm): 66–280 Variable
- Descent Control: Pressure Assist Hydraulic
- Drive: Gear
- Power: 110 / 220V, 1-phase
- Shipping Weight: 890lbs
- Shipping Dimensions (Inches): 63x29x64
Specifications
Specifications
| Baileigh BS-260SA; 8.66" Variable Speed Dual Mitering Semi-Automatic Bandsaw 1-1/2 220 Volt Single Phase 1001438 | |
| APPLICATION | Metal Working |
| Brand | Baileigh |
| HORSEPOWER | 1.5 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Band Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 208V-240V 1Ph |
