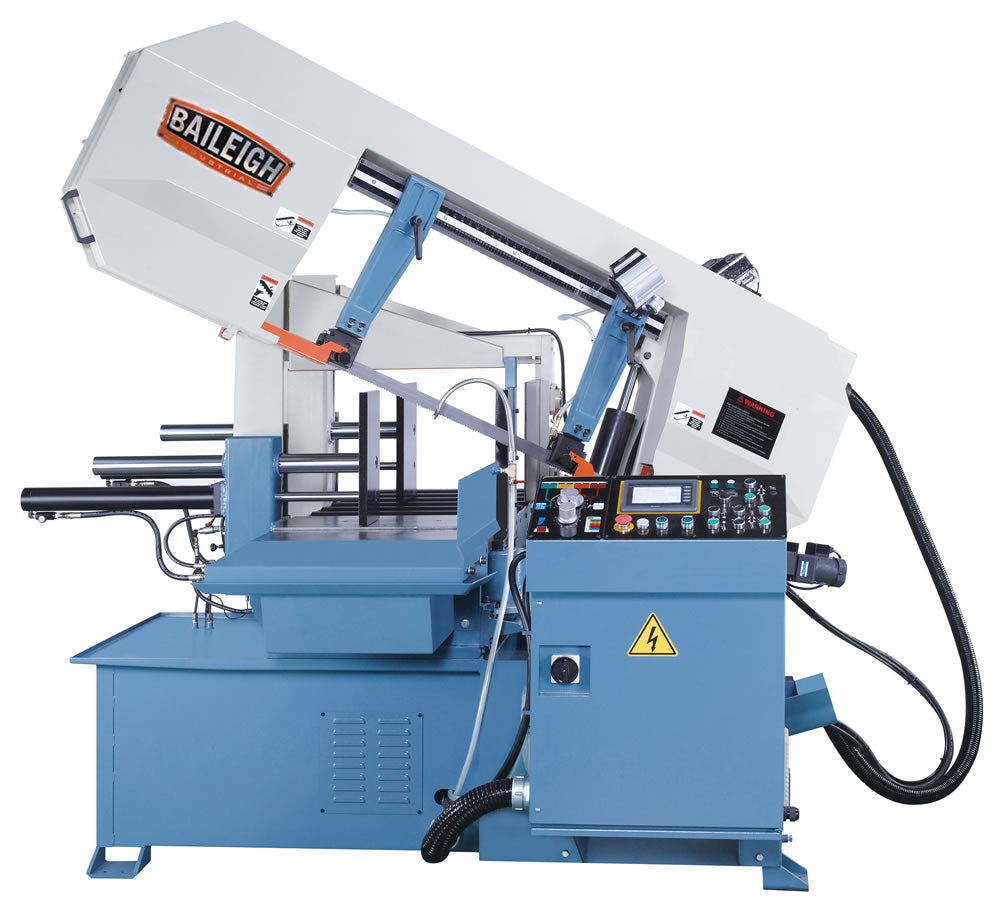

Baileigh BS-24A; 18" Automatic Bandsaw with Heavy Duty Bundling System and 5HP, 220 Volt Three Phase 1001374
Baileigh BS-24A; 18" Automatic Bandsaw with Heavy Duty Bundling System and 5HP, 220 Volt Three Phase 1001374
Couldn't load pickup availability
Details
Details
1001374, Baileigh BS-24A-220V 3PH Auto Metal Band Saw
We built this 3-phase automatic band saw to save you time and money. The hydraulic clamp and feed will speed up production. The durable steel frame maintains accuracy over years of hard use.
Features:
- 18” round capacity at 90°.
- Accepts a massive 1.5” blade (included). This width helps ensure fast, straight cuts.
- 65 to 279 fpm variable speed that you can fine-tune to fit your material.
- Adjustable speed prolongs blade life and increases the quality of your cuts.
- Swivel head miters up to 45°.
- Runs on 220-volt 3-phase power.
- Delta® inverter drives a powerful 5-hp motor.
- Fully automatic feed and cutting functions manage the transitions between cuts, increasing production rates.
- Hydraulic dual-clamp bundling allows you to cut multiple pieces of material at once.
- Feed system uses digital encoders for precise material placement.
- User-friendly touchscreen programmer lets you input cut lengths, number of cuts, and different settings for each program.
- You change the bow height, descent, and blade speed with the standard control panel buttons and dials.
- Operate the machine in automatic or manual mode.
- Automatic broken blade shut-off protects your shop’s safety.
- Patented blade tension device allows you to set the right tension in seconds. Just line up the easy-to-use liquid-filled gauge.
- Electro-welded steel framework reduces vibrations to produce accurate, high-quality cuts.
- Hydraulic chip auger removes debris after cutting.
- Bright halogen work light makes it easier to see what you’re cutting.
- Most replacement parts are typically in stock for quick shipping.
- We cover this horizontal band saw with a 1-year parts warranty.
- Includes lifetime technical support by phone from a team of reps with hands-on machine experience.
Specifications:
- Item Number
- BS-24A
- Return
- Hydraulic
- Miter Adjustment
- Swivel Head
- Miter Angle
- 0 – 45°
- Capacity Rectangular 90° x 45°
- 15" x 24"
- Capacity Round 90° x 45°
- 18" x 15"
- Chip Removal
- Hydraulic Auger
- Capacity Square 90° x 45°
- 18" x 15"
- Table Height
- 32.3"
- Blade Guide
- Carbide x Roller
- Blade Motor
- 5 hp
- Blade Size
- 1.5" x .051" x 209.84"
- Blade Speed (fpm)
- 65 – 279 (Variable Speed)
- Material Clamping Bundling
- Hydraulic
- Material Feed
- Hydraulic
- Hydraulic Motor
- 1 hp
- Descent Control
- Pressure Assist Hydraulic
- Power
- Manual
- Shipping Weight
- 3900lbs
- Shipping Dimensions (Inches)
- 107x92x76
Specifications
Specifications
| Baileigh BS-24A; 18" Automatic Bandsaw with Heavy Duty Bundling System and 5HP, 220 Volt Three Phase 1001374 | |
| APPLICATION | Metal Working |
| Brand | Baileigh |
| HORSEPOWER | 5.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Band Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 208V-240V 3Ph |
