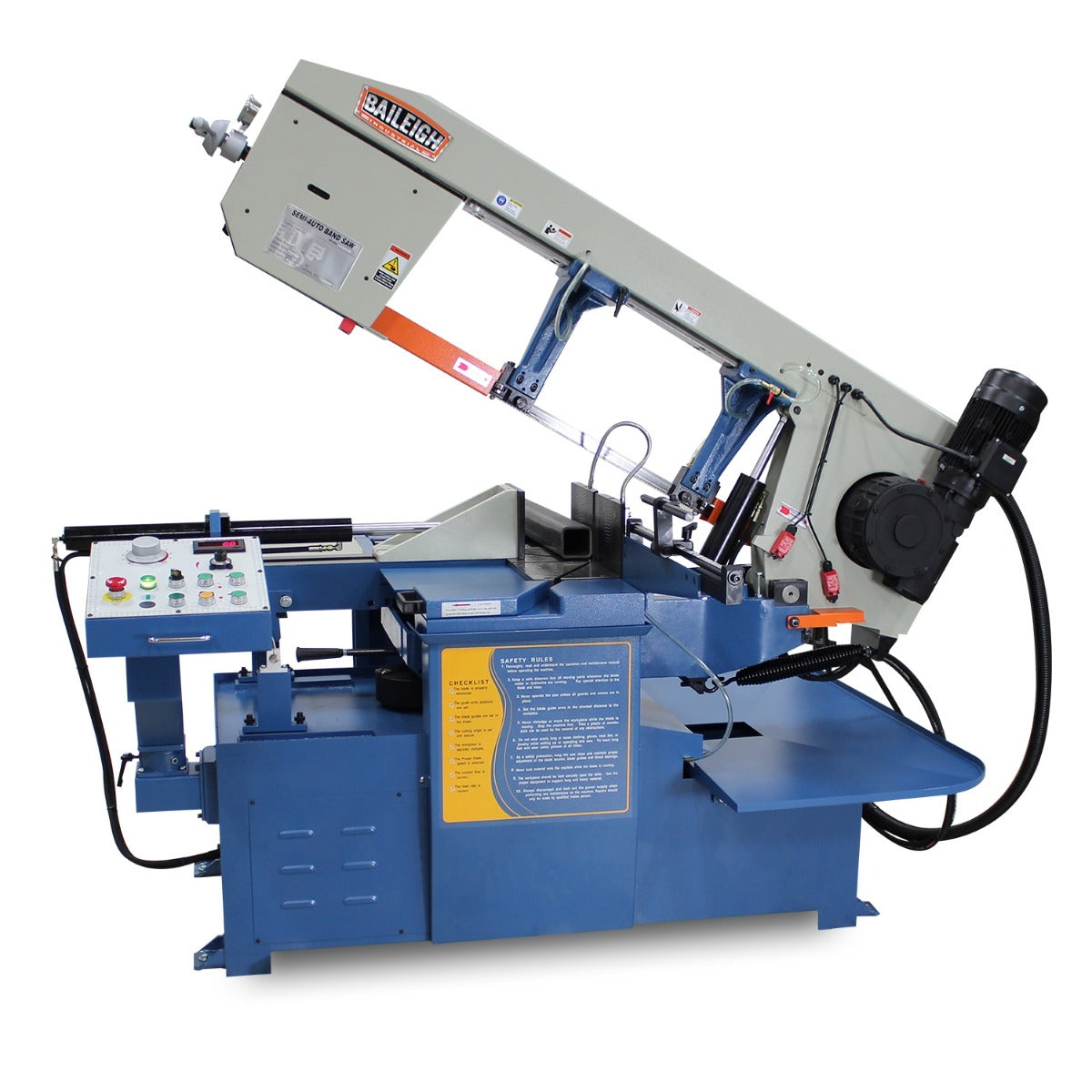

1001298, Baileigh BS-20SA-DM-13" SA Dual Mitering Bandsaw
We built this semi-automatic hydraulic bandsaw machine with a cast iron bow and steel frame to offer decades of reliable quality. Its hydraulic system will speed up production and save you effort.
Features:
- Maximum capacity of 13” OD round at 90°.
- Accepts a 1.25” blade (included). The large size makes faster and more accurate cuts.
- Dual-mitering band saw can move 45° left and 60° right. Just push or pull the head to the right angle.

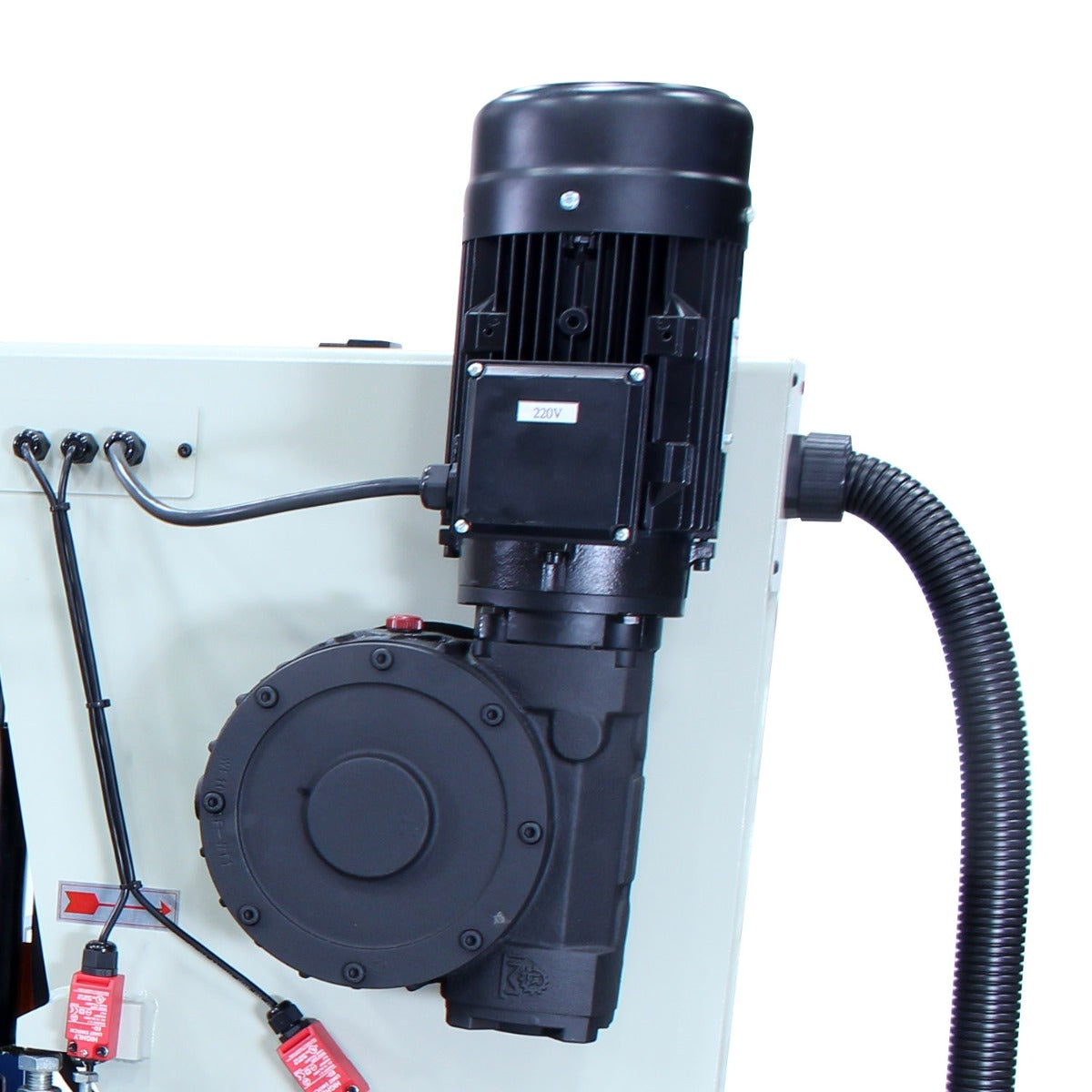

- Inverter drive allows for infinite blade speed adjustments from 69 to 306 fpm.
- You can fine-tune the speed for materials like mild steel, bronze, or aluminum.

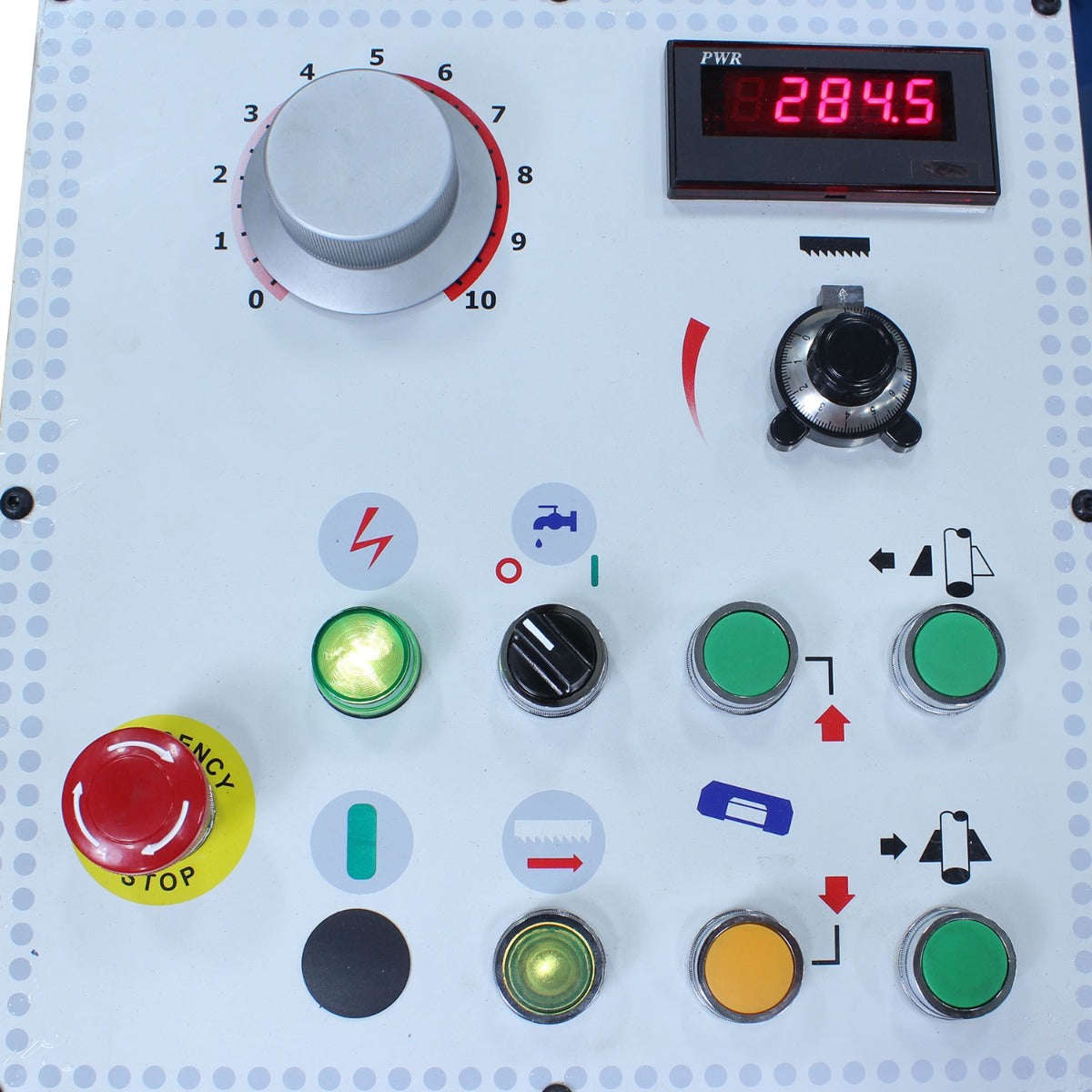

- Digital readout (DRO) allows you to reproduce settings with ease.
- Available in 220-volt or 440-volt triple-phase models (440-volt is a special order).
- Cast iron bow resists vibrations and helps to ensure a high-quality cut.

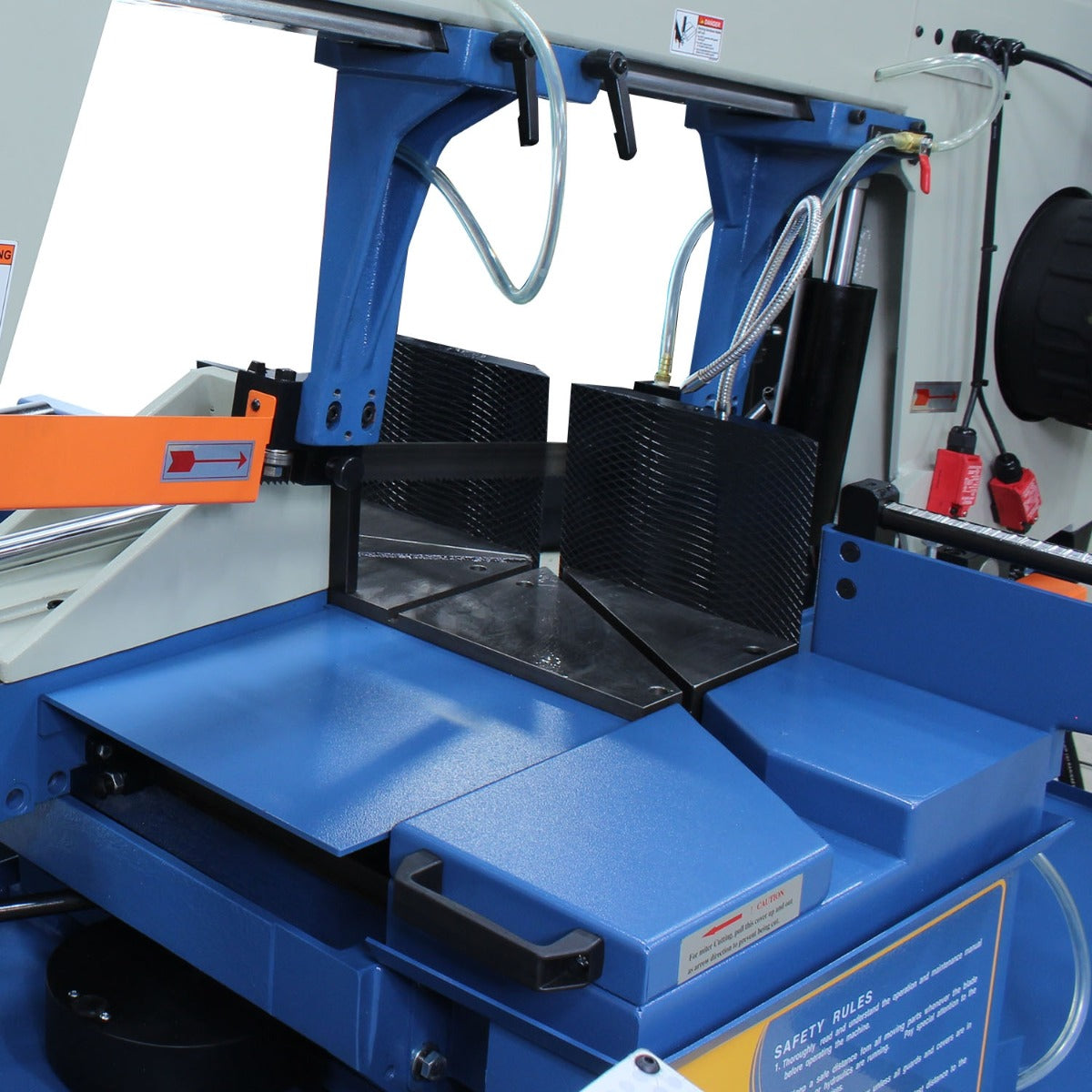

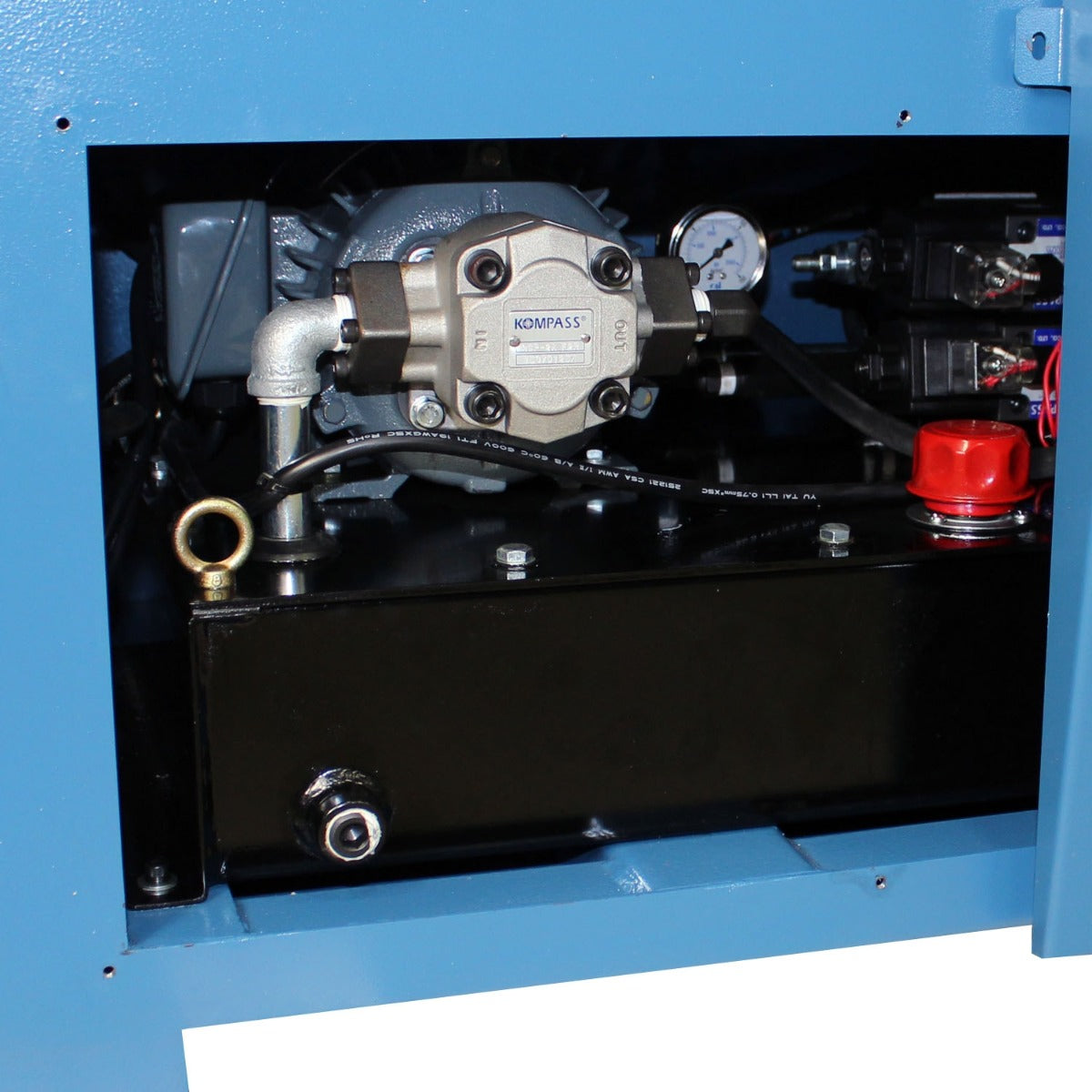

- Hydraulic vise, downfeed, and bow return make production runs more efficient. Set down the material, press start, and the saw will automatically handle the rest.
- You can adjust the hydraulic descent pressure (depending on the material) to achieve faster cut times and longer blade life.
- Cutting head return position can be altered for faster cycle times between cuts on smaller pieces.

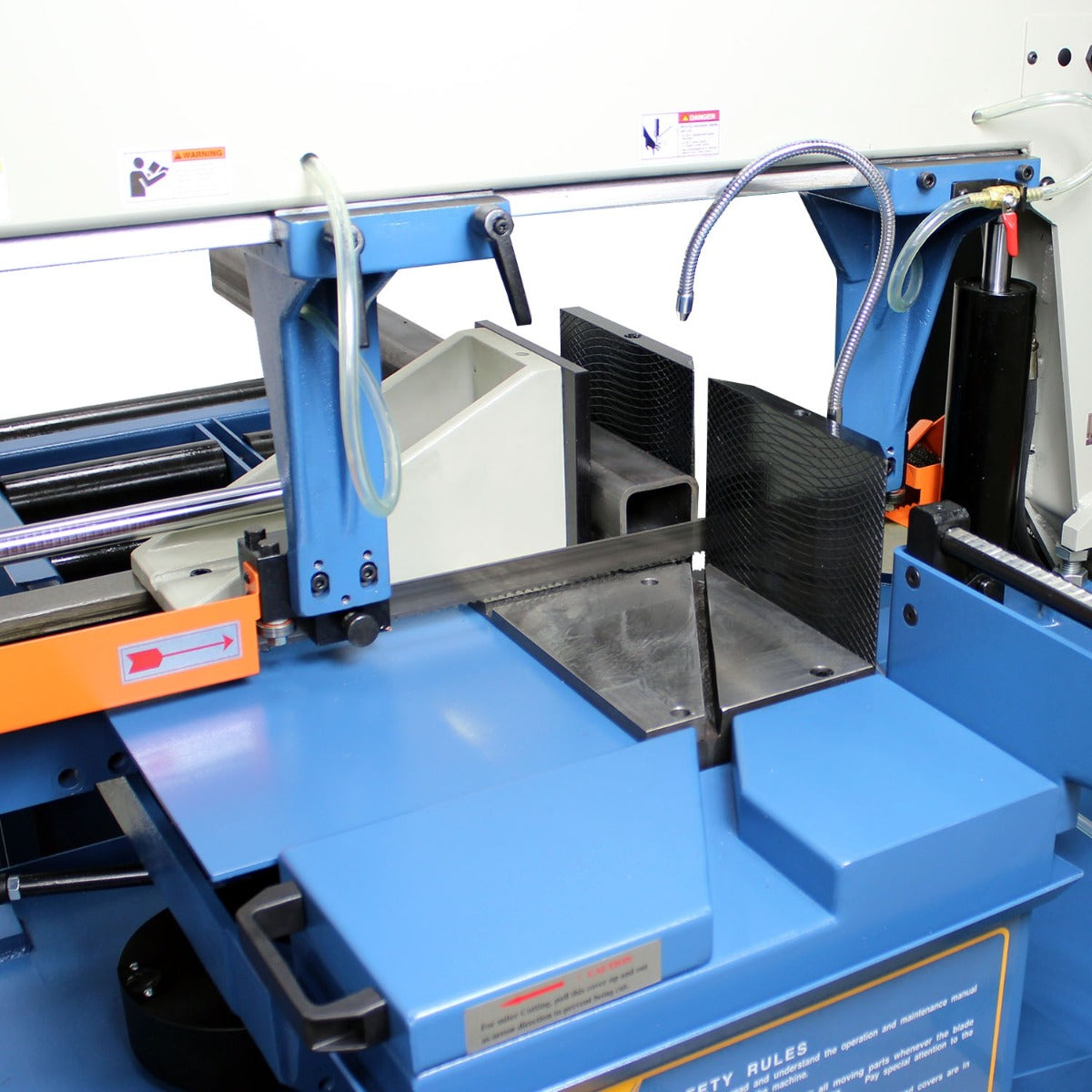

- Comes with heavy-duty infeed and outfeed tables for easier material handling.

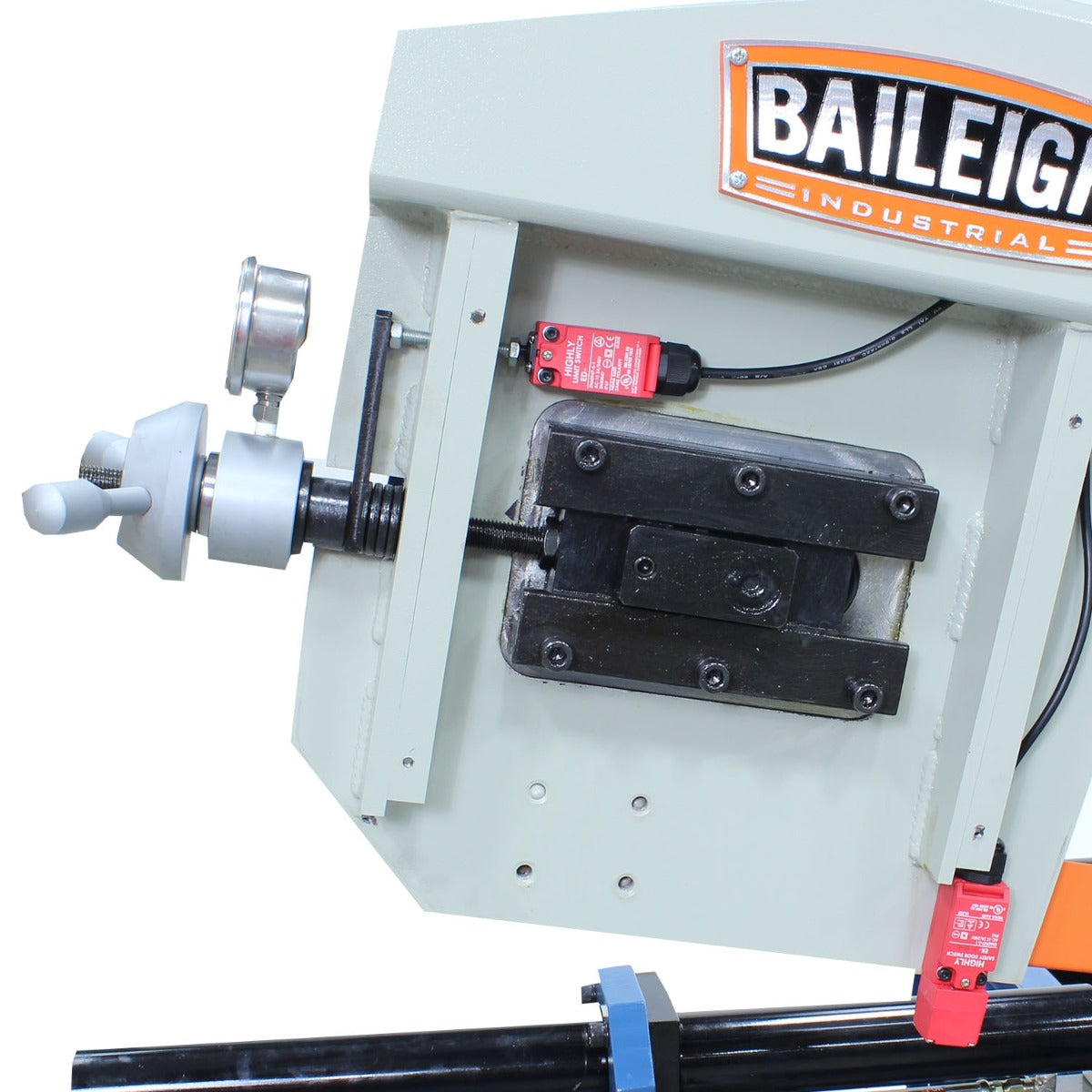

- Our patented blade tension device lets you easily set the right tension. Adjust until the black arrow lines up with the green liquid-filled gauge.
- Electro-welded steel frame gives the machine structural strength to maintain accuracy.
- Compact floor plan conserves space in your shop.

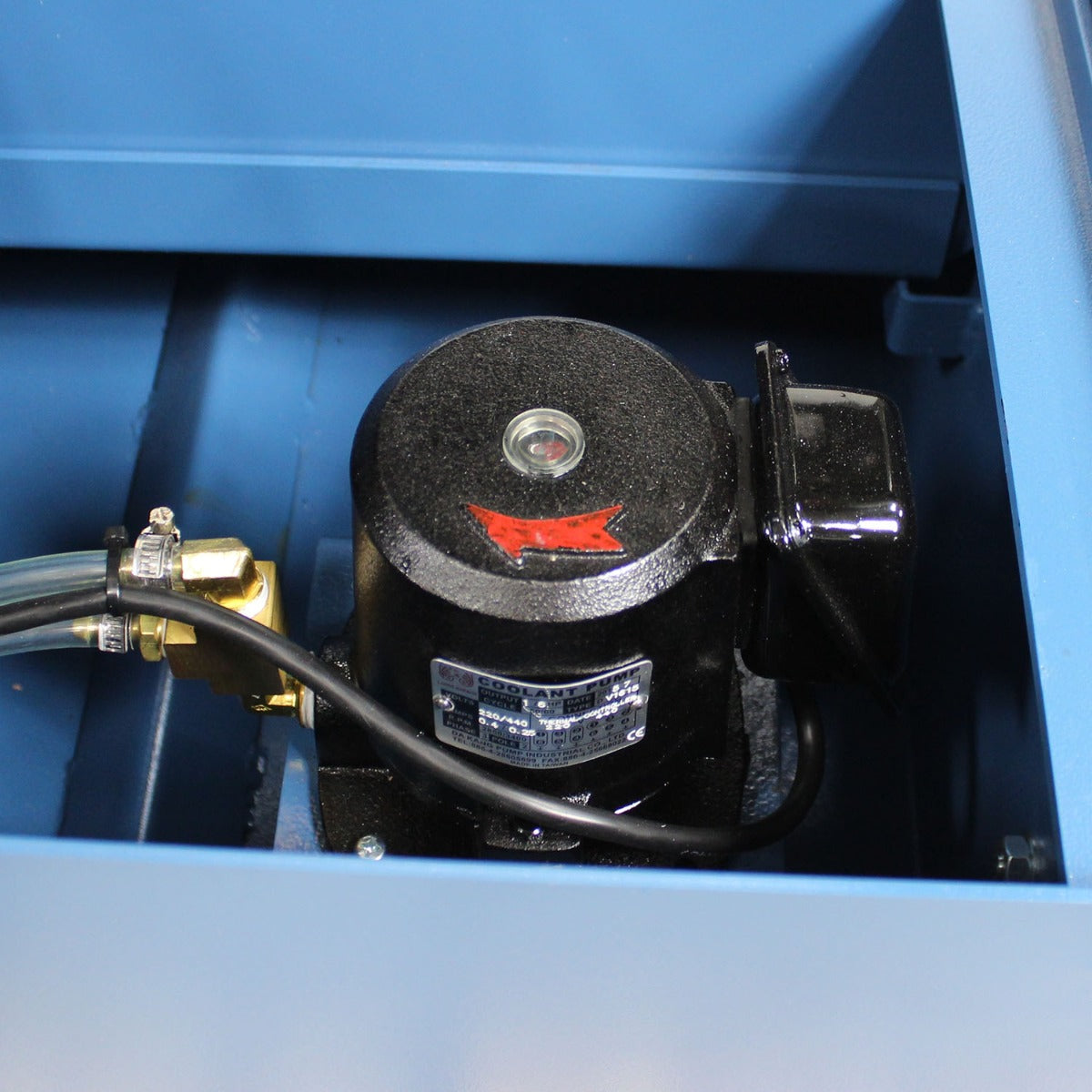

- High-pressure flood coolant system washes away metal chips and helps blades last longer.
- We typically keep this horizontal band saw and its parts in stock for fast deliveries.
- This dual miter band saw is covered by a 1-year parts warranty.
- You can count on lifetime technical support by phone. Talk to a Baileigh rep with hands-on machine experience whenever you need help.
Specifications:
- Item Number: BS-20SA-DM
- Return: Hydraulic
- Miter Adjustment: Dual Miter Swivel Head
- Miter Angle: 0 – 60°, 45°L
- Motor: 3 hp
- Capacity Rectangle 90°: 13" x 18" / 13" x 10.6" / 12.4" x 7.7"
- Capacity Round 90°/ 45° / 60°: 13" x 12" x 8.5"
- Capacity Square 90°/ 45° / 60°: 13" x 12" x 8.5"
- Blade Guide: Carbide / Roller
- Blade Size: 1.25" x .042" x 162.6"
- Blade Speed (fpm): 60 - 306 Inverter Driven
- Descent Control: Pressure Assist Hydraulic
- Drive: Inverter Direct
- Power: 220V or 440V 3-Phase (440V special order)
- Shipping Weight: 2370lbs
- Shipping Dimensions (Inches): 90x36x66
Specifications
Specifications
| Baileigh BS-20SA-DM; 13" Semi Automatic Variable Speed Dual Mitering Band Saw 3hp, 220V 3 Phase 1001298 | |
| APPLICATION | Metal Working |
| Brand | Baileigh |
| HORSEPOWER | 3.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Band Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 208V-240V 3Ph |
