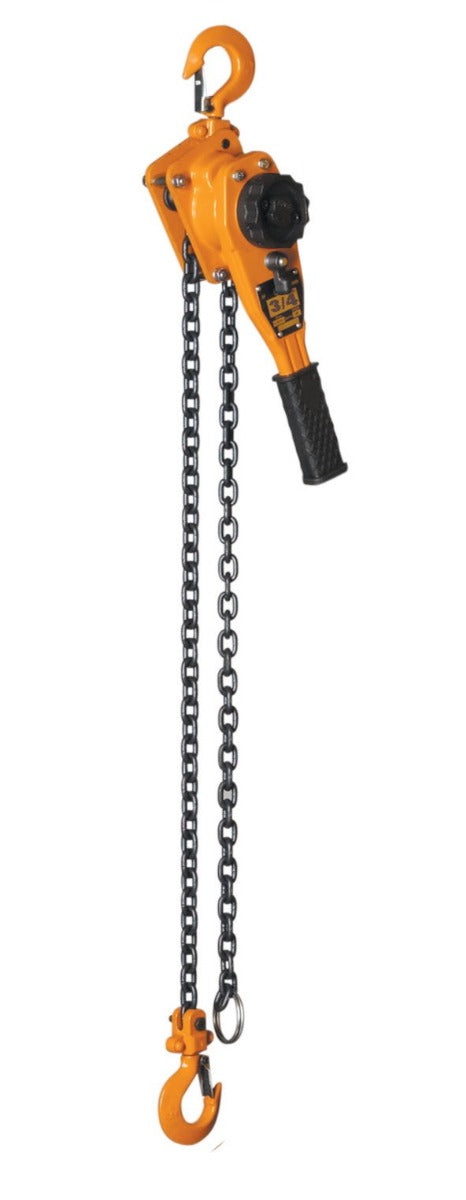

MAGNA 3/4 Ton Lever Hoist, 20 ft. Lift LH07520
The MAGNA LH07520 is a versatile 3/4 Ton (1,650 lbs) lever hoist equipped with 20 feet of lift, suitable for overhead work and long-distance pulling. Built for durability, it features a heavy-duty steel frame and gear case that protects the internal mechanism. The unit utilizes high-quality Grade 80 alloy load chain and is completely repairable, offering excellent long-term value.
This hoist excels in adverse conditions, pre-lubricated with grease that prevents freezing down to -45°C (-49°F). It includes a Weston-style mechanical load brake for positive holding and a free-chaining mode for rapid hook adjustment. Every unit is load tested to 150% of its capacity, ensuring it meets strict safety standards for industrial and construction environments.
Features & Benefits
- Extended Lift: 20-foot chain length allows for high-bay and long-reach operations.
- Repairable: Easy-access design permits complete maintenance and repair.
- Cold Weather Performance: Grease rated for -45°C (-49°F) prevents seizing.
- High Safety Margin: Proof tested to 150% of the rated capacity.
- Durable Components: Grade 80 chain and steel body ensure longevity.
- Ergonomic: Rubber grip handle provides comfort and control.
Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Zinc Plated Load Chain, Chain Bag, PTR100 (1 Ton Plain Trolley), GTR100 (1 Ton Geared Trolley), BC100P/BC100RE (1 Ton Beam Clamp)
Specifications
- Model Number: LH07520
- Working Load Limit (WLL): 3/4 Ton (1,650 lbs)
- Standard Lift: 20 ft.
- Load Chain Dimensions: 6.3 x 19.1 mm
- Load Chain Grade: Grade 80
- Number of Falls: 1
- Pull to Lift Full Load: 59 lbs
- Headroom (Dimension C): 11.02 in.
- Handle Length (Dimension D): 11.02 in.
- Hook Throat Opening (Dimension G): 1.06 in.
- Net Weight: 24.9 lbs
Specifications
Specifications
| MAGNA Lifting Products 3/4 Ton Lever Hoist, 20 ft. Lift LH07520 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 20 ft |
| LIFTING CAPACITY | 3/4 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Lever Hoists |
| TOOL TYPE | Hoists |
