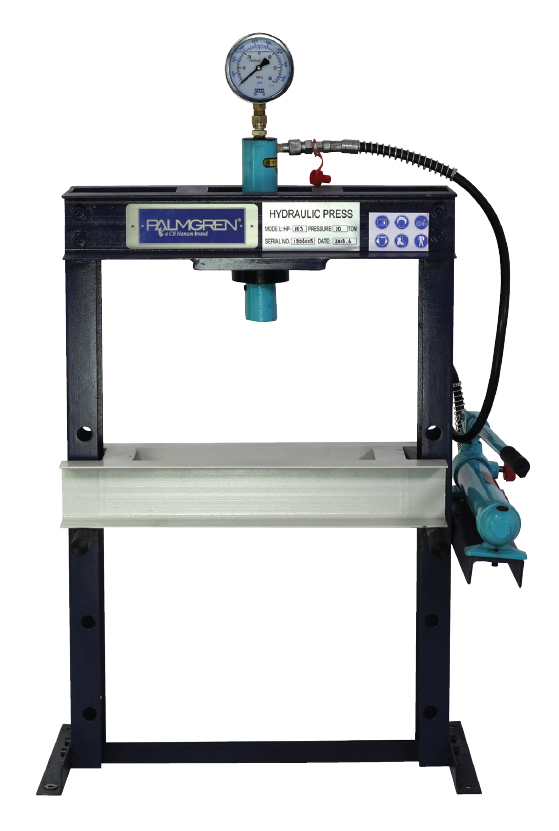

9661611, Palmgren Hydraulic Press, 10T, Manual Pump 60in

Palmgren’s Hand Operated H-Frame Press Line consists of 10, 25- and 75-ton presses. Each machine is constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution for the serious fabrication and machine shop owner who demands the only the best quality from his operation.

Features:

• Pressure gauge for direct pressure readings
• Easily adjustable table for quick height changes between applications
• Holes in side frames allow for insertion of long material
• Hand operation for economic performance
• Efficient hand pump is conveniently located for reduced operator fatigue
• Fully-welded heavy steel plate frame for maximum rigidity
• Factory preset relief valve to prevent exceeding maximum pressure capacity
• By-pass hole prevents excessive ram extension
• Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve
• Single acting cylinder design for improved operation

Specificaitons:

• Maximum Pressure 10 TON
• Ram Size 6.3 In
• Ram Diameter 1.5 In
• Throat Capacity 19.5 x 11.81 In
• Largest Arbor Extension 6.3 In
• Maximum Work Diameter 19 x 40 In
• Minimum Work Diameter 19 x 0.04 In
• Leverage Radio 400/1 Lbs
• Table Weight 22 Lbs
• Dimensions 23“x17”x60” L x W x H
• Weight 130 kgs
