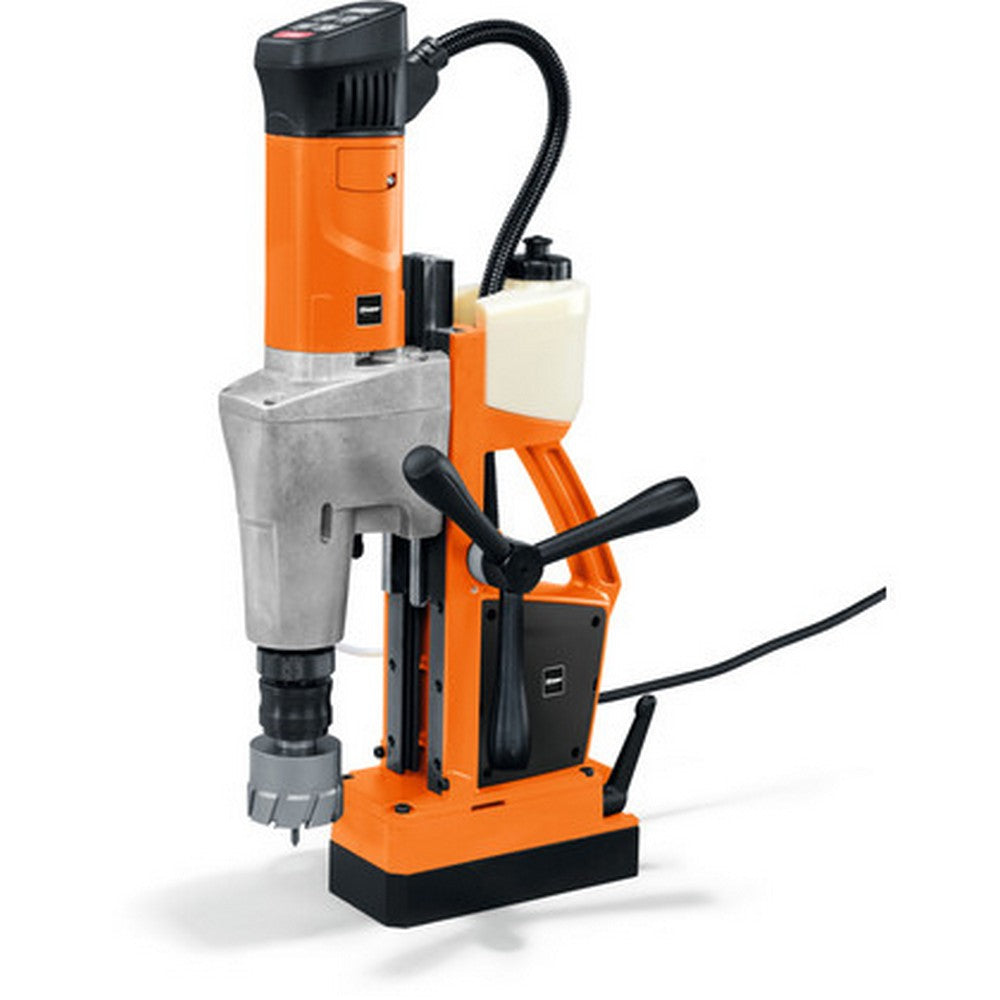

72704761120, Fein Slugger JCM 256U, 120V, 2-1/2in, Carbide Magnetic Drill
High-performance with 2-speed gearbox and outstanding functionality for universal and efficient use in the workshop.
Features:
- Stable speed, even in the toughest applications.
- Fine drill spindle adjustment for convenient machine alignment.
- Double drill motor guides enable use of the largest core bits.
- Optional Weldon QuickIN arbor is available. (uses standard 3/4 in Weldon shank cutters).
- Reversible
- Electronic speed control.
- MK3 interface.
- High magnetic holding force.
- Convenient magnetic holding force gauge.
- Integrated cooling tank.
Specifications:
- Core bit max. dia. 2 9/16 in
- HSS core bit max. dia.1 3/4 in
- Core drill, max. drilling depth 2 in
- Twist drill max. dia.1 mm
- Tapping 5/8 in
- Max. countersinking dia.2 in
- Reaming max. dia.1 in
- Power consumption 1,300 Watts
- Power output 730 Watts
- 1st gear 120-240 rpm
- 2nd gear 260-520 rpm
- Core bit holder QuickIN
- ChuckMT 3
- Stroke 5 11/16 in
- Adjustment range ± 6 mm
- Drill stand angular adjustment ± 7°
- Magnetic holding force 3,080 lbs
- Magnetic base sizes 8 1/16 x 3 3/4 in
- Cable with plug 13 ft
- Weight according to EPTA 35.5 lbs

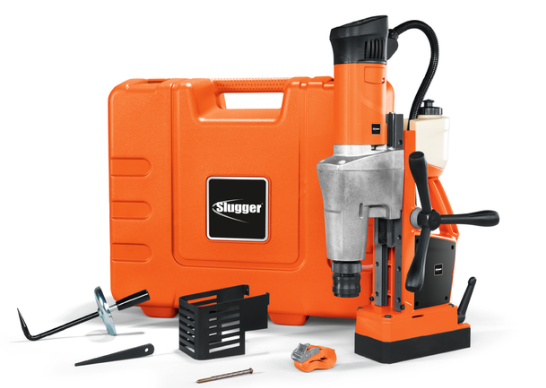

Includes:
- 1 case
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 1 pilot pin
- 1 touch guard
- 1 drift key
Specifications
Specifications
| Fein Slugger 2-1/2in Carbide Magnetic Drill JCM 256U, 120V 72704761120 | |
| APPLICATION | Wood Working / Metal Working |
| Brand | Fein |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Drills - Magnetic Drills |
| TOOL TYPE | Drills |
| WATTAGE | 1001-1500 |
