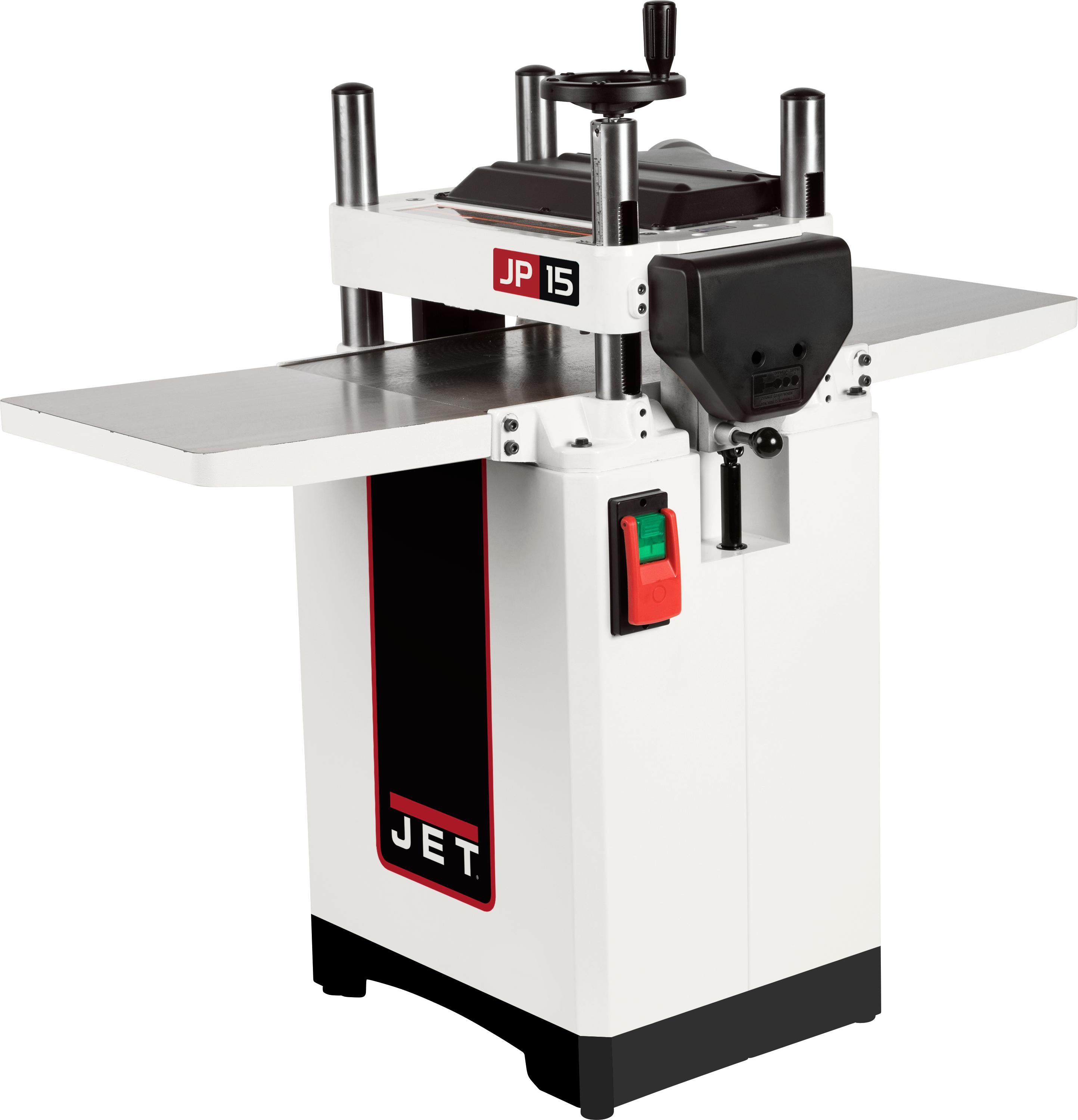

722155, Jet JWP-15BHH Helical Head 15in Planer

The New JET 15" Helical Head planer delivers the power and efficiency that woodworkers demand in the shop. Features include a premium helical cutterhead with 48 staggered carbide knives for a superior finish and quieter cut, Innovative Precision Air Strut System PASS™, rugged 4 post design, cast iron infeed/outfeed tables, 2 infeed speeds and a heavy-duty cast iron base mounted to a closed steel cabinet.

Features:

• Innovative Precision Air Strut System provides consistent upward pressure on the cutterhead, reducing the chance of board snipe

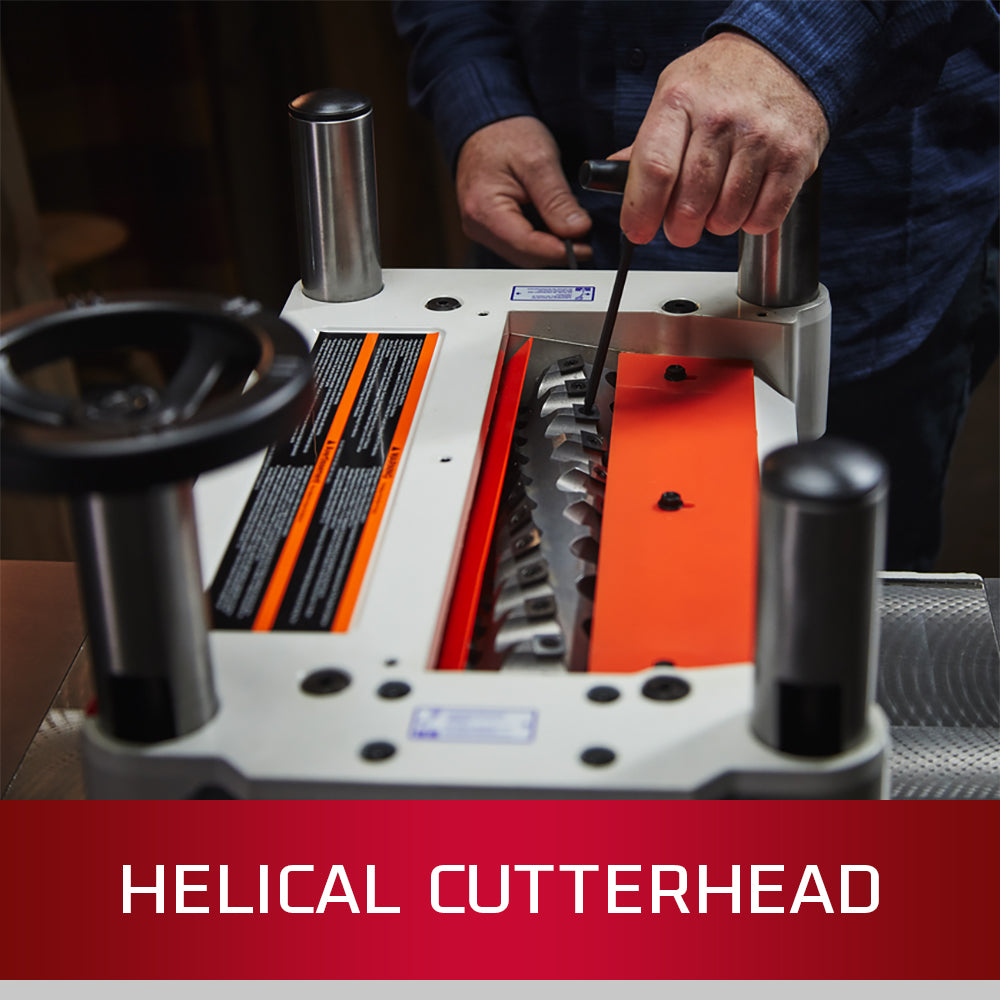

• Helical cutterhead houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut
• Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer. Powerful 3 HP motor with v-belt transmission includes a poly-V belt to reduce vibration and running noise
• Dual infeed speed control for 16fpm or 20fpm, maximizes cut efficiency
• Maximum depth of cut 1/8", 6" cutting height and 15" width capacity

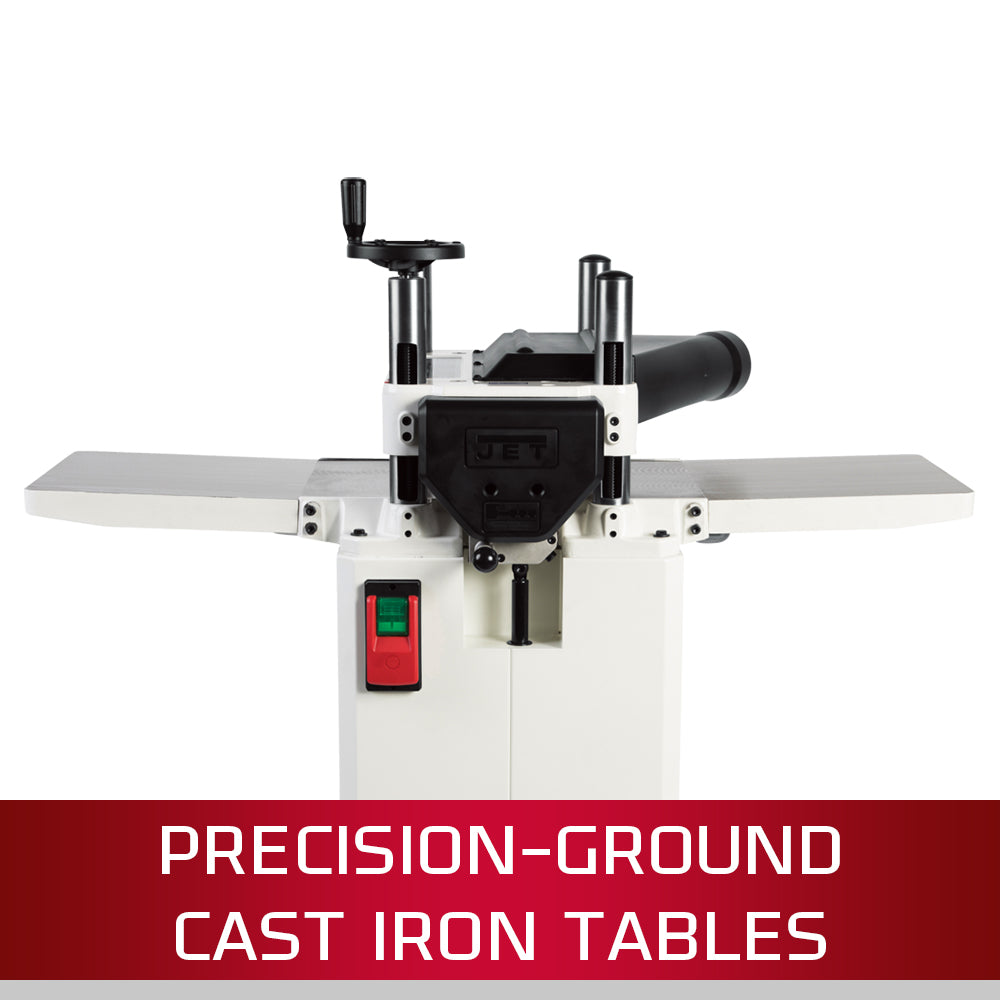

• Large cast iron precision ground infeed/outfeed tables provide support for large work pieces

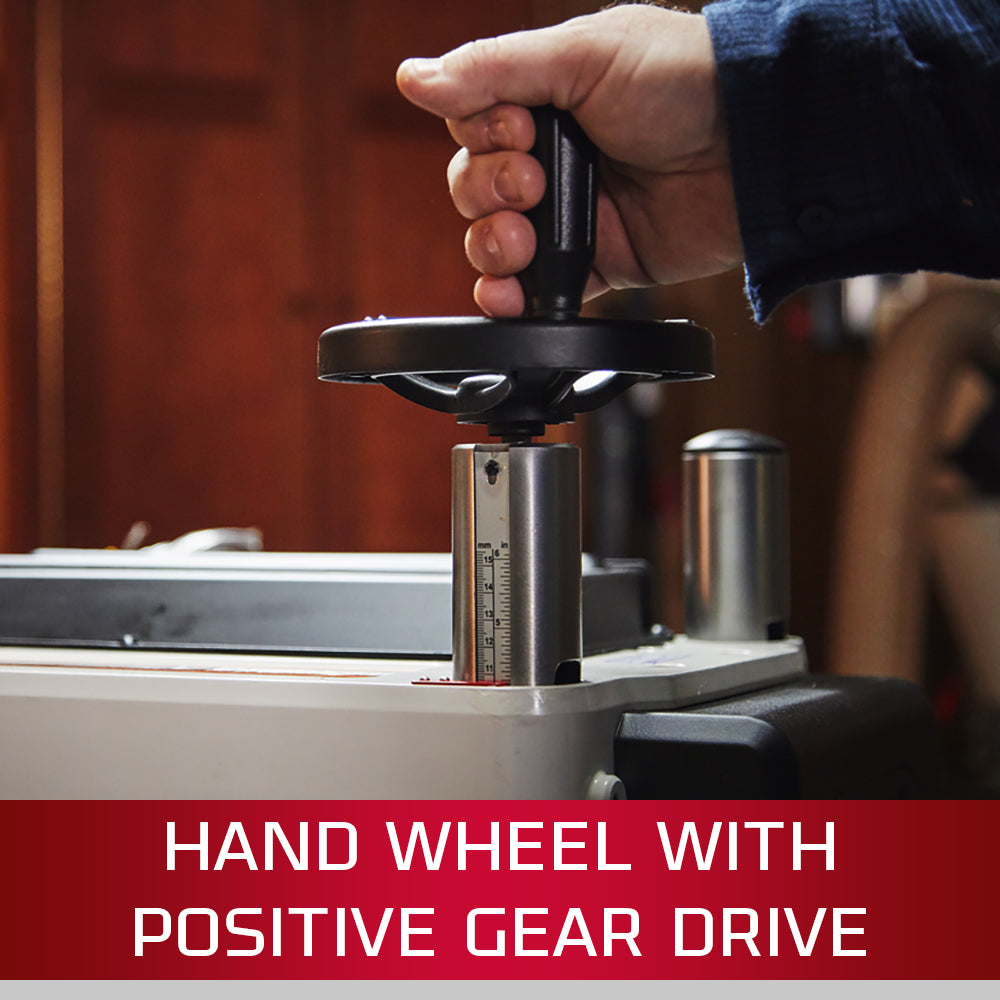

• Large hand wheel with positive gear drive easily moves the head to the desired board thickness

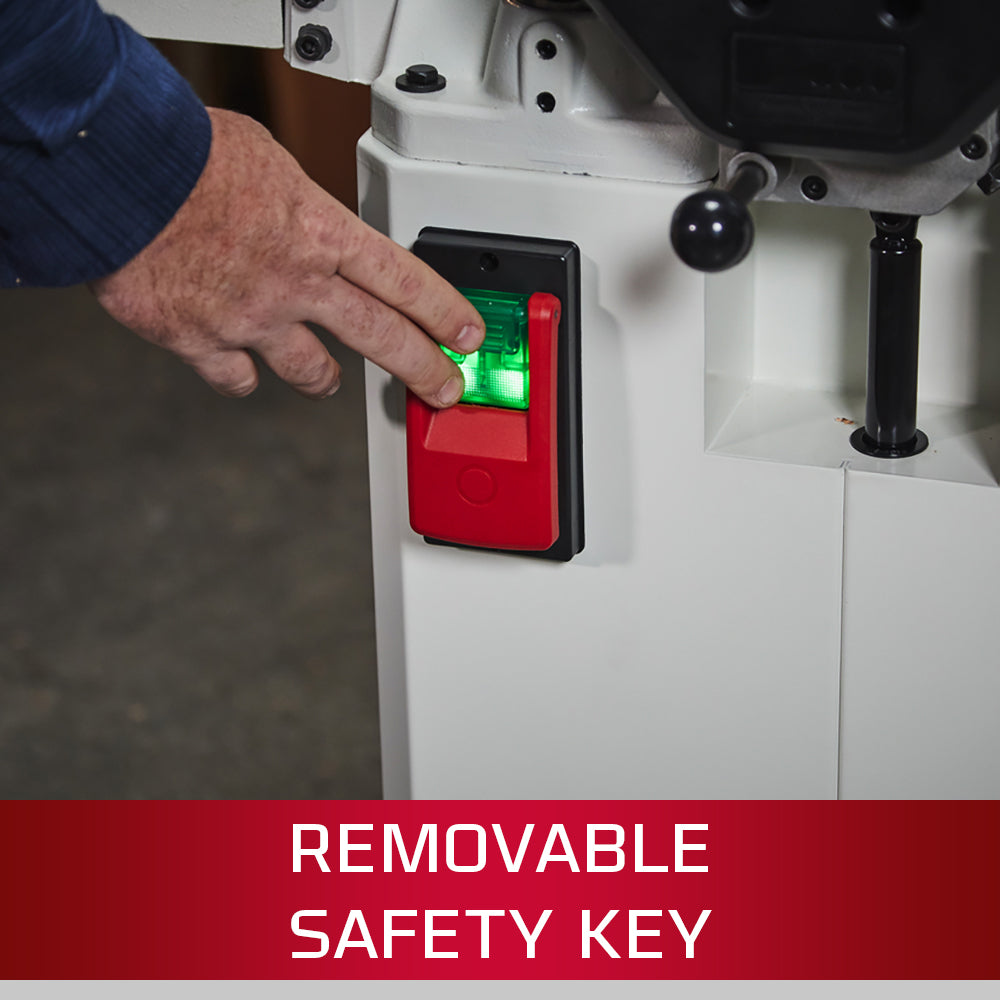

• Magnetic switch with green safety light illuminates when powered

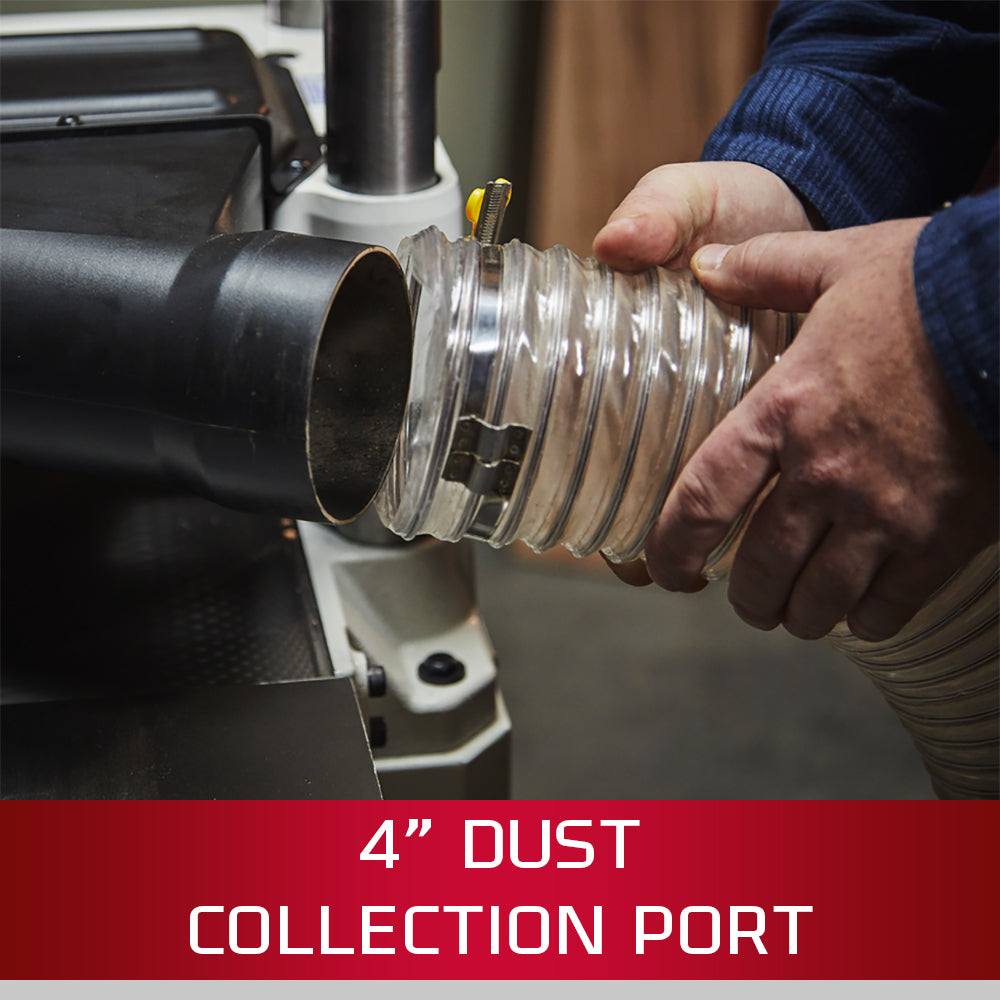

• 4" Dust port hooks up to dust management system and helps keep shop clean

Specifications:

• Model Number    JWP-15BHH
• Cutterhead Support    PASS™ - Precision Air Strut System
• Maximum Cutting Width    15”
• Maximum Cutting Thickness    6”
• Maximum Cutting Depth    1/8”
• Table movement per one revolution of handwheel    1/16”
• Number of cutterhead rows   4
• Knives    48 pieces of four-sided inserts
• Feed Rate (FPM)    16 and 20
• Cutterhead speed    5,200
• Motor    3HP, 1Ph, 230V, 60Hz, 15A Cutterhead Diameter 2 5/8” (68mm)
• Dust chute diameter    4” (102mm)
• Motor Amps    15
• Motor Power (HP)    3
• Motor Phase (PH)    1
• Motor Voltage (V)    230
• Net Weight (lbs.)    286

*Not compatable with the 708520 JET JWP-DRO
