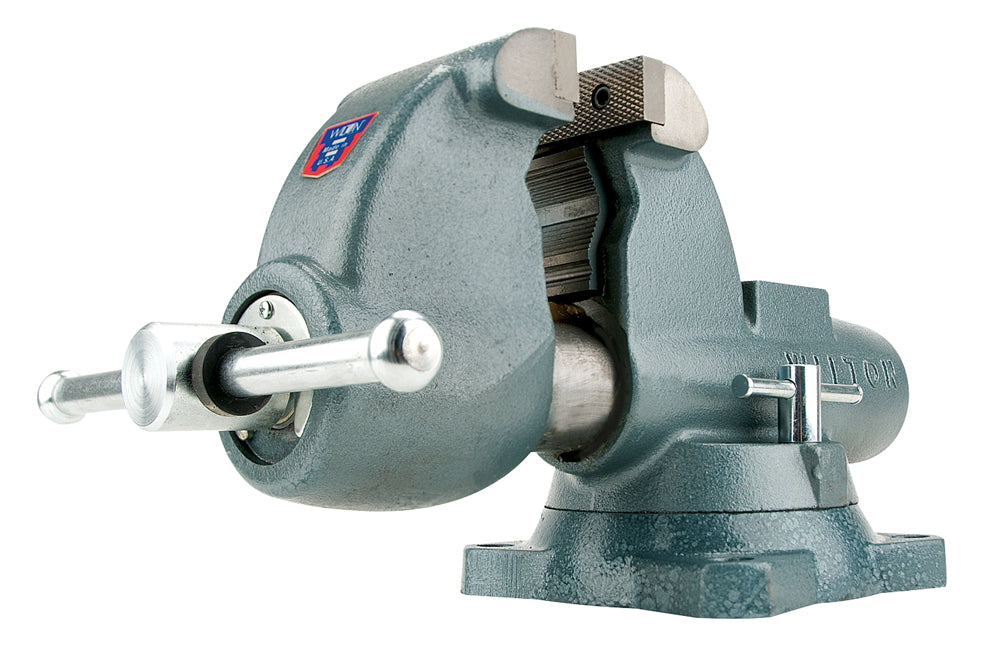

Jet C1, Combination Pipe and Bench 4-1/2 in. Jaw Round Channel Vise with Swivel Base 28826
Jet C1, Combination Pipe and Bench 4-1/2 in. Jaw Round Channel Vise with Swivel Base 28826
Couldn't load pickup availability
Details
Details
28826, Wilton C1 Combo Pipe and Bench Vise 4-1/2" Jaw Width
The All-Weather round channel vise is designed to handle the most demanding clamping applications indoors and outdoors. Unlike most vises that have a fixed center nut, the All-Weather round channel vise nut is anchored in the rear. This rear anchored nut provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly. This enclosure keeps debris out and lubrication in for a lifetime of smooth operation. The All-Weather vise is equipped with nickel plated jaws, pipe jaws, spindle and locknuts. The self-centering pipe jaws are grooved to prevent rotation of round stock and have a two step design to assure a firm hold on both large and small diameter material. The All-Weather vise is also equipped with a swivel base with dual locking nuts. The open locking design of the All-Weather base allows for a full 360 degrees of rotation. To prevent rotation during use both the locking nuts and base have serrated edges that interact positively to assure a non-slip grip when tightened. The main base has four pre-cast holes for mounting the vise to a work surface. Each vise includes a mounting template for quick no guess hole placement for mounting.
Features:
- Self-centering nickel plated pipe jaws-hold up to 3-1/2" pipe safely and securely
- Nickel plated jaw inserts-machine serrated, replaceable jaws assure a positive hold
- Enclosed construction keeps lubrication in and contaminants out. Perfect for outdoor use
- Locking swivel base with double lockdowns for non-slip hold in any position
- Alloy steel slide bar for added strength and keyed for a precision fit
- Large anvil work surface
- Designed to handle the most demanding clamping applications indoors and outdoors
- Anchored at the rear to provide straight line pull and even pressure resulting in greater durability
- Round channel design allows for a completely enclosed spindle and nut assembly, which keeps debris out and lubrication in for a lifetime of smooth operation
- Equipped with nickel plated jaws, pipe jaws, spindle and locknuts
- Self-centering pipe jaws are grooved to prevent rotation of round stock and have a 2-step design to assure a firm hold on both large and small diameter material
- Main and pipe jaws made from high strength steel and are fully replaceable
- Swivel base has dual locking nuts
- Open locking design of base allows for a full 360 degrees of rotation
- Main base has 4 pre-cast holes for mounting the vise to a work surface.
- Each vise includes a mounting template for quick no guess hole placement for mounting
Specifications:
- Height: 10.5 Inches
- Width: 8.9 Inch
- Length: 20 Inches
- Jaw Depth: 5/8 Inch
- Jaw Height: 1-1/4 Inch
- Jaw Width: 4-1/2 Inch
- Opening Capacity Maximum: 6 Inches
- Pipe Jaw Capacity: 1/8 to 3-1/2 Inches
- Throat Depth: 4-3/4 Inches
- Type of Base: 360 Degrees Swivel
- Type of Nut: Straight Line Pull
- Center Distance: 2-3/8 Inch
- Type of Nut: Straight Line Pull
- Center Distance: 2-3/8 Inches
- Bolt Circle Diameter: 8-3/4 Inch
Specifications
Specifications
| Jet C1, Combination Pipe and Bench 4-1/2 in. Jaw Round Channel Vise with Swivel Base 28826 | |
| APPLICATION | Concrete / Wood Working / Metal Working |
| BRAND COMPATIBILITY | Wilton |
| Brand | Jet |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Work Holding - Vises |
| TOOL TYPE | Work Holding |
| WIDTH | 4.5 in |
