Powermatic PM2800B Drill Press, 1HP, 1PH, 115/230V 1792800B
Powermatic PM2800B Drill Press, 1HP, 1PH, 115/230V 1792800B
Couldn't load pickup availability
Details
Details

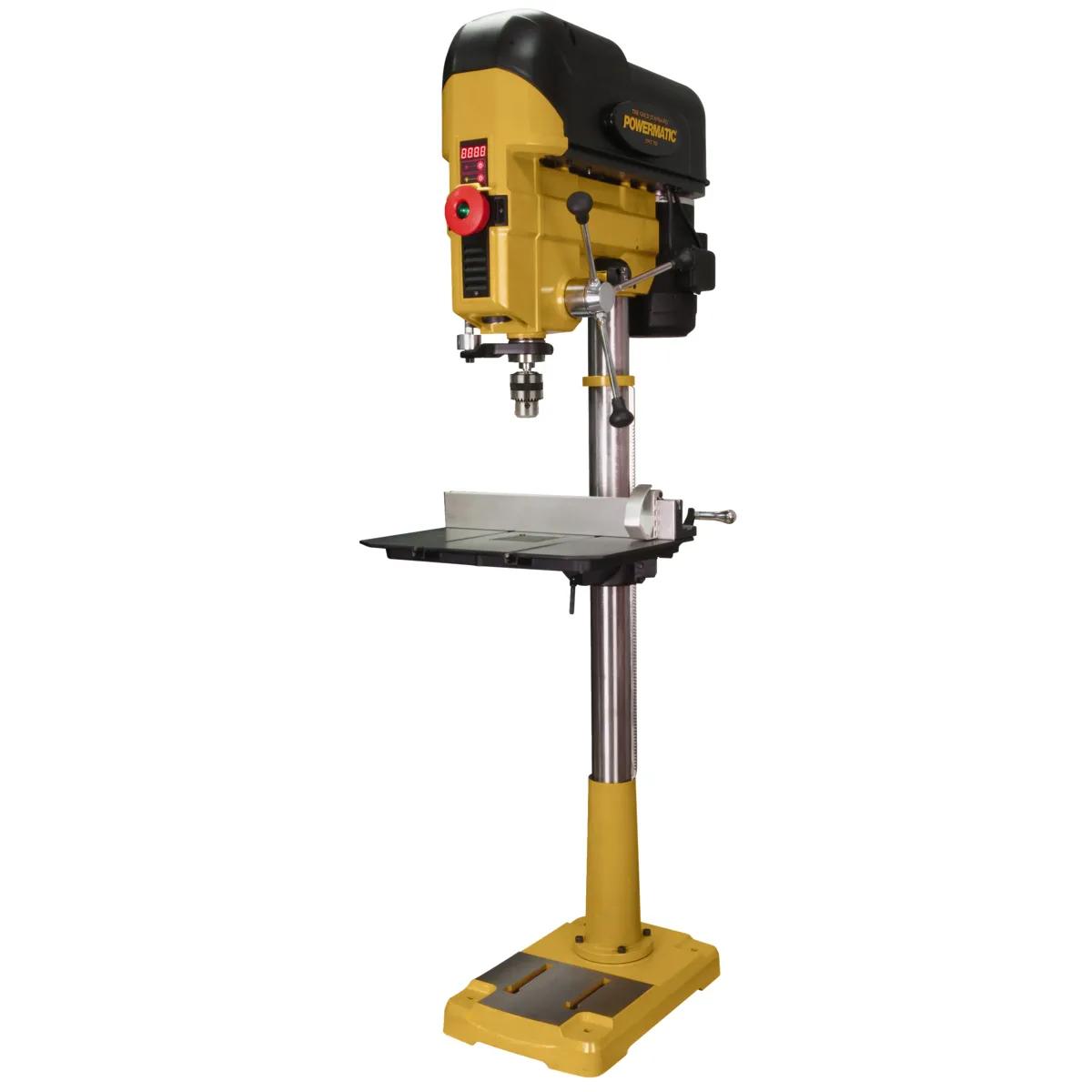

The Powermatic PM2800B 18-inch variable-speed drill press blends precision features with intuitive operation for demanding shop work. Powered by a 1 HP motor with 115/230V single-phase capability, it offers versatile installation and smooth speed control for different bit sizes and materials. A digital RPM readout helps maintain consistent cutting conditions, and the included fence and laser guide support accurate hole placement and repeatable setups. With a design focused on ergonomics and ease of adjustment, the PM2800B is built to elevate drilling accuracy in professional woodworking and fabrication environments.

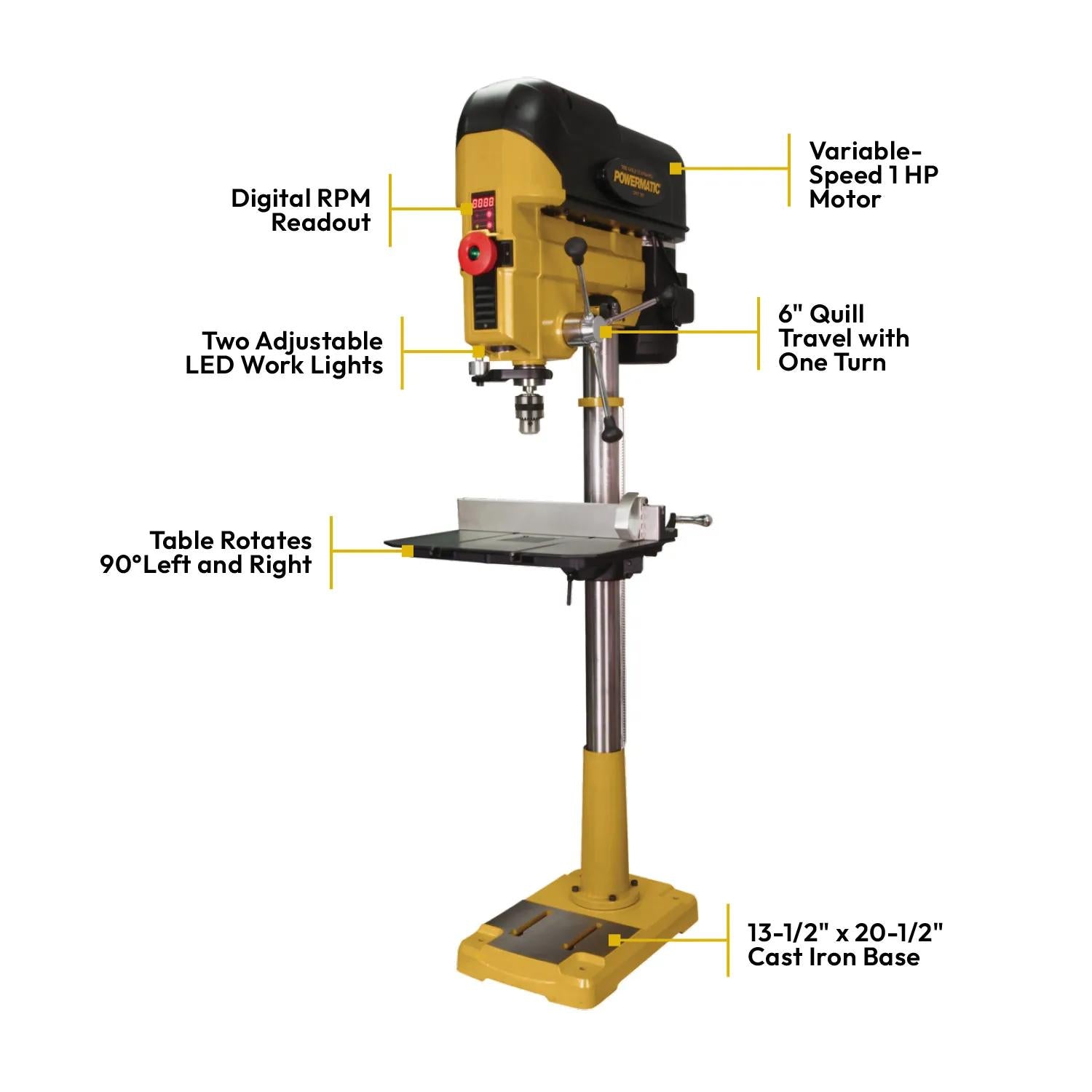

Features & Benefits

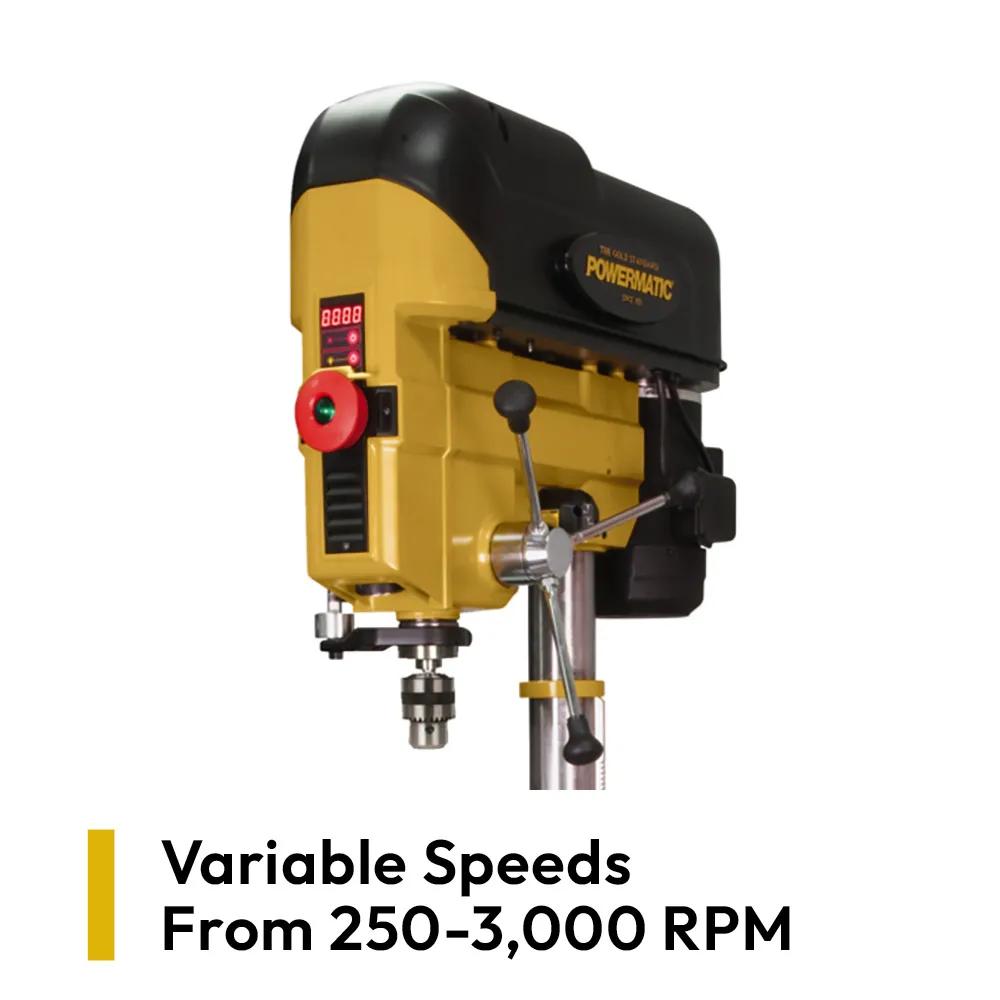

- Infinitely variable speed range from 250 to 3,000 RPM allows precise speed matching without belt changes
- Digital RPM readout delivers real-time speed feedback for consistent drilling results across materials
- Laser guide system improves bit alignment for accurate hole placement and repeatable setups
- 6 inches of quill travel achieved in one handle revolution supports deep drilling with less repositioning

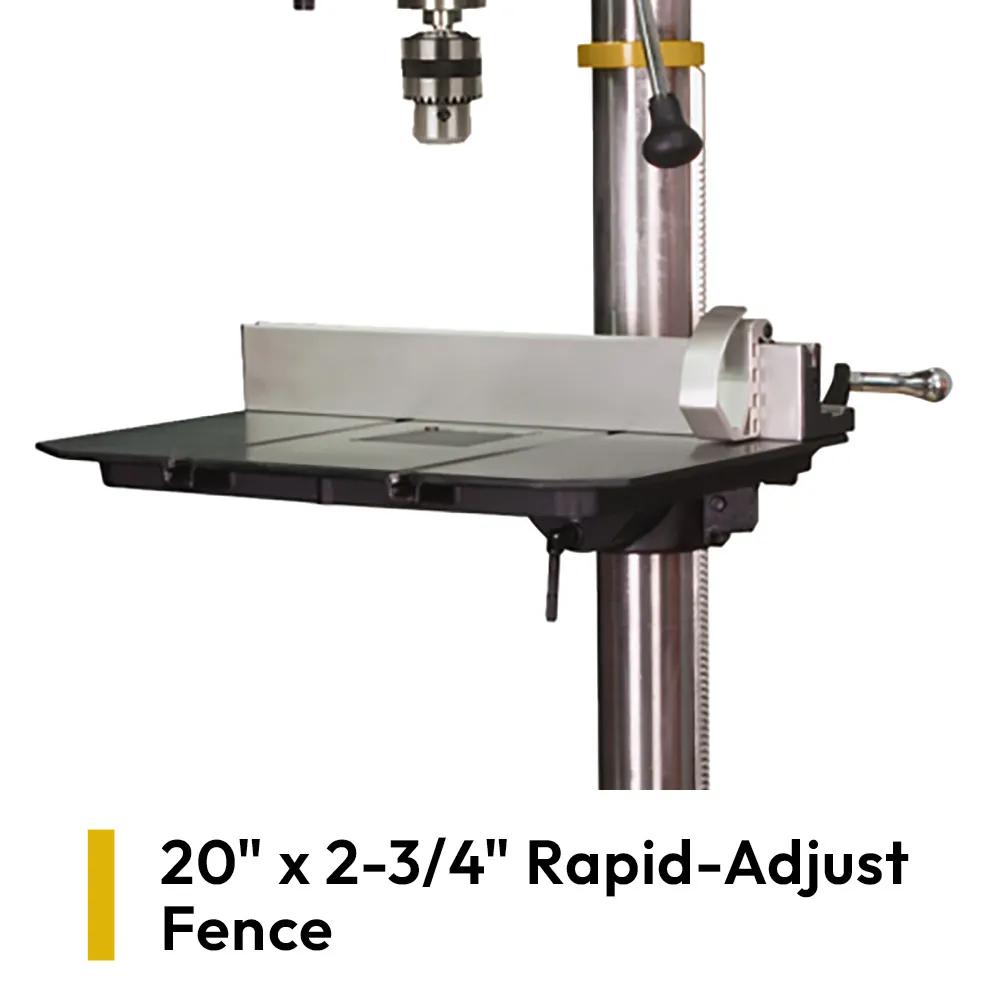

- Adjustable fence system maintains a true 90-degree relationship to the table for precise drilling accuracy

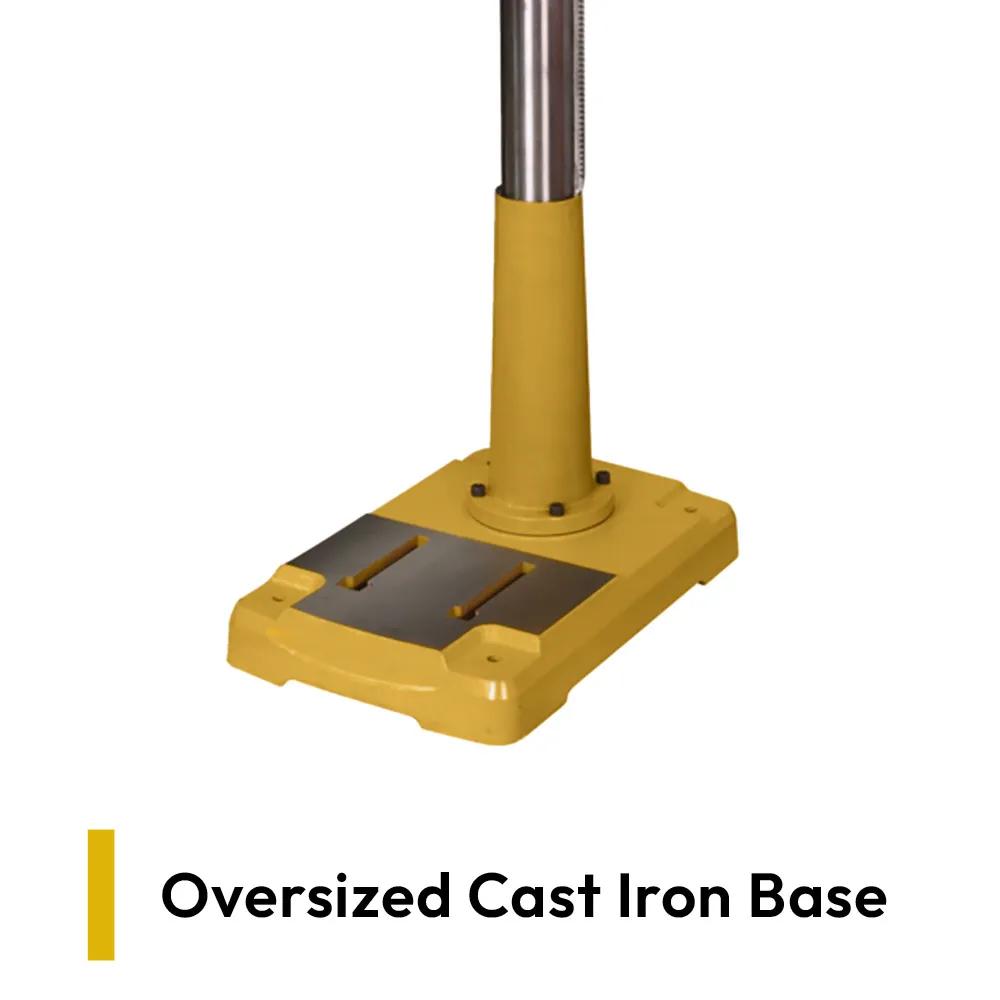

- Oversized cast iron base adds mass for improved stability and reduced vibration during operation
- Cast iron work table tilts up to 90 degrees for angled drilling applications and setup flexibility
- Reversible operating handles can be mounted on either side to suit user preference and shop layout
- 5/8-inch keyed chuck securely holds larger bits for a wide range of drilling tasks
Specifications
Specifications
| assembled dimensions | 18 in. x 20.25 in. x 71 in. |
| base size | 20 in. x 13.5 in. |
| chuck distance to base in | 40-1/2 in. |
| chuck distance to table in | 22-3/8 in. |
| chuck size in | 5/8 in. |
| digital readout | Yes |
| distance from spindle to base | 44-3/4 in. |
| drill capacity | 5/8 in. |
| fence size l x h in | 20 in. x 2-3/4 in. |
| horse power hp | 1 |
| max distance spindle to table in | 26-5/8 in. |
| input power | 115/230V Single Phase |
| motor amps | 15 |
| motor hp | 1 |
| motor phase | Single |
| motor voltage v | 115/230 |
| number of spindle speeds | Variable |
| prewired voltage v | 115 |
| range of spindle speeds rpm | 250-3000 RPM |
| recommended circuit size amps | 20A for 115; 15A for 230V |
| spindle distance to base in | 44-3/4 in. |
| spindle distance to table max in | 18-1/2 in. |
| spindle speed rpm | 250 to 3000 |
| spindle taper | MT-2 |
| spindle travel in | 6 in. |
| style type | Floor Standing |
| swing in | 18 in. |
| table size l x w in | 20.5 in. x 14 in. |
| table tilt deg | Right 90 / Left 90 |
| Gross Weight | 266 |
| Net Weight | 246 |
