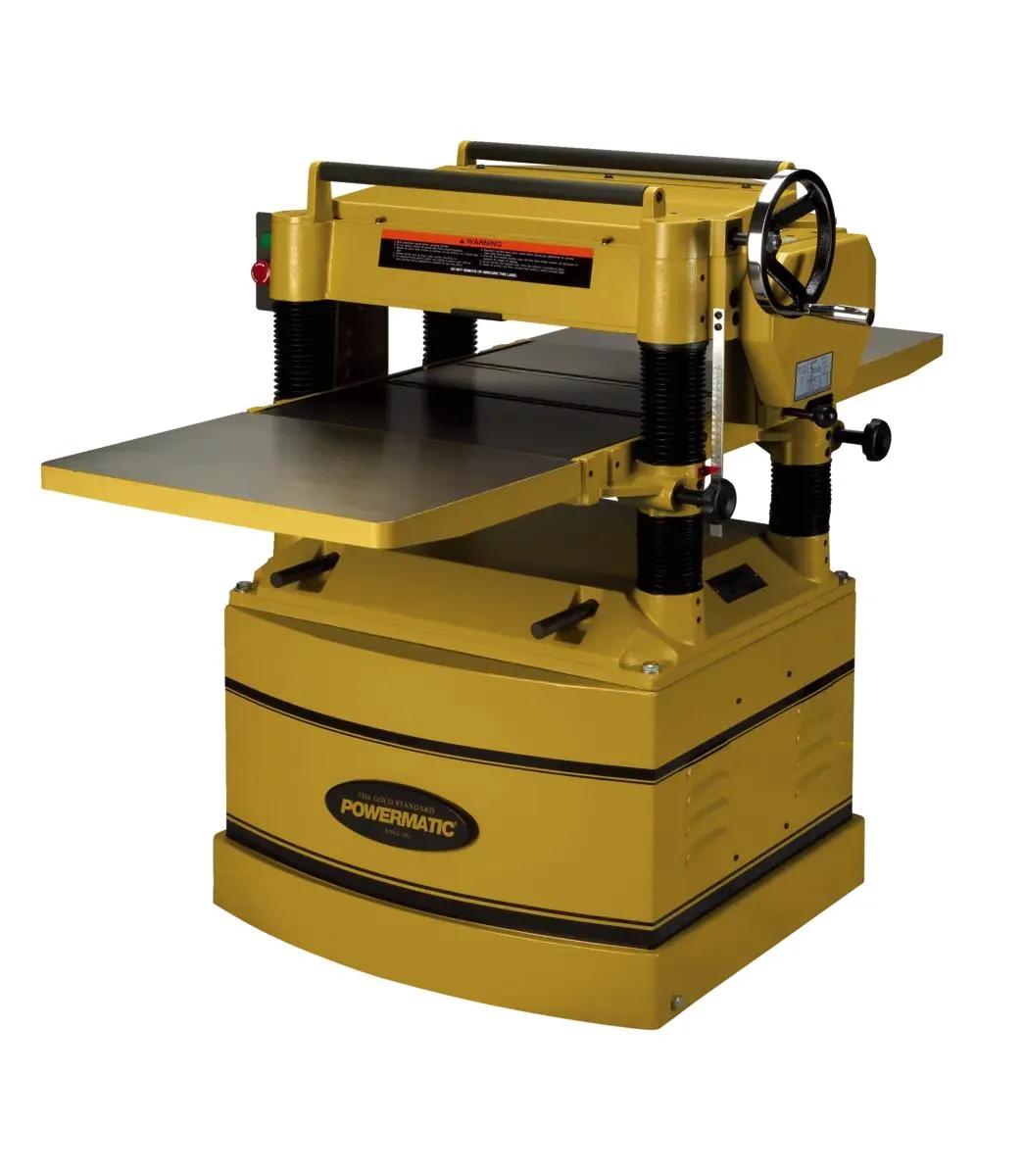

The Powermatic 209HH 20-inch planer with 230V single-phase power is designed for professional woodworking shops that need industrial performance without three-phase electrical service. Driven by a powerful 5 HP motor, this planer delivers the strength required to surface wide boards and dense hardwoods while maintaining consistent results across demanding workloads. Its 20-inch capacity allows larger stock to be processed efficiently, helping improve productivity and workflow. The helical cutterhead is equipped with 100 four-sided carbide inserts that shear material smoothly, producing a refined finish with less noise and reduced tear-out compared to traditional straight-knife designs. Inserts are easy to rotate or replace, minimizing maintenance time and extending cutter life. A 5-inch dust port integrates easily with dust collection systems to keep chips under control. For added safety and surface quality, anti-kickback fingers and a closely positioned pressure bar maintain steady stock control. The planer’s heavy cast iron base, table, and head provide excellent rigidity and vibration reduction, while the precision-ground table is supported by four steel columns for stability when handling larger workpieces. An oil-bath gearbox offers multiple feed speeds for both efficient stock removal and finer finishing, and corrugated infeed with fine-groove outfeed rollers ensure smooth, reliable material feeding throughout the cut.

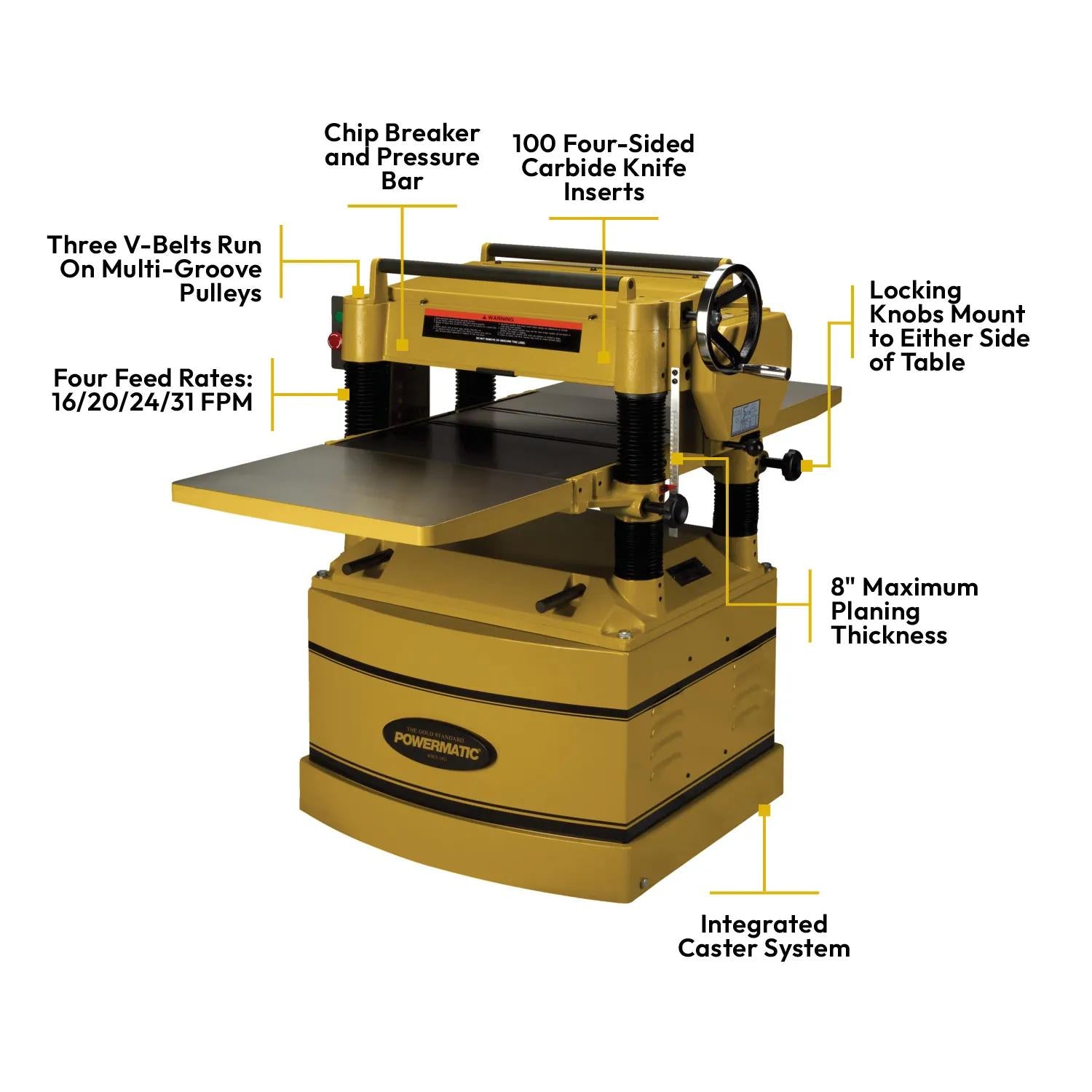

Features & Benefits

• 5 HP single-phase motor operating on 230V delivers industrial planing power for shops without three-phase electrical service
• 20-inch planing capacity allows wide boards to be surfaced efficiently, reducing the need for multiple passes on large stock

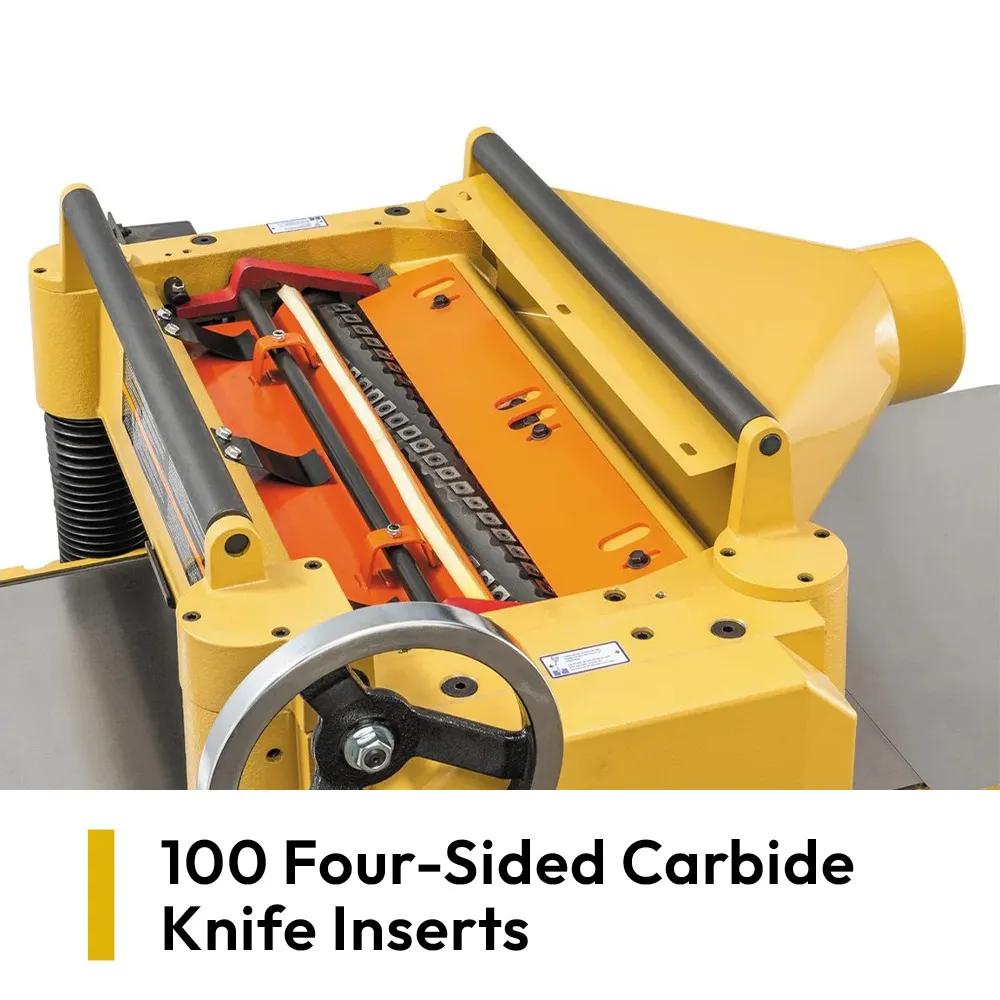

• Helical cutterhead with 100 four-sided carbide inserts produces a consistent surface finish while lowering cutting noise and tear-out

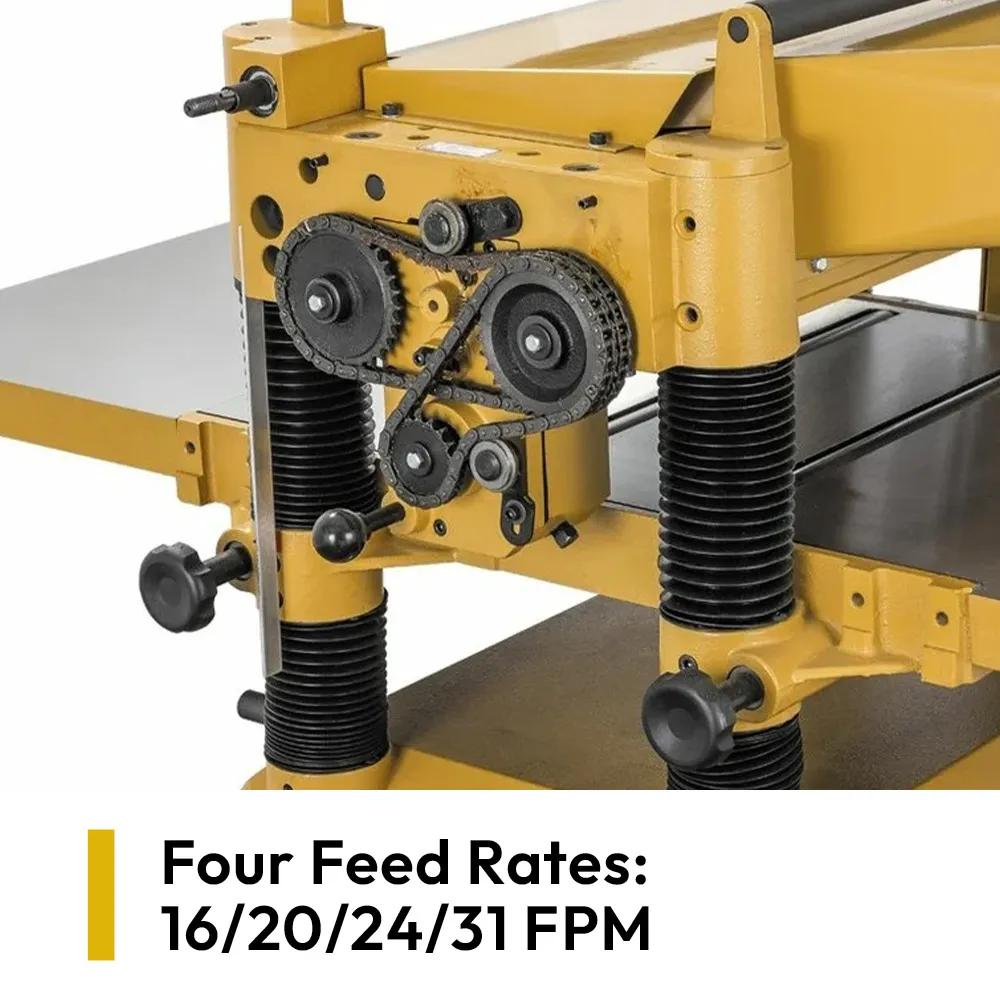

• Oil-bath gearbox supports feed speeds of 24 and 31 FPM, with included gearing to run slower rates of 16 and 20 FPM for finish passes
• Rigid cast iron base, table, and head increase machine stability and help minimize vibration during heavy material removal
• Precision-ground cast iron table with extension wings provides a wide, flat surface for accurate support of long or heavy workpieces

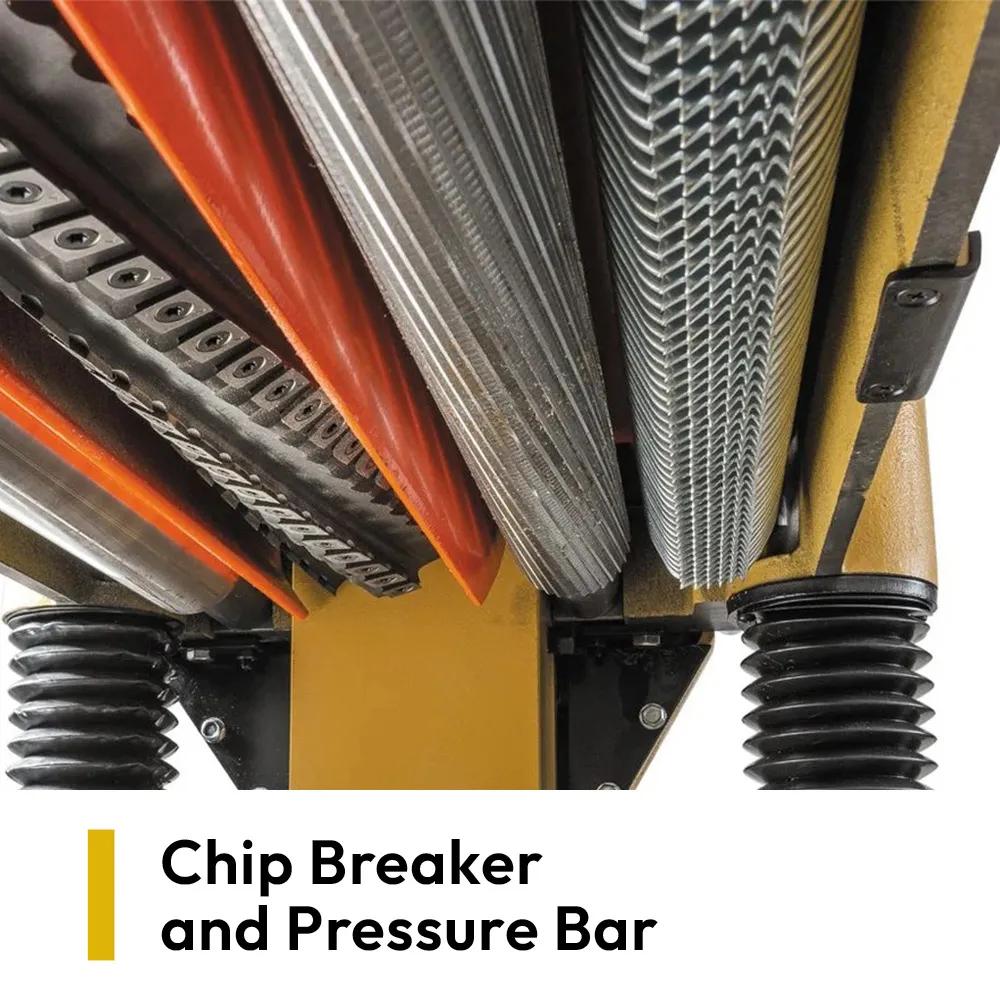

• Anti-kickback fingers and closely positioned pressure bar help maintain steady stock control and consistent planing results
• Corrugated steel infeed roller and fine-groove outfeed roller promote smooth feeding across a range of material thicknesses
• 5-inch dust port connects directly to dust collection systems to improve chip evacuation during planing operations
