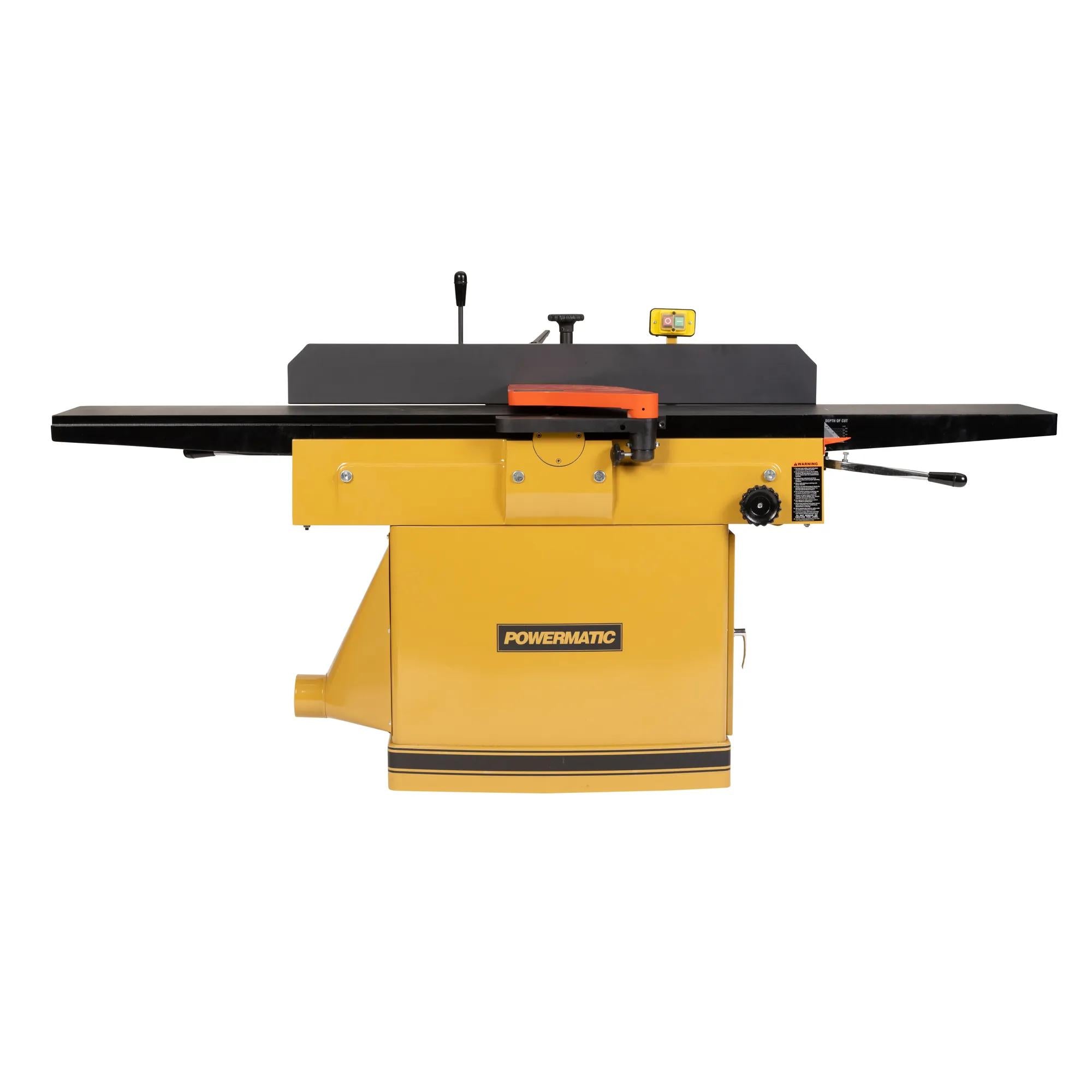

Powermatic 1285T 12 in. Parallelogram Jointer with ArmorGlide, 3HP 1PH 230V 1791241T
Powermatic 1285T 12 in. Parallelogram Jointer with ArmorGlide, 3HP 1PH 230V 1791241T
Couldn't load pickup availability
Details
Details
The Powermatic 1285T ArmorGlide 12-inch parallelogram jointer with a straight-knife cutterhead and 230V single-phase power provides traditional cutting performance with modern table protection. ArmorGlide Technology creates a low-friction, rust-resistant surface that improves stock movement and extends table life. Driven by a 3 HP motor, the straight-knife cutterhead delivers reliable jointing performance for a wide range of materials. The parallelogram table design allows quick depth-of-cut changes while maintaining consistent alignment for accurate results. A center-mounted fence with rack-and-pinion adjustment offers smooth positioning and includes preset stops for 45-degree angles and a positive 90-degree stop. Heavy cast iron construction throughout the machine enhances stability and vibration control, making this jointer a dependable choice for professional shops that prefer straight-knife systems.

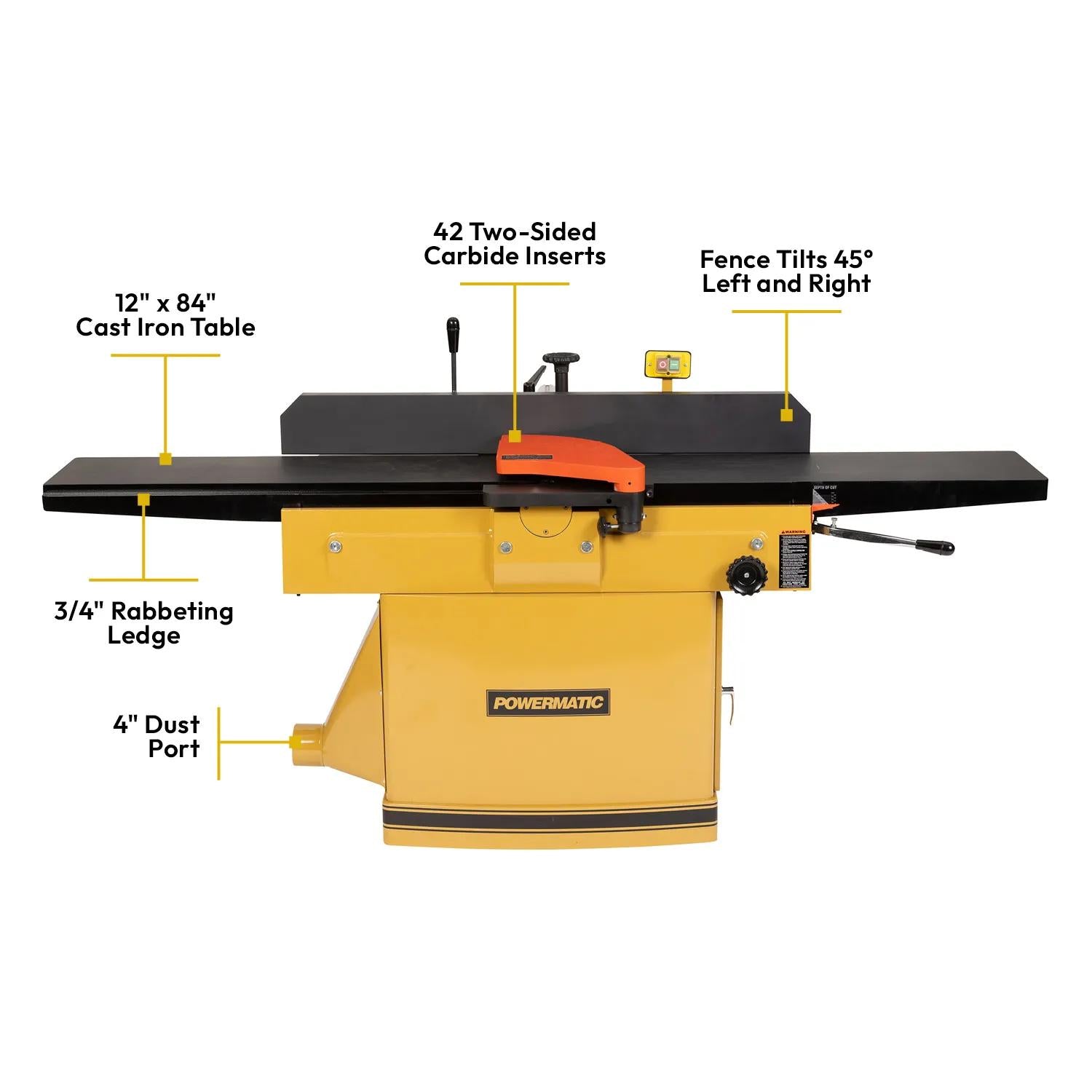

Features & Benefits

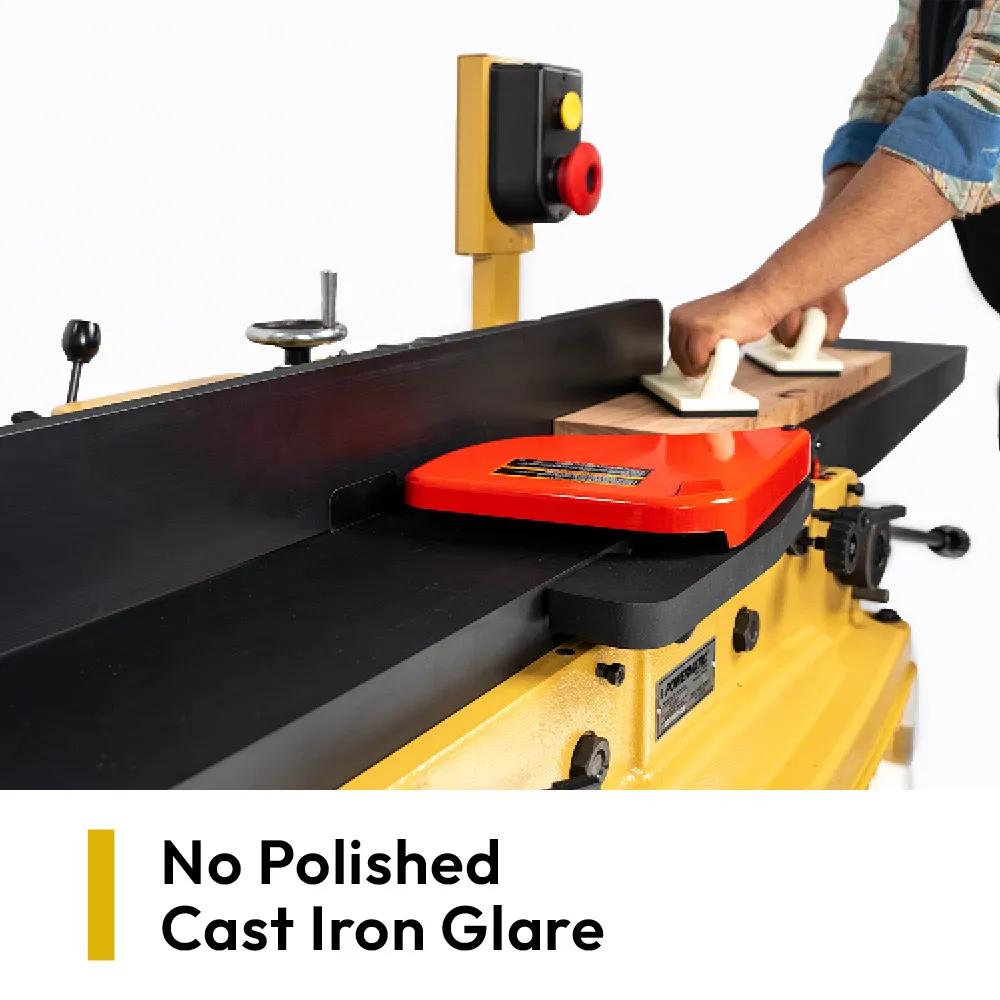

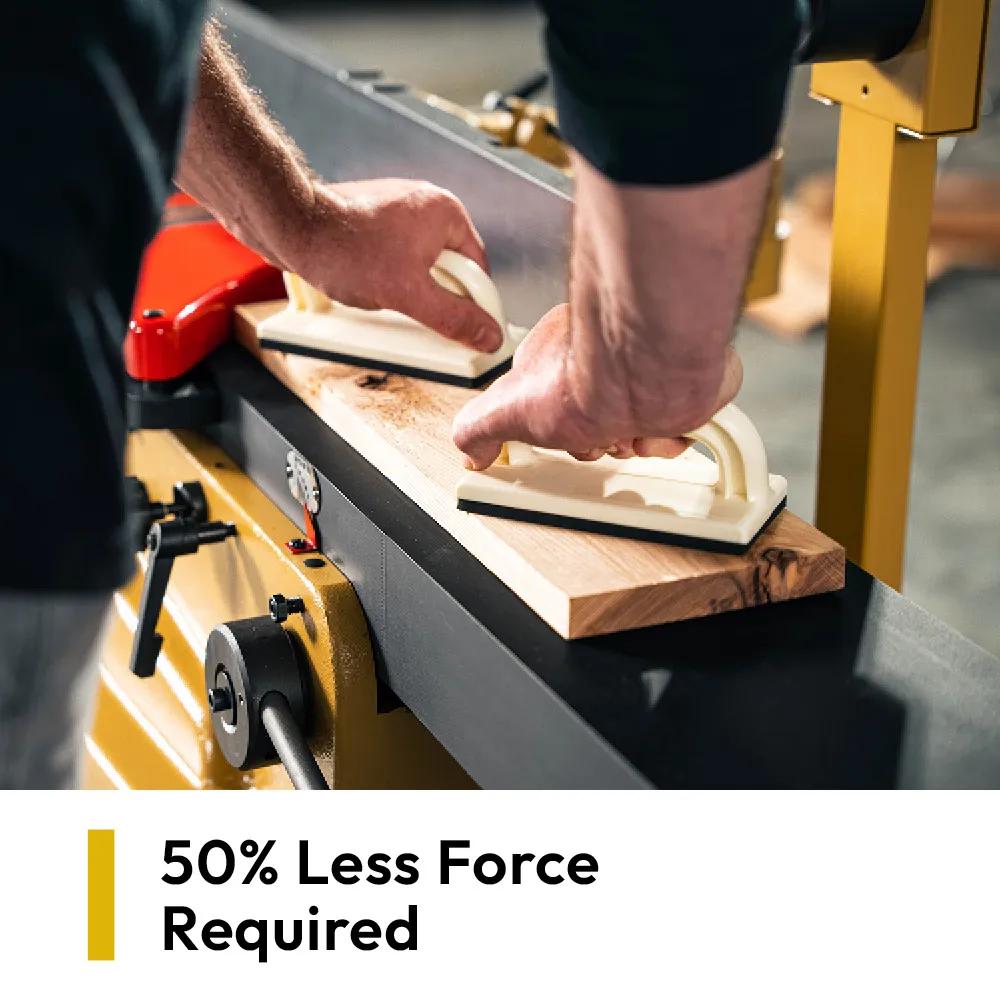

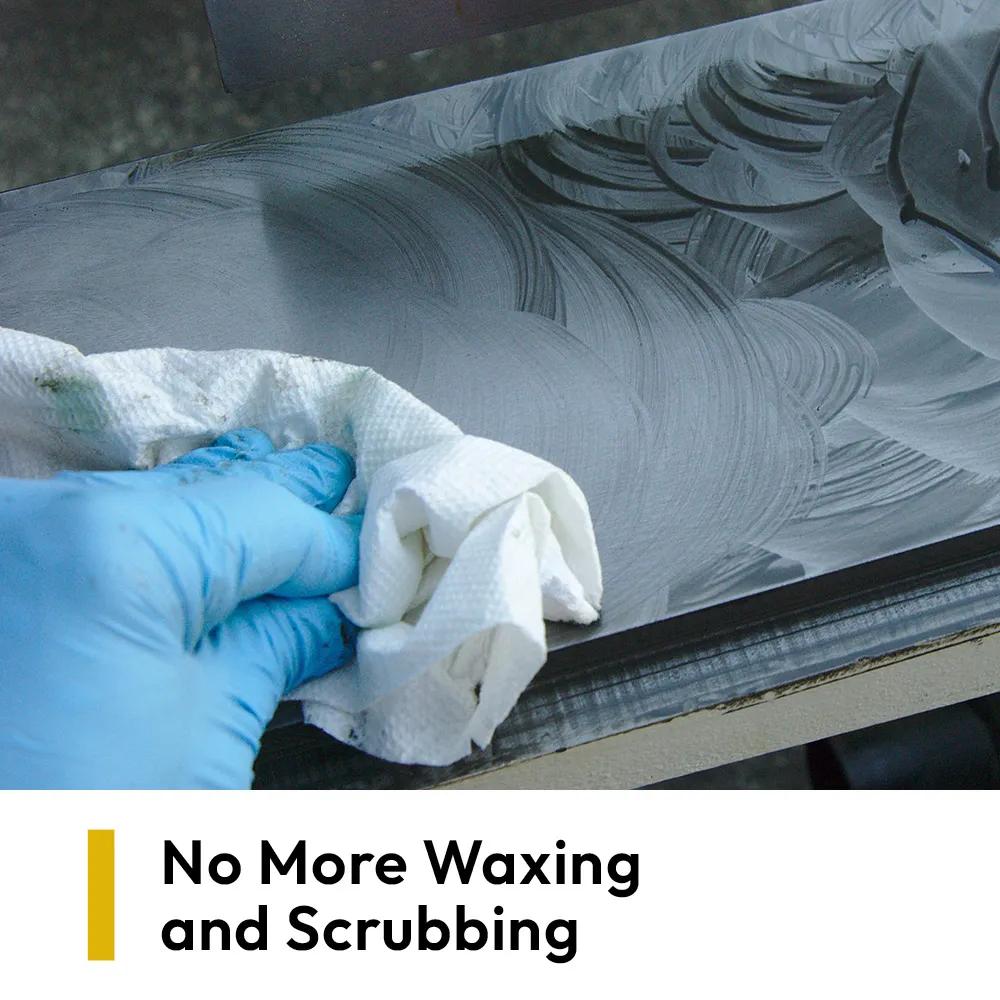

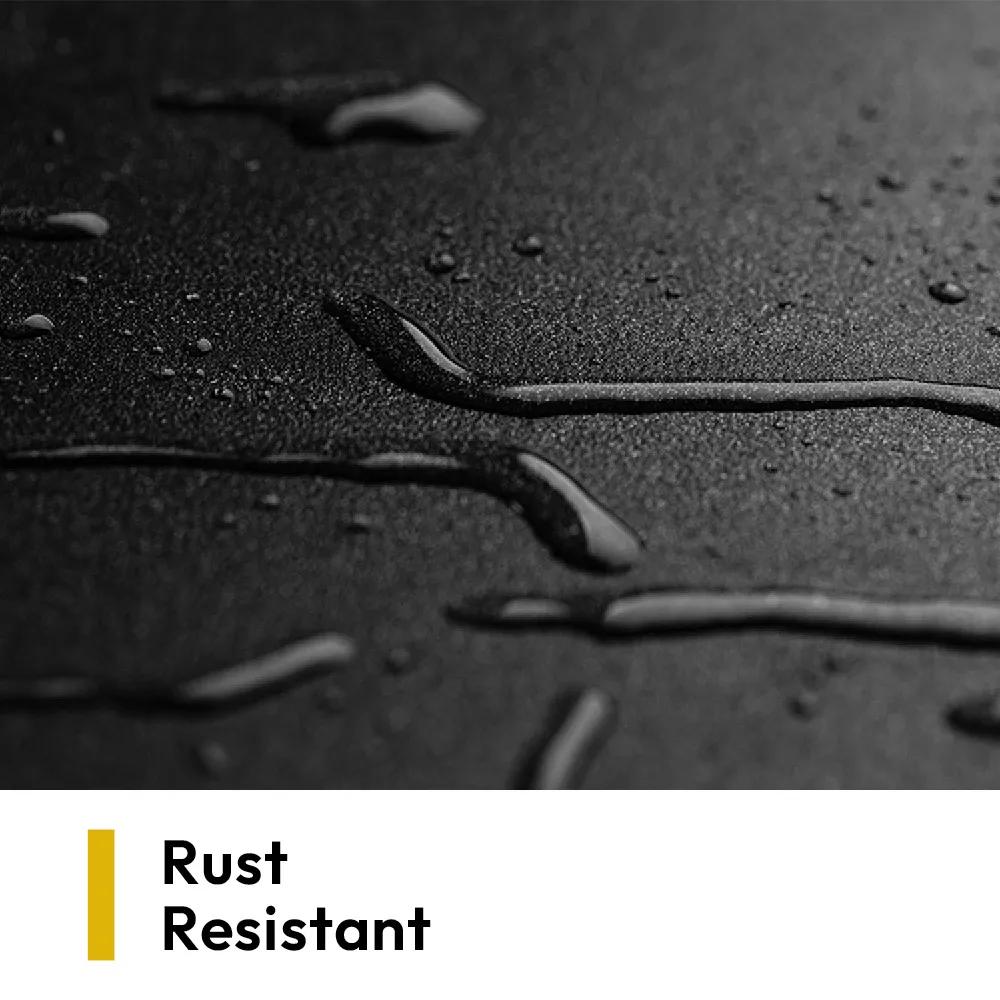

- ArmorGlide-coated cast iron tables reduce friction and resist rust, allowing smoother stock travel and less surface maintenance over time
- Three-knife straight cutterhead uses high-speed steel knives to deliver traditional jointing results with consistent edge engagement
- 3 HP single-phase motor provides steady power for jointing wide boards and dense stock without requiring three-phase service
- Parallelogram table design keeps tables closely aligned to the cutterhead while allowing fast, accurate depth-of-cut adjustments
- Large 12-inch by 84-inch precision-ground cast iron table supports long material for improved accuracy and stability
- Center-mounted cast iron fence adjusts via rack-and-pinion control for smooth movement and repeatable positioning
- Fence preset stops enable quick setup at common angles, including 45 degrees and a positive stop at 90 degrees
- Heavy cast iron construction reduces vibration during operation for smoother cuts and consistent jointing results
- Cast iron table lips near the cutterhead help dampen operational noise during cutting passes
- Designed for controlled cutting depths up to 1/8 inch for jointing and up to 1/2 inch for rabbeting
Specifications
Specifications
| coating | ArmorGlide Technology |
| cuts per minute | 15000 |
| cutterhead speed rpm | 5000 |
| cutting capacity width in | 11.75 in. |
| dust port outside diameter in | 4 in. |
| fence size l x h in | 47-1/4 x 5-1/4 in. |
| fence tilt deg | -45 to +45 |
| horse power hp | 3 |
| infeed table length | 42 |
| maximum depth of cut in | 1/8 in. |
| input power | 230V Single Phase |
| motor hp | 3 |
| motor phase | Single |
| motor voltage v | 230 |
| number of knives | 3 |
| prewired voltage v | 230 |
| rabbeting capacity in | 3/4 in. |
| recommended circuit size amps | 30 |
| dust collection minimum cfm required cfm | 800 |
| table height from floor in | 31-5/8 |
| table size l x w in | 84 in.x 12 in. |
| type of cutterhead | Straight Knife |
| Gross Weight | 880 |
| Net Weight | 762 |
