Safety Speed Cut Vertical Panel Saw w/ 64" Cutting Height 6400
Safety Speed Cut Vertical Panel Saw w/ 64" Cutting Height 6400
Couldn't load pickup availability
Details
Details
Safety Speed Manufacturing 6400 Vertical Panel Saw w/ 64" Cutting Height
The 6400 provides a 64" maximum crosscut while the 6800 provides a 74" maximum crosscut. The maximum ripcut (horizontal) is dependent on pushing the panel through.
Features:
- 3 Hp worm driven heavy-duty saw motor.
- 10 ft. welded steel frame.
- Chrome-plated 1 3/4" guide tubes.
- 8 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Solid aluminum material rollers.
- Enclosed counterweight system.
- Integrated dust collection bonnet.
- TUV certified to UL/CSA standards.
Upgrades on the 6400 & 6800 model panel saws compared to our H-Series Panel Saws include:
- An upgraded, worm drive motor providing greater longevity.
- 1/64" straight and square cutting tolerance compared to 1/32" on our H-Series Machines that's made possible by additional bearings.
- Additional steel welded at a diagonal plane adding significant weight to the frame.
- A weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter balance.
- Additional bearings within the motor providing a tighter cutting tolerance.
- Aluminum material rollers instead of red material rollers .

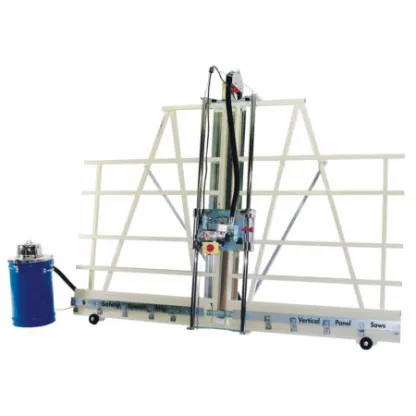

Photos are shown shown with a stand, wheels, and a dust kit, which are optional accessories
Specifications:
- Weight — 598 lbs
- Dimensions — 124 x 17 x 92in
- Max. Crosscut — 64"/1625mm
- Max. Rip Cut — Unlimited
- Cut Depth — 1-3/4"/45mm
- Cut Accuracy — 1/64"/.4mm
- Frame Length — 120"/3050mm
- Saw Blade Diameter — 8"/210mm
- Saw Blade Bore Size — 5/8"
- Daily Usage — 3-5 Hours
- Rollers — 14
- Motor volt and amperage — 13 amp, 120V
- Country of Origin — USA
Specifications
Specifications
| Safety Speed Cut Vertical Panel Saw w/ 64" Cutting Height 6400 | |
| APPLICATION | Wood Working |
| Brand | Safety Speed Cut |
| HORSEPOWER | 3.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Panel Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 110V-120V |
