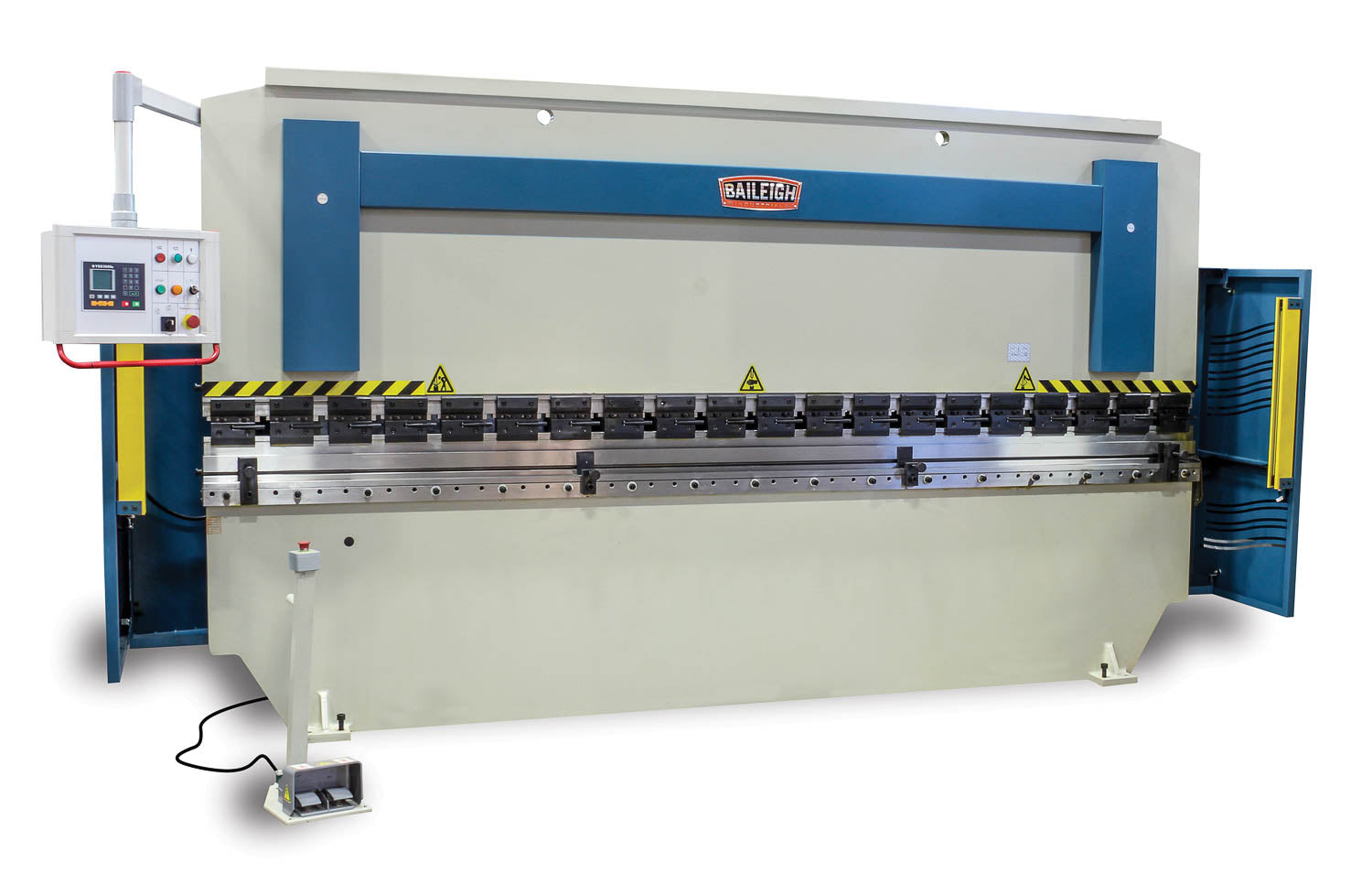

We build this 10-foot industrial press brake using reliable components from Germany and Japan and a rigid all-steel frame. The programmable controller is simple to learn.

Features:

• Delivers 140 tons of pressure.

• This press brake is also available in a 13-foot version.

• Runs on 220-volt 3-phase power.

• Industrial-grade hydraulic system with a Vickers/Eaton® pump will last for many years at peak capacity.

• NOK® hydraulic seals from Japan are some of the best in the industry. They’ll keep the hydraulics running smoothly.

• Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times.

• Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer.

• Hydraulic cylinders are near the back of the machine for convenient fluid changes.



ACCURATE, USER-FRIENDLY CONTROL SYSTEM

• Runs in single-bend mode or programmable mode.

• Comes standard with 2 axes of control: stroke and back gauge distance.

• Simple controller is so intuitive that you could train someone to use it in 5 minutes.

• Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.

• Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.

• Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity.

• Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.

• You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.

• Choose between 2 speeds: a rapid approach and retract and a slow bending speed.

• Speed option lets you reduce cycle time and make your shop more efficient.

• Chain drive back gauge system uses tried-and-true technology that you can maintain easily.

• The 23.62" back gauge can advance or retract according to programmed instructions.

STEEL PLATE CONSTRUCTION AND INCLUDED TOOLING

• Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process.
• Weighs a robust 16,000 lbs. for massive structural strength that ensures accurate results.
• Includes support arms around 2 feet in length.
• Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style).
• Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!
• Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
• Safety light curtains prevent the machine from bending when someone is too close.
• Light curtains will swing open and get out of the way when you’re doing a tool change.

Specifications:

• Item Number: BP-14010CNC
• Table Length: 125/157"
• Back Gauge Length: 17144
• Return Speed: 2.36" / sec.
• Maximum Pressure: 140 tons
• Throat Depth: 12.5"
• Stroke Distance: 4.7"
• Approach Speed: 2.0" / sec.
• Back Gauge Motor: 1/2 hp
• Bending Speed: .6" / sec.
• Main Motor: 10 hp
• Distance Between Housings: 102/124"
• Distance From Table To Ram: 15.3"
• Power: 220V / 3-phase
• Shipping Weight: 16000lbs
• Shipping Dimensions (Inches): 162x69x97
